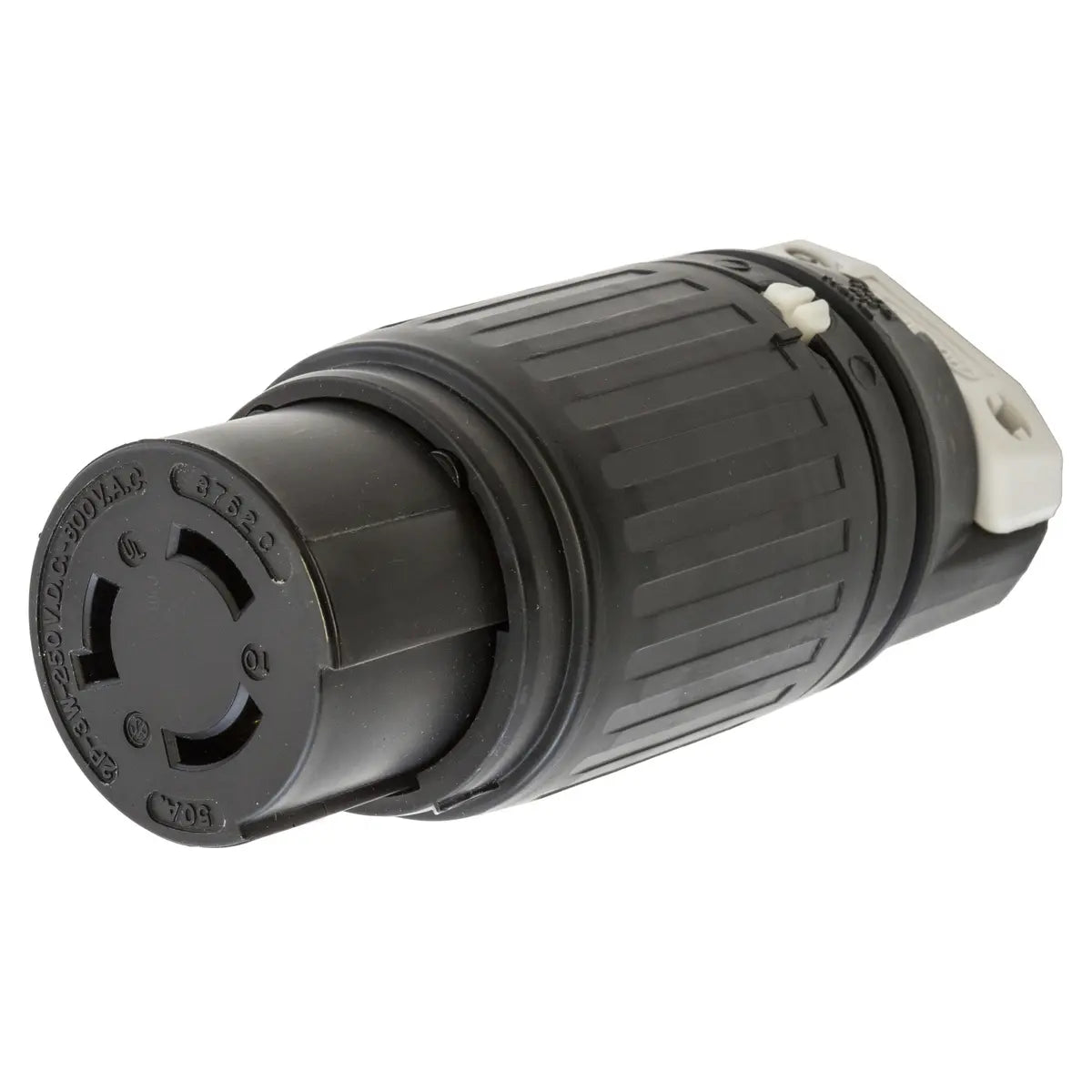

HBL3762C - Hubbell Wiring Device Kellems - 50A Female Connector Twist Lock Locking Device

HubbellSKU: HUBHBL3762C

Price:
Sale price$139.65
Stock:
Sold out

Description

HBL3762C - Hubbell Wiring Device Kellems - 50A Female Connector Twist Lock Locking Device

Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 50A 250V DC/600V AC, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Nylon housing thermoplastic polyester interior, Black

Hubbell’s 50 amp Twist-Lock® devices feature a heavy duty design built for heavy duty applications. These Hubbell 50 amp Twist-Lock plugs and connector bodies are built to go where you need power, even in some of the harshest environments. On the outside, 50 amp plugs and connectors are made of super tough nylon for better impact resistance. On the plug, the stainless steel shroud not only provides protection and durability, but safety as well. That’s because the rigid construction restricts distortion, thus minimizing the possibility of mating incorrect devices. On the inside are the kinds of features that separate Hubbell from all the rest. The cord grip has been designed with offset gripping jaws to securely hold the conductors – not just the cord jacket. Hubbell’s box terminals speed wiring and provide a superior termination. The plug’s thermoplastic polyester interior provides excellent heat resistance without compromising strength. In all, it’s the combination of function and performance that Hubbell demands of all its products. That is why we will never add a feature that compromises performance.

  • Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
  • Heavy duty two-piece external cord clamp provides maximum strain relief
  • Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
  • Thermoplastic polyester interior provides heat resistance and impact strength
  • Oversized contacts minimize operating temperature

Standard Product

GENERAL SPECIFICATION

Application Heavy Duty Industrial
Catalog Number HBL3762C
Color Black, White
Cord Range .830"-1.250" (21.08-31.75)
Environmental Conditions Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator No
Insulation Insulated Body
Item Type 50A Insulgrip® Connector
Material Nylon
Material - Mounting Hardware Cord Mounted
OEM Brand Name Hubbell Wiring Device-Kellems
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - HB or better
  • Environmental - Operating Temperatures - Maximum continuous 75°C minimum –40°C (w/o impact)
  • Mechanical - Terminal Accommodation - #10 AWG - #6 AWG stranded copper wire only
Specifications
  • Contacts - Brass
  • Cord Grip - Polyester
  • Housing - Nylon
  • Terminal Retainer - Thermoplastic polyester
  • Terminal Screws - Stainless Steel
Type Connector Body
UPC 783585235554



Dimensions

Dimensions 2.56 in x 2.56 in x 6.50 in
Display Size Standard
Height 6.5 in
Length 2.56 in
Weight 1 lb
Width 2.56 in



Electrical Ratings

Amperage Rating 50 A
Connectivity Pressure Terminal Screws
Current / Amperage Rating 50 A
Current Rating 50 A
Dielectric Strength Withstands 2,000V minimum
Voltage Rating 250 VDC/600 VAC
Voltage Rating Description 250 VDC/600 VAC



Conductor Related

Cable Range 0.830 - 1.250 in
Number Of Poles 2-Pole
Number Of Wires 3-Wire
Wire Size #8 AWG to #4 AWG



Operational

Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - HB or better
  • Environmental - Operating Temperatures - Maximum continuous 75°C minimum –40°C (w/o impact)
  • Mechanical - Terminal Accommodation - #10 AWG - #6 AWG stranded copper wire only



Logistics

Carton Quantity 10



PRODUCT DATASHEET

Wiring HBL3762C Specification Sheet
