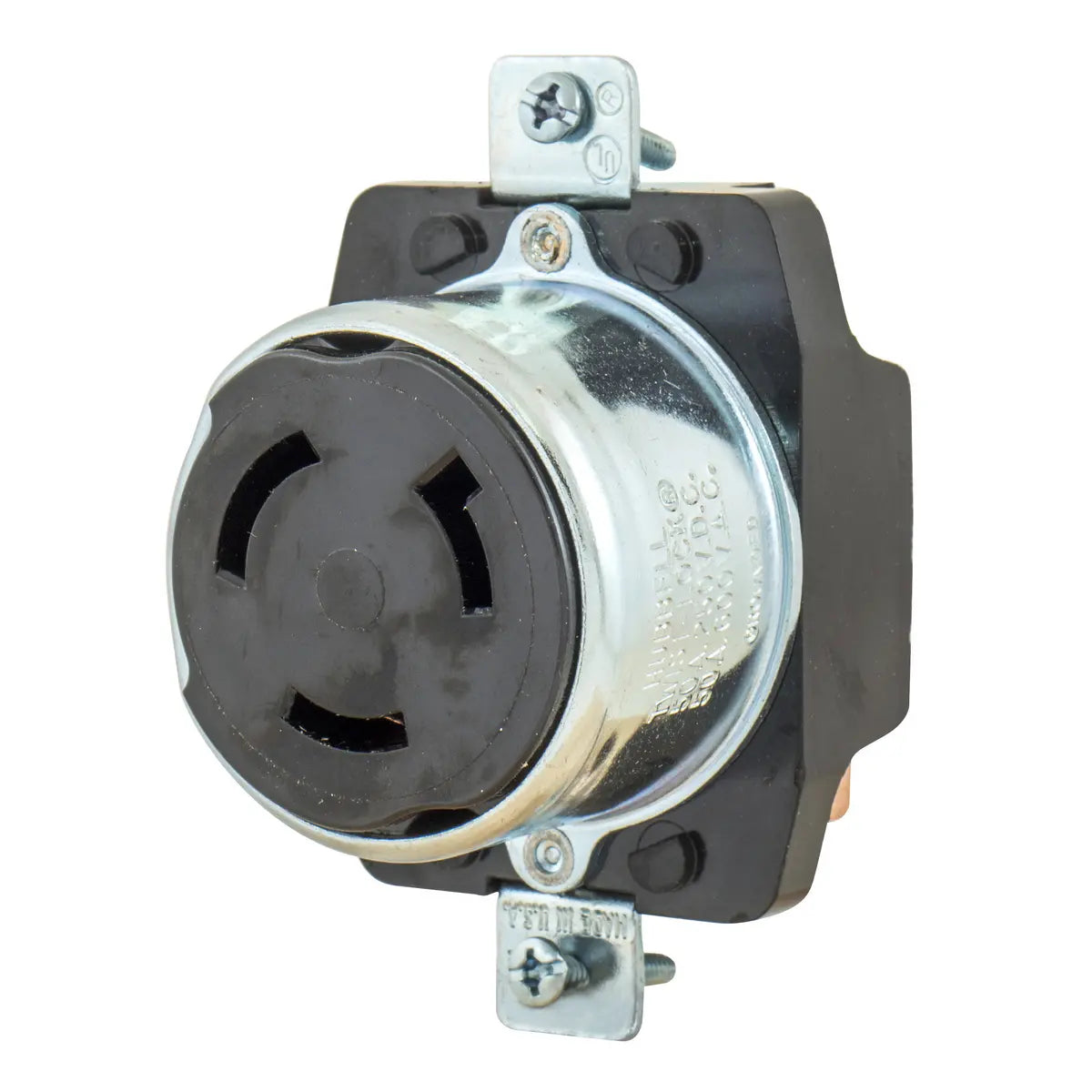

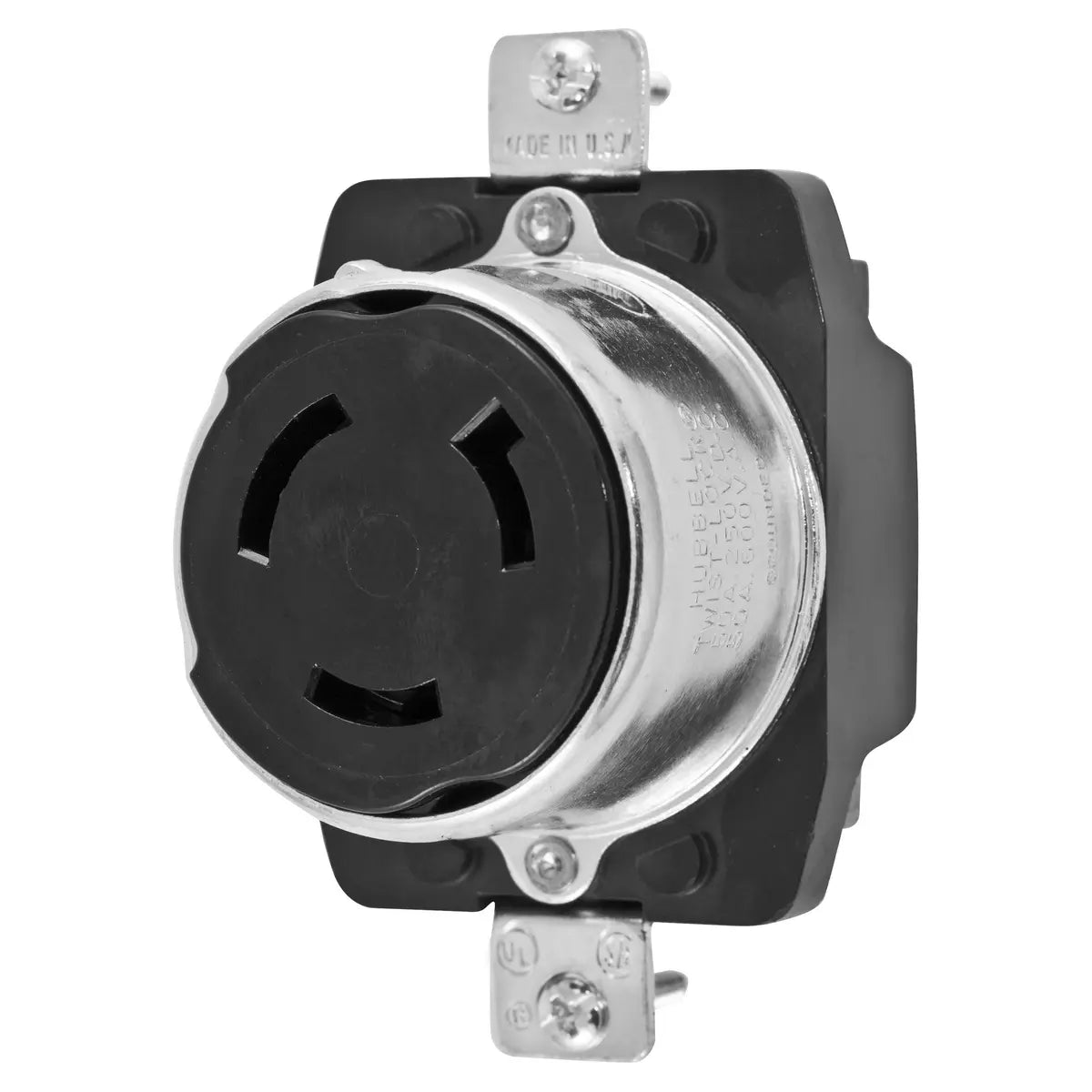

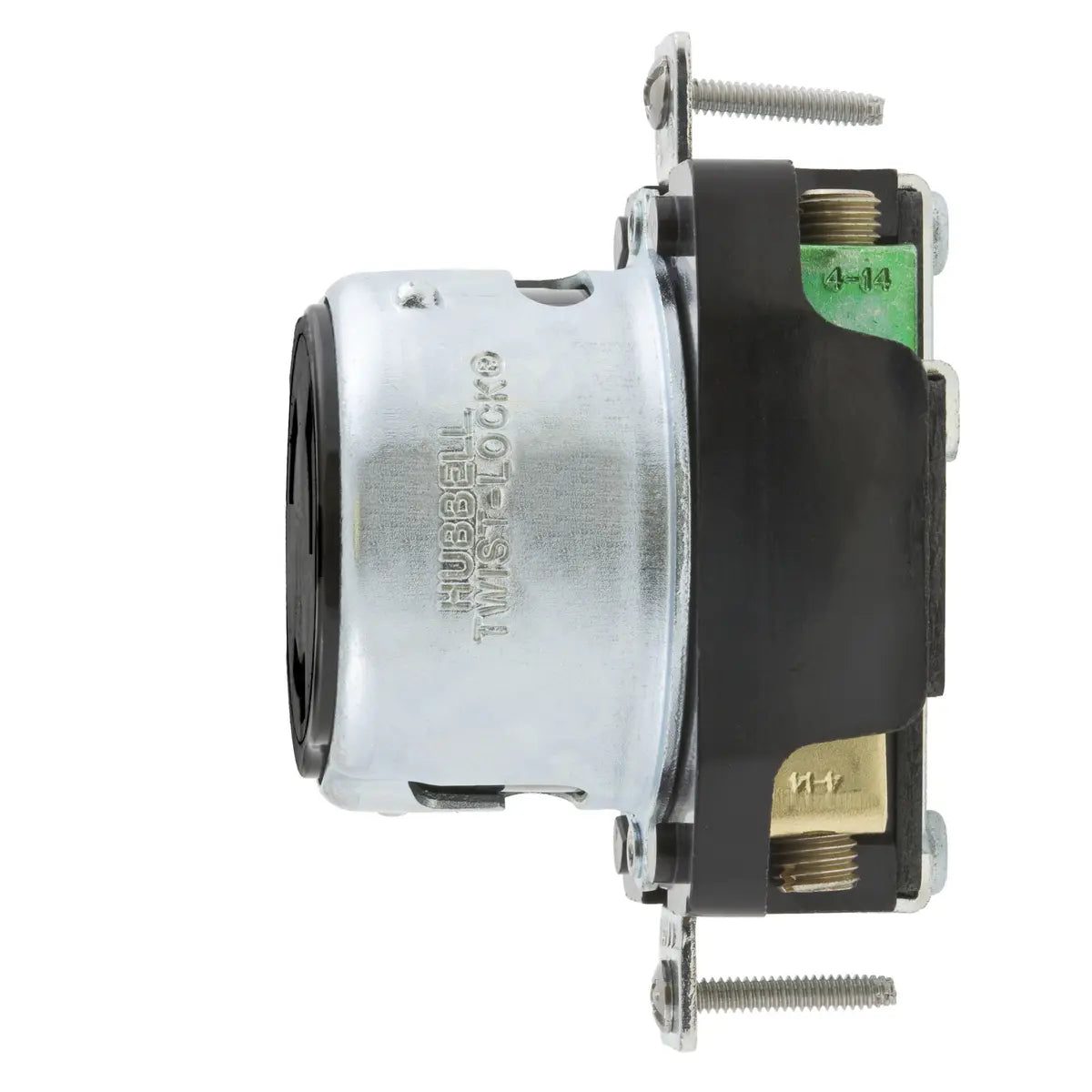

HBL3771 - Hubbell Wiring Device-Kellems - 50A Receptacle Twist Lock Locking Device
Locking Devices, Twist-Lock(R), Industrial, Receptacle, 50A 250V DC/600 V AC, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Phenolic, Black
- Thermoset construction offers high heat resistance
- Armored housing provides superior impact resistance
- One piece contacts provide low operating temperatures
Standard
GENERAL SPECIFICATION
| Catalog Number |
HBL3771 |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
No |
| Item Type |
50A Receptacle |
| Material |
Phenolic |
| Material - Mounting Hardware |
Screw Mounting |
| Number Of Poles |
2-No |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17
- Environmental - Operating Temperatures - Maximum Continuous 75 degC Minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #10 AWG - #6 AWG solid or stranded copper wire only
|
| Specifications |
- Body - Phenolic
- Contacts - Brass
- Face - Phenolic
- Insulator - Phenolic
- Terminal Screws - Steel
|
| Type |
Receptacle |
| UPC |
783585236476 |
Dimensions
| Dimensions |
3.28 in x 2.12 in x 2.36 in |
| Display Size |
Standard Sized Product |
| Height |
2.36 in |
| Length |
3.28 in |
| Weight |
0.75 lb |
| Width |
2.12 in
|
Electrical Ratings
| Amperage Rating |
50 A |
| Connectivity |
Screw Terminals |
| Current / Amperage Rating |
50 A |
| Current Rating |
50 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Multi Phase |
| Voltage Rating |
250 VDC/600 VAC |
| Voltage Rating Description |
250 VDC/600 VAC |
Conductor Related
| Number Of Wires |
3-Wire |
| Wire Size |
#8 AWG to #4 AWG |
