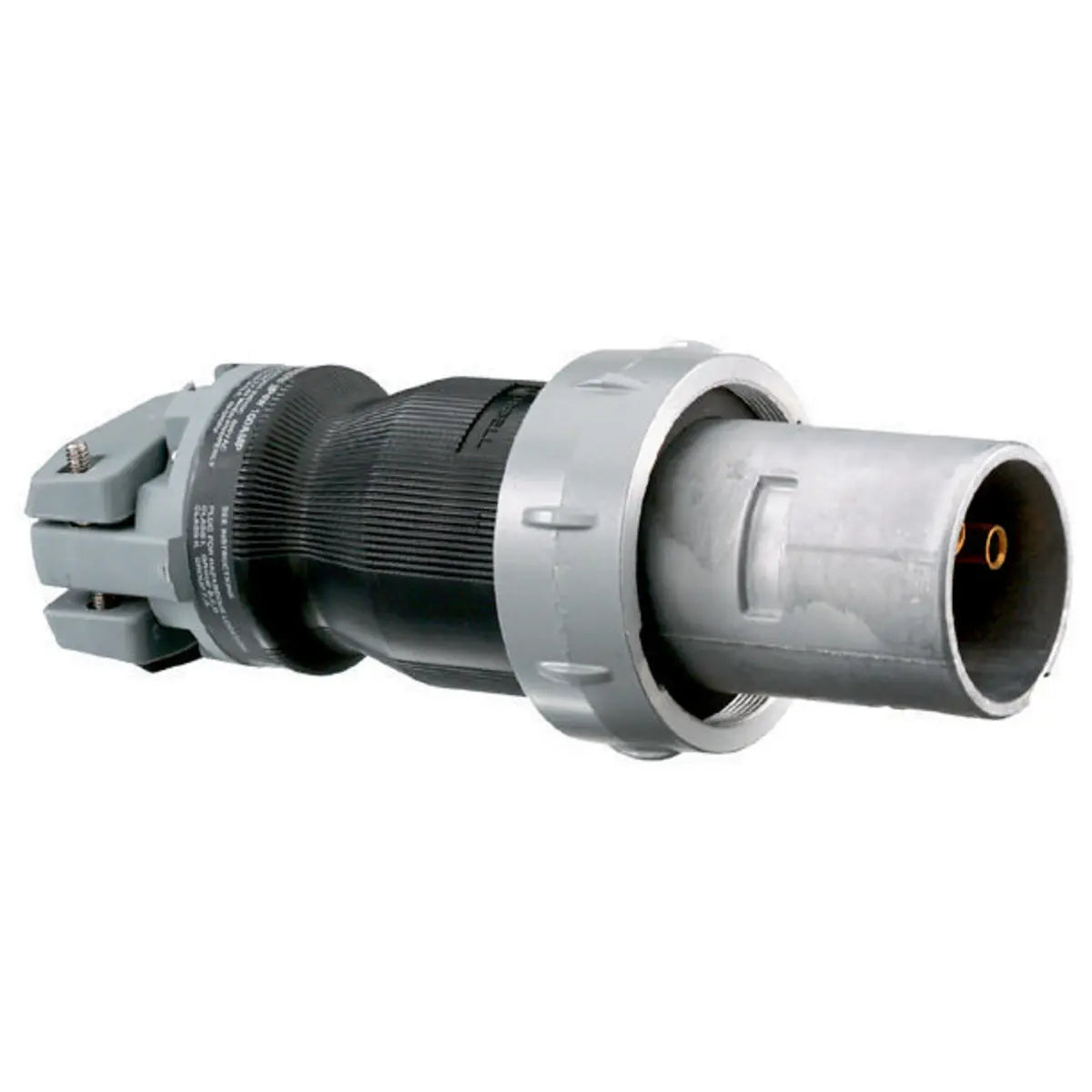

HBL4100PS2W - Hubbell Wiring Device-Kellems - 100A Male Plug Black IEC Pin and Sleeve
Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Male, Plug, 100A 600V AC, 3-Pole 4- Wire Grounding Style 2, Terminal Screws, Gray and Black, Watertight
Metallic where you want It, non-metallic where you need it. Different from traditional all-metallic devices, Hubbell Pin and Sleeve wiring devices are designed to provide metallic shrouding where you want it and a non-metallic housing where you need it. What's more, Hubbell's watertight Insulgrip Pin and Sleeve wiring devices are designed with safety first and foremost. We created the line with plant facility maintenance personnel and a safer industrial work environment in mind. To greatly reduce the likelihood of electrical shock, we developed our exclusive nonmetallic watertight system, meaning that with Hubbell on the job, the mix of electricity and water isn't the threat it once was. So, whether the job calls for a welding outlet in a dry location or a motor disconnect in a wet location, step up to Hubbell Pin and Sleeve wiring devices.
- Locking ring provides UL Type 4X watertight, dust-tight seal
- Catalog number and rating visible while in use
- All-Brass sleeve contacts provide reliable electrical contact
GENERAL SPECIFICATIONS
| Application |
Metallic with Nylon Shroud |
| Catalog Number |
HBL4100PS2W |
| Environmental Conditions |
Watertight |
| EU RoHS Indicator |
No |
| Item Type |
Male Plug |
| Material |
Composite |
| Material - Mounting Hardware |
Cord Mounted |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 3,000V AC
- Electrical - Max. Working Voltage - 600V AC RMS
- Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17
- Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94
- Environmental - Operating Temperatures - Max. Continuous 75 degC
- Min. -40 degC w/o impact -25 deg with impact
- Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682
- Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green)
|
| Series |
UL 1686 Class 1 Insulgrip(R) |
| Specifications |
- Clamp Nut - Nickel Plated Brass
- Gland Cap - Rynite(R) SST35
- Housing - Valox(R) 357
- Plug Shroud - Aluminum
- Retainer - Thermoset Polyester
|
| Style |
Standard Service, Style 2 |
| Type |
Watertight Plug |
| UPC |
783585011080 |
Dimensions
| Display Size |
Standard Sized
|
Electrical Ratings
| Amperage Rating |
100 A |
| Connectivity |
Pressure Terminal Screws |
| Current / Amperage Rating |
100 A |
| Current Rating |
100 A |
| Voltage Rating |
600 VAC/250 VDC |
| Voltage Rating Description |
600V AC/250V DC |
Conductor Related
| Number Of Poles |
3-Pole |
| Number Of Wires |
4-Wire |
| Wire Size |
#4 AWG to #2 AWG |
Operational
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 3,000V AC
- Electrical - Max. Working Voltage - 600V AC RMS
- Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17
- Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94
- Environmental - Operating Temperatures - Max. Continuous 75 degC
- Min. -40 degC w/o impact -25 deg with impact
- Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682
- Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green)
|
Configuration
Logistics
PRODUCT DATASHEET
Wiring HBL4100PS2W Specification Sheet
