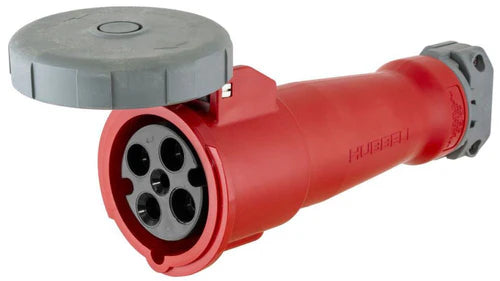

HBL430C7W - Hubbell Wiring Device-Kellems - 30A Female Connector Watertight IEC Pin and Sleeve
The Hubbell HBL430C7W is an industrial-grade IEC Pin and Sleeve Connector. Designed for heavy-duty applications, it features a 30A, 3-phase, 480V AC configuration with a female connector body. This watertight, 3-pole, 4-wire grounding device ensures reliable and secure connections in demanding environments.
GENERAL SPECIFICATIONS
| Application |
High Ampacity Connections |
| Catalog Number |
HBL430C7W |
| Color |
Red |
| Environmental Conditions |
Watertight |
| EU RoHS Indicator |
Yes |
| Insulation |
Insulated Body |
| Item Type |
Standard |
| Material - Mounting Hardware |
Cord Mounted |
| Number Of Poles |
3-No |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - 3000V AC
- Electrical - Max. Working Voltage - 600V RMS
- Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17
- Environmental - Ingress Protection - IP67 Suitability
- Environmental - Moisture Resistance - Watertight per IEC 60309-1
- Environmental - Operating Temperatures - Maximum Continuous 75 degC
- Minimum - 40 degC w/o impact
- Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682
- Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing
- Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
|
| Series |
HBL Heavy Duty |
| Specifications |
- Cord Clamps - Reinforced Thermoplastic Polyester
- Covers - Reinforced Thermoplastic Polyester
- Gaskets - Solid Neoprene
- Glands - Solid Neoprene
- Housing - Zytel(R) ST801 Nylon
|
| Style |
Standard Service |
| Temperature Rating |
Maximum Continuous: 75 degC; Minimum Continuous: -40 degC w/o impact, -25 degC with impact |
| Type |
Watertight Connector Body |
| UPC |
783585404523 |
Dimensions
Electrical Ratings
| Amperage Rating |
30 A |
| Connectivity |
Pressure Terminal Screws |
| Current / Amperage Rating |
30 A |
| Current Rating |
30 A |
| Voltage Rating |
3 Phase 480 VAC |
| Voltage Rating Description |
3 Phase 480 VAC |
Conductor Related
| Conductor Range |
#12 AWG to #8 AWG |
| Number of Conductors |
4-Wire Grounding |
| Number Of Wires |
4-Wire |
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
240 |
PRODUCT DATASHEET
Wiring HBL430C7W Specification Sheet
