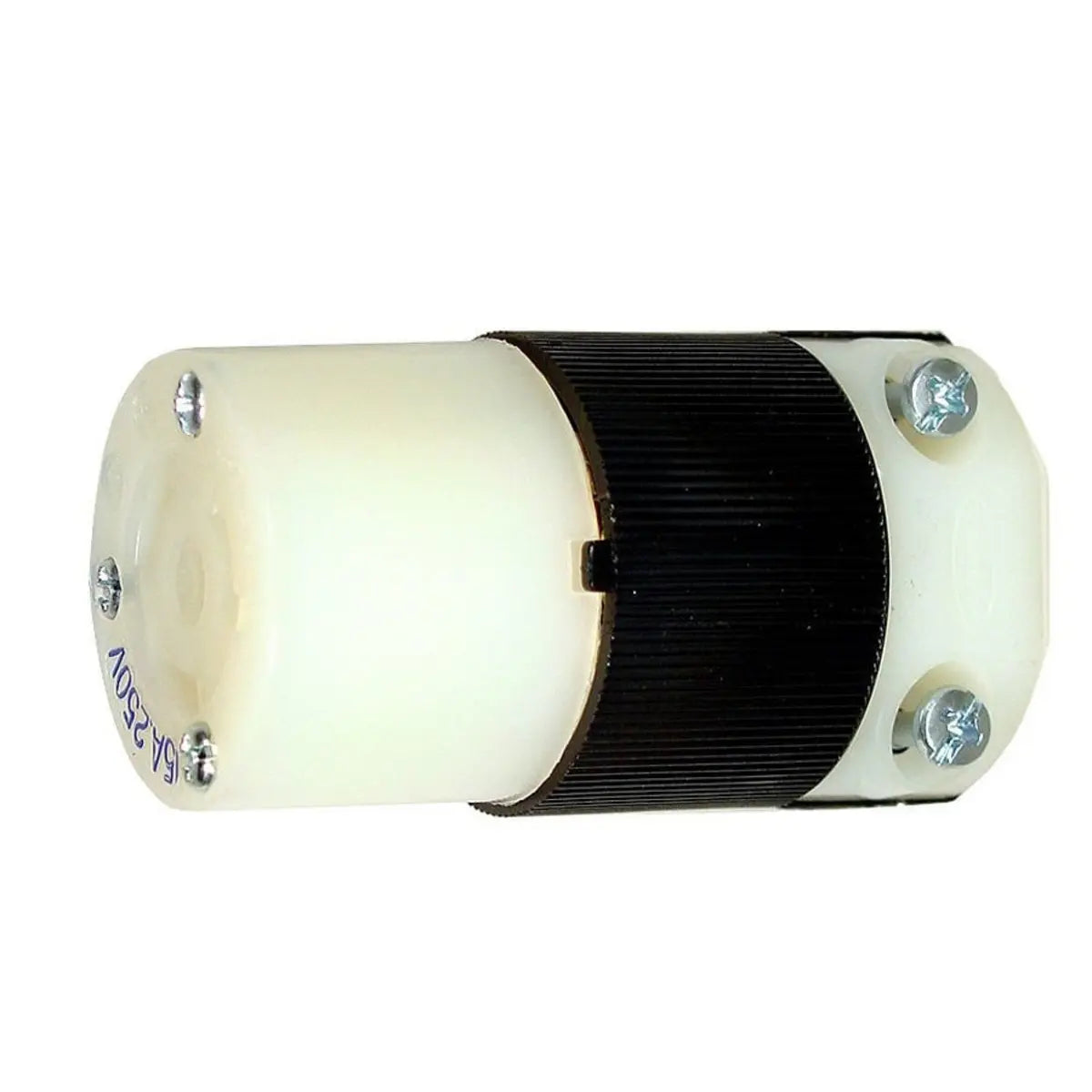

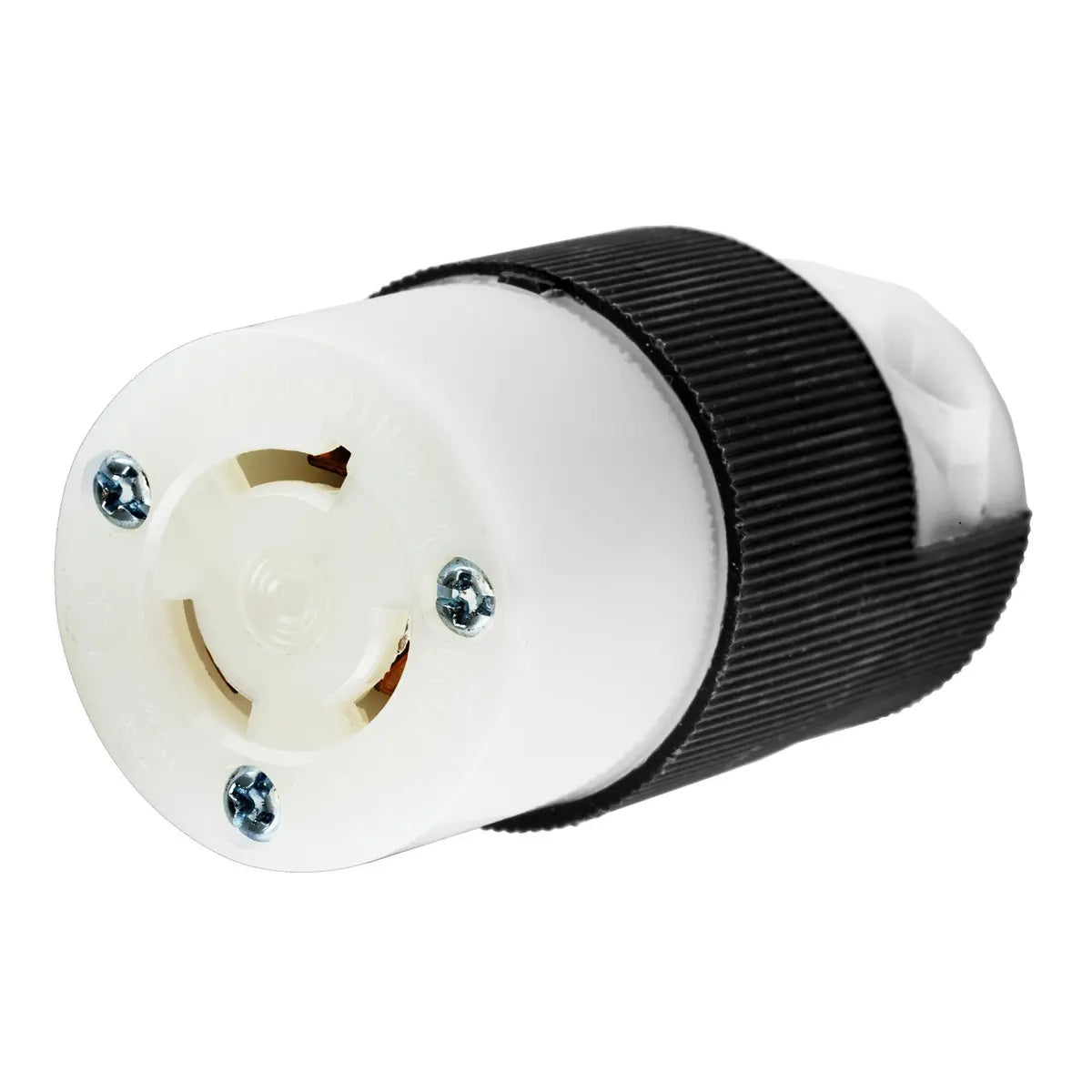

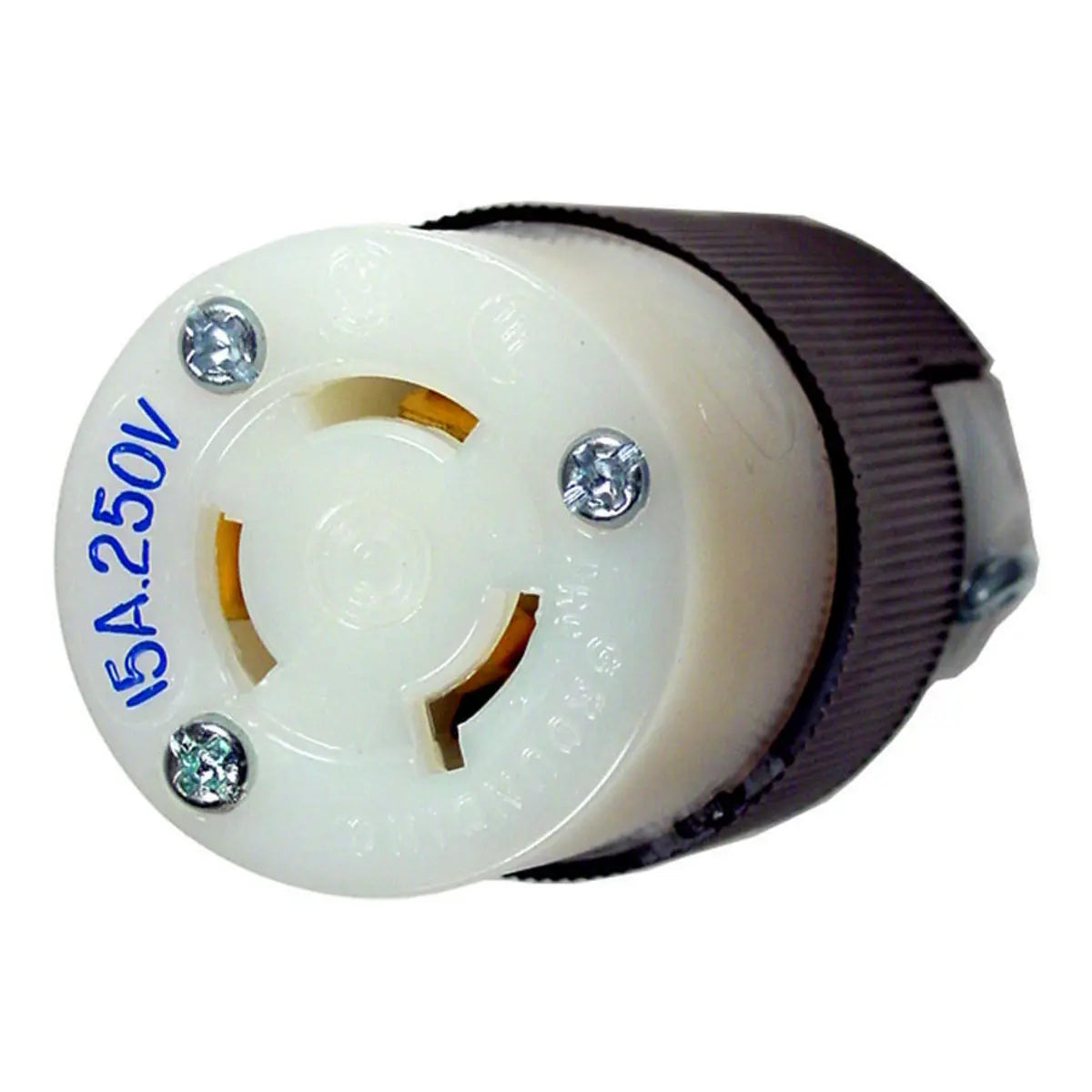

HBL4579C - Hubbell Wiring Device-Kellems - 15A 250V 2 Pole 3 Wire Female Connector Body Twist Lock
Locking Devices, Twist-Lock(R), Industrial, Female Insulgrip(R) Connector Body, 15A 250V, 2-Pole 3-Wire Grounding, NEMA L6-15R, Screw Terminal, Black and White Nylon.
- Ribbed nylon housing provides secure, impact and chemical resistant grip
- Superior cord grip design protects terminations from excess strain
- Integral VARI-SIZE insert accomodates a wide range of cord diameters
Standard Product
GENERAL SPECIFICATION
| Catalog Number |
HBL4579C |
| Color |
Black, White |
| Cord Range |
0.230"-0.720" (5.8-18.3 mm) |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Insulation |
Insulated Body |
| Item Type |
15A Grounding Insulgrip(R) Connector |
| Material |
Nylon |
| Material - Mounting Hardware |
Cord Mounted |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC, Minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75 degC Minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #18 - #10 AWG stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
| Specifications |
- Assembly Screws - Steel - nickel plated
- Contacts - Brass
- Housing / Cord Clamp - Nylon
- Terminal Clamp - Cold rolled steel - nickel plated
- Terminal Retainer - Clear polycarbonate
- Terminal Screws - #8-32 Brass (Phillips / Slotted / Robertson)
|
| Temperature Rating |
Maximum Continuous: 75 degC; Minimum: -40 degC w/o impact, -25 degC with impact |
| Type |
Connector Body |
| UPC |
783585170107 |
Dimensions
| Dimensions |
1.53 in x 1.53 in x 2.78 in |
Electrical Ratings
| Amperage Rating |
15A |
| Connectivity |
Pressure Terminal Screws |
| Current / Amperage Rating |
15 A |
| Current Rating |
15 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Voltage Rating |
250 V |
| Voltage Rating Description |
250 V |
Conductor Related
| Cable Range |
0.230 - 0.720 in |
| Number Of Poles |
2-Pole |
| Number Of Wires |
4-Wire |
| Wire Size |
#18 AWG to #10 AWG
|
Operational
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact
|
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75 degC Minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #18 - #10 AWG stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
| Temperature Rating |
Maximum Continuous: 75 deg C; Minimum Continuous: -40 deg C w/o impact, -25 deg with impact. |
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
3600 |
PRODUCT DATASHEET
Wiring HBL4579C Specification Sheet
