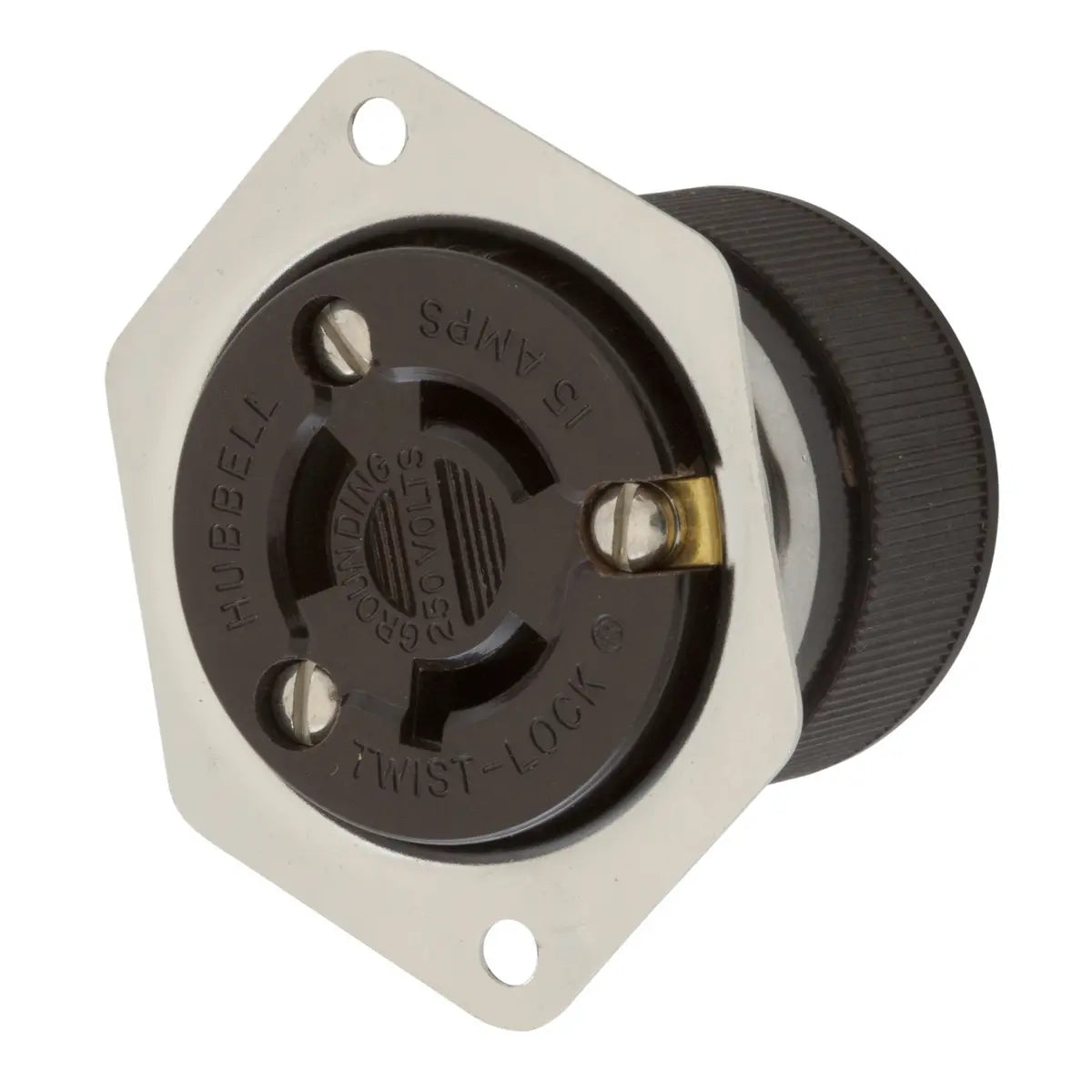

HBL4585 - Hubbell Wiring Device-Kellems - 15A 250V 2 Pole 3 Wire Flanged Receptacle Twist Lock
Locking Devices, Twist-Lock®, Industrial, Flanged Receptacle, 15A 250V, 2-Pole 3-Wire Grounding, NEMA L6-15R, Screw Terminal, Stainless steel casing, Black/Stainless.
- Heat resistant thermoset construction
- Stainless steel casing
- #8-32 terminal screws
- Mounting screws included
Metallic Flange
GENERAL SPECIFICATIONS
| Catalog Number |
HBL4585 |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Item Type |
15A Stainless Steel Flanged Receptacle |
| Material |
Stainless Steel |
| Material - Mounting Hardware |
Screw Mounting |
| Number Of Poles |
2-Pole |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
- Mechanical - Terminal Accommodation - #18 AWG - #10 AWG solid or stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
| Specifications |
- Blades - Brass
- Flange - Stainless steel
- Mounting Screw - Nickel plated brass
- Terminal Screws - Brass
|
| Type |
Flanged Receptacle |
| UPC |
783585236698 |
Dimensions
| Dimensions |
2.31 in x 1.75 in x 1.36 in |
| Display Size |
Standard Sized Product |
| Height |
1.36 in |
| Length |
2.31 in |
| Weight |
0.15 lb |
| Width |
1.75 in |
Electrical Ratings
| Amperage Rating |
15 A |
| Connectivity |
Screws Terminal |
| Current / Amperage Rating |
15 A |
| Current Rating |
15 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Single Phase |
| Voltage Rating |
250 V |
| Voltage Rating Description |
250 V |
Conductor Related
| Number Of Poles |
2-Pole |
| Number Of Wires |
3-Wire |
| Wire Size |
#18 AWG to #10 AWG |
Operational
| Operating Temperature
|
Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
- Mechanical - Terminal Accommodation - #18 AWG - #10 AWG solid or stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
