Description

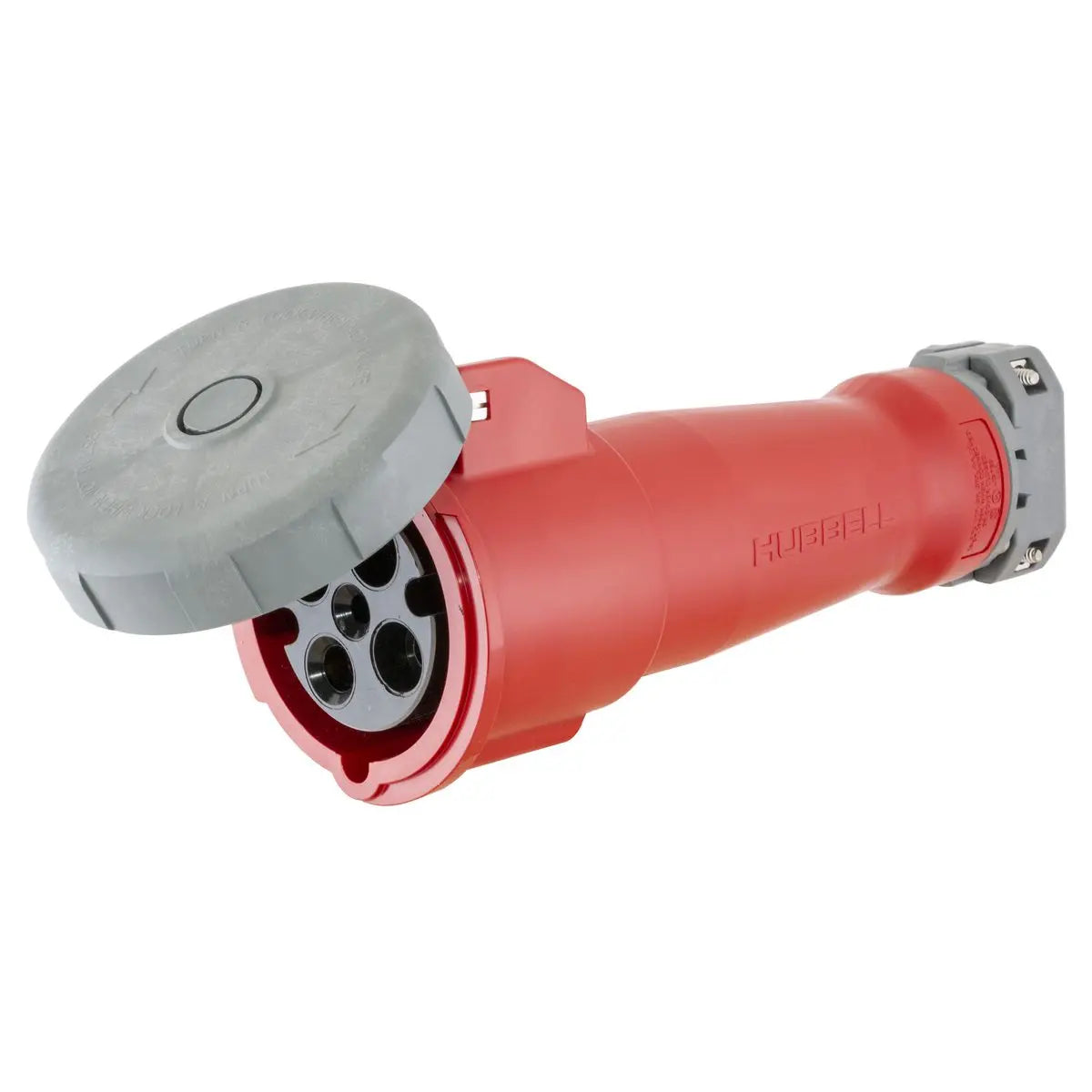

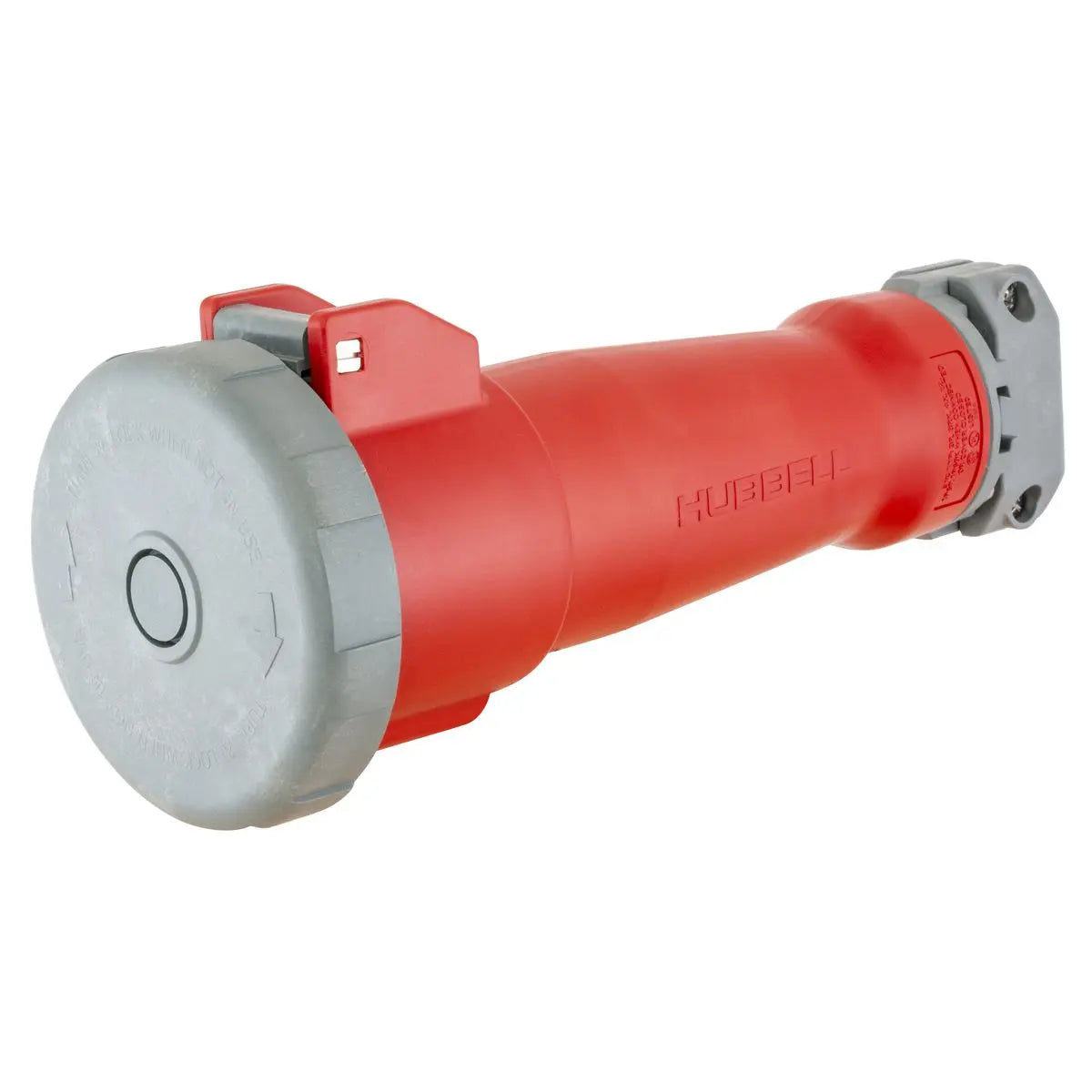

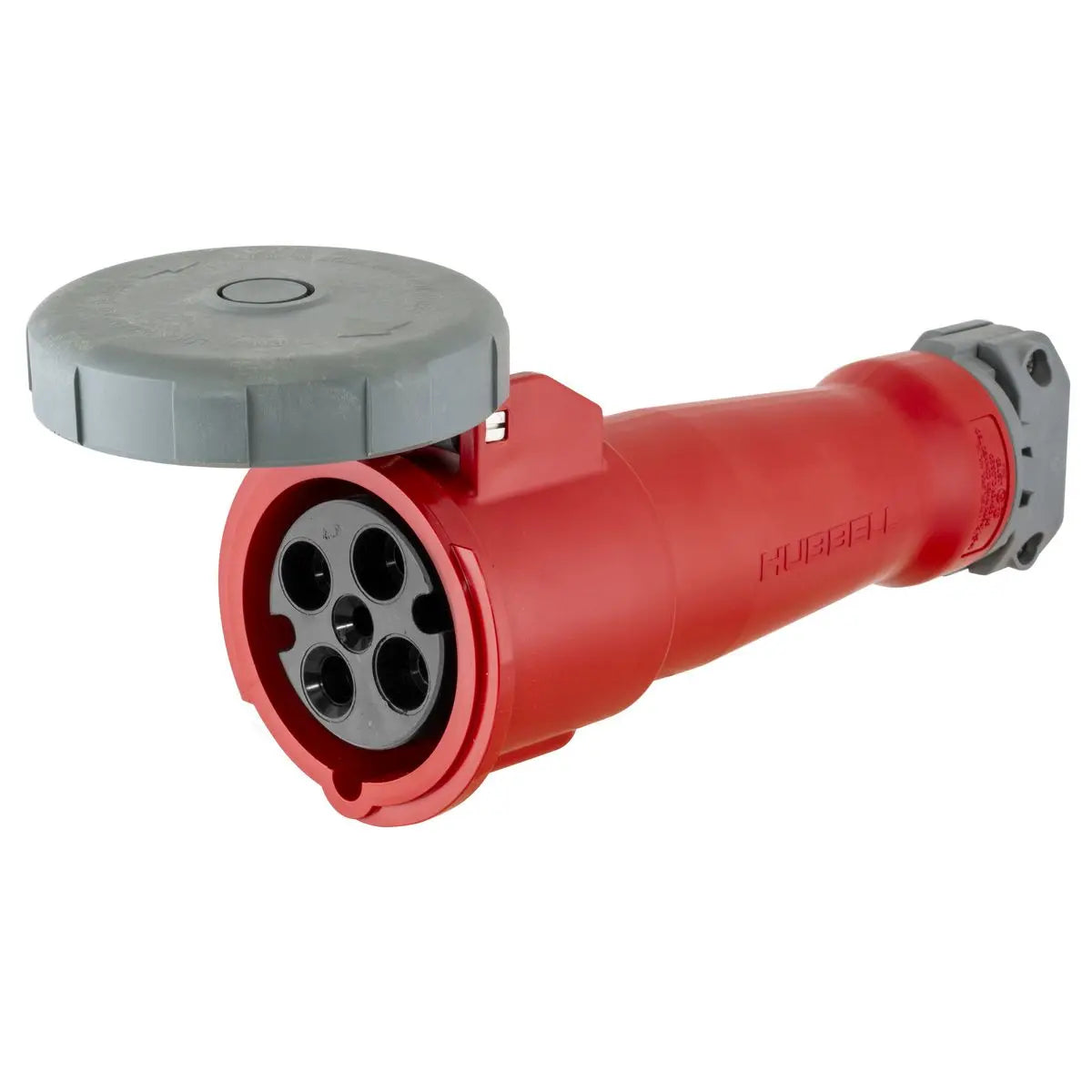

HBL460C7W - Hubbell Wiring Device-Kellems - 60A 480V AC 3 Phase Female Connector Body Watertight IEC Pin and Sleeve
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 60A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Red, Watertight
Watertight Devices - Hubbell’s IEC 60309 Pin and Sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL® series of IEC pin and sleeve were designed for the demanding North American market. Hubbell was the first and is still only manufacturer of IEC 60309 devices in the USA and have numerous innovative features noted below. The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy-duty, external cord grip provides superior strain relief on the conductors. Hubbell’s horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting “line of sight” disconnecting means.
- Self-closing gasketed cover
- Color coded housings for easy identification
- Super tough insulated non-metallic housing
Watertight
GENERAL SPECIFICATION
| Application | High Ampacity Connections |
| Catalog Number | HBL460C7W |
| Color | Red |
| Environmental Conditions | Watertight |
| EU RoHS Indicator | Yes |
| Insulation | Insulated Body |
| Item Type | Standard |
| Material - Mounting Hardware | Cord Mounted |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance |
|
| Series | HBL Heavy Duty |
| Specifications |
|
| Style | Standard Service |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Type | Watertight Connector Body |
| UPC | 783585404806 |
Dimensions
| Display Size | Standard |
Electrical Ratings
| Amperage Rating | 60 A |
| Connectivity | Pressure Terminal Screws |
| Current / Amperage Rating | 60 A |
| Current Rating | 60 A |
| Voltage Rating | 3 Phase 480 VAC |
| Voltage Rating Description | 3 Phase 480 VAC |
Conductor Related
| Conductor Range | #8 AWG to #2 AWG |
| Number of Conductors | 4-Wire Grounding |
| Number Of Poles | 3-Pole |
| Number Of Wires | 4-Wire |
Operational
| Performance |
|
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
Logistics
| Carton Quantity | 10 |
| Pallet Quantity | 180 |
