HBL460MIF7W - Hubbell - 60A 3-Phase Delta 480V AC Female Mechanically Interlocked Receptacle Heavy Duty Products
Heavy Duty IEC Pin and Sleeve Industrial Grade Female Fused Mechanically Interlocked Receptacle, 60A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Terminal

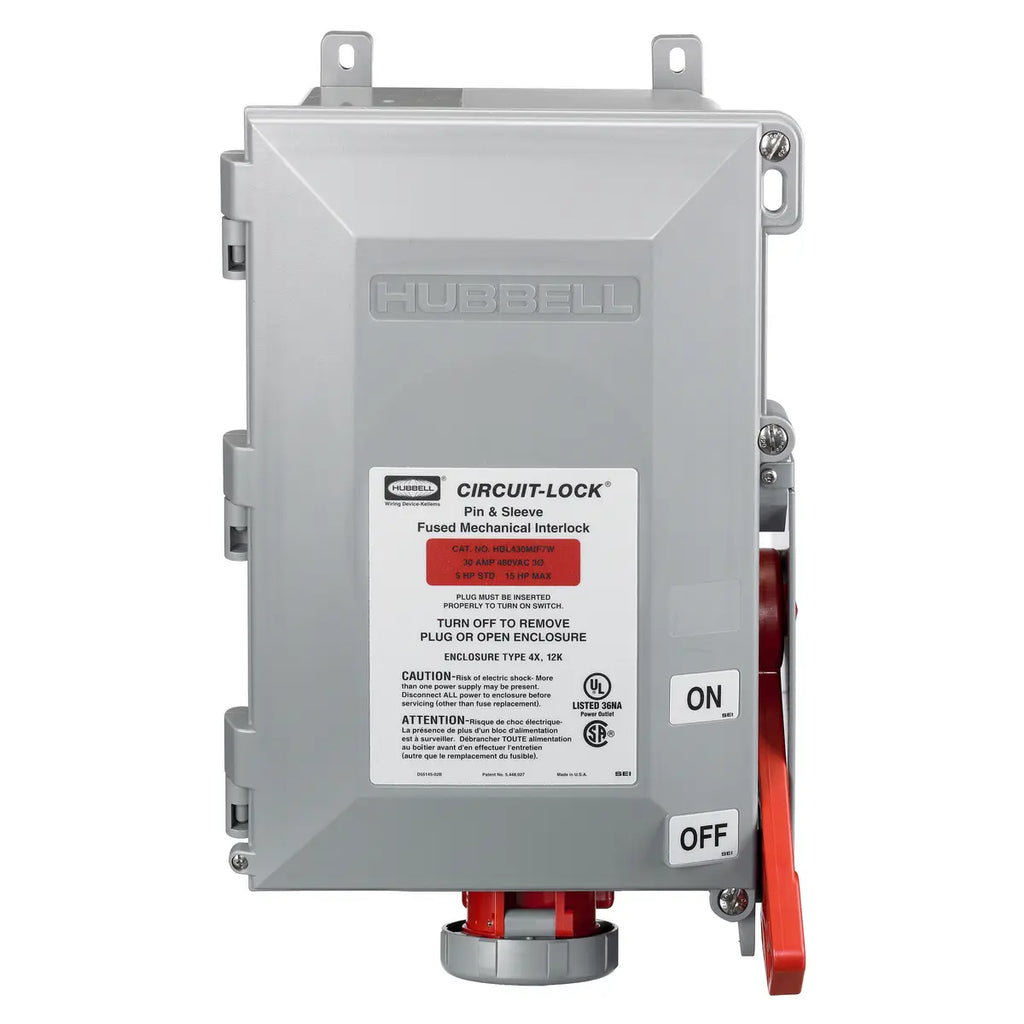

Fused Circuit-Lock(R) Pin and Sleeve Mechanical Interlocks - Hubbell Circuit-Lock(R) Pin and Sleeve mechanical Interlocks are a revolutionary design that incorporates a disconnect switch and pin and sleeve receptacle in a compact non-metallic unit. These devices offer maximum safety by preventing users from mating or breaking a circuit under load-Hubbell's interlock mechanism detects the presence of a plug and prevents it from being removed when the switch is in the "ON" position. It features a high visibility red handle that can be locked in the OFF position to meet OSHA lockout/tagout regulations. The enclosure door can be locked to prevent unauthorized access. The rugged, corrosion-resistant Type 4X PBT enclosure features adjustable mounting feet for flexible installation, while the receptacle's springloaded cover with gasket is dust tight and provides a watertight seal when turned and locked. The patented Plug-Check(TM) mechanism detects the presence of the plug. It operates as a clutch to engage the handle with the switch and captures the plug. This action prevents the plug from being removed until the switch is turned OFF.
- Replaceable spring-loaded receptacle liftcover with gasket
- Removable door for ease of wiring and installation
- Plug-Check(TM) mechanism to detect the presence of plug
Watertight
General
| Application |
High Ampacity Watertight Connections |
| Catalog Number |
HBL460MIF7W |
| Color |
Red |
| Environmental Conditions |
Watertight |
| EU RoHS Indicator |
No |
| Item Type |
Fused Mechanically Interlocked Single |
| Material |
Thermoplastic |
| Material - Mounting Hardware |
Screw Mounting |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage
- Electrical - Dielectric Voltage - Withstands 3,000V AC Min
- Electrical - Max Working Voltage - 600V AC
- Environmental - Flammability - UL94-5VA and V-0 Classification
- Environmental - Ingress Protection - IP66 Suitability
- Environmental - Operating Temperatures - Max. Continuous +75 degC
- Min. Continuous -40 degC
- Environmental - UV Resistance - All materials are UV stabilized
- Mechanical - Impact Resistance - In accordance with UL 746C
- Mechanical - Mounting - External adjustment feet
- Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
|
| Series |
Fused |
| Specifications |
- Base - Valox(R)
- Conduit Hub - Zinc
- Enclosure Gasket - Neoprene
- Face - Valox(R)
- Shaft Seal - Neoprene
|
| Style |
Standard Service |
| Type |
Mechanical Interlock |
| UPC |
783585406022 |
Dimensions
| Display Size
|
Standard Sized Product |
Electrical Ratings
| Amperage Rating |
60 A |
| Connectivity |
Pressure Terminal Screws |
| Current / Amperage Rating |
60 A |
| Current Rating |
60 A |
| Phase |
Three Phase |
| Voltage Rating |
3 Phase 480 VAC |
| Voltage Rating Description |
3 Phase 480 VAC |
| Wattage |
28800 |
Conductor Related
| Number Of Poles |
3-Pole |
| Number Of Wires |
4-Wire |
| Wire Size |
#14 AWG to #10 AWG |
Operational
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage
- Electrical - Dielectric Voltage - Withstands 3,000V AC Min
- Electrical - Max Working Voltage - 600V AC
- Environmental - Flammability - UL94-5VA and V-0 Classification
- Environmental - Ingress Protection - IP66 Suitability
- Environmental - Operating Temperatures - Max. Continuous +75 degC
- Min. Continuous -40 degC
- Environmental - UV Resistance - All materials are UV stabilized
- Mechanical - Impact Resistance - In accordance with UL 746C
- Mechanical - Mounting - External adjustment feet
- Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
|
Logistics
| Carton Quantity |
1 |
| Pallet Quantity |
35 |
