HBL4700 - Hubbell Wiring Device-Kellems - 15A 125V 2 Pole 3 Wire Grounding Locking Devices Screw Terminal Twist Lock

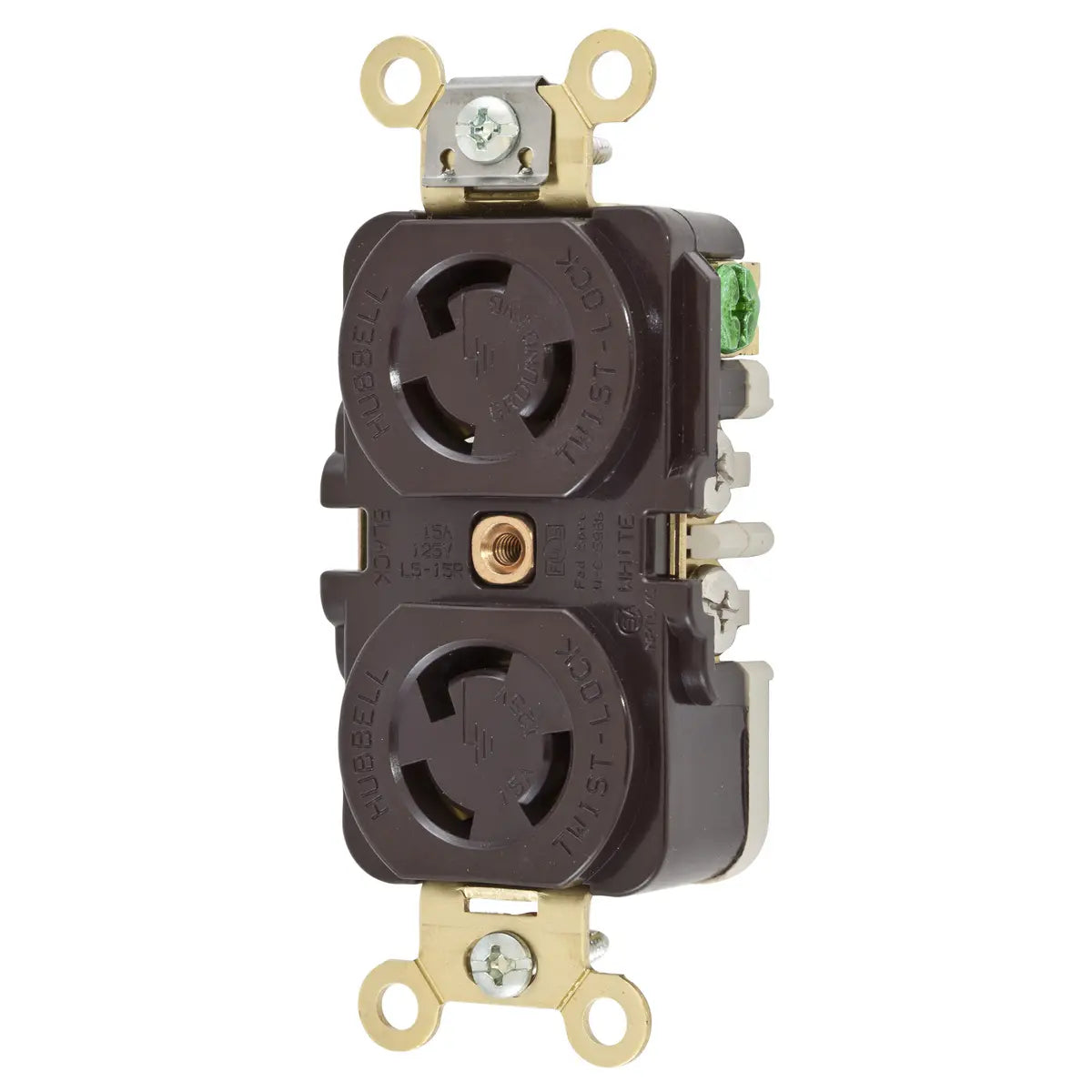

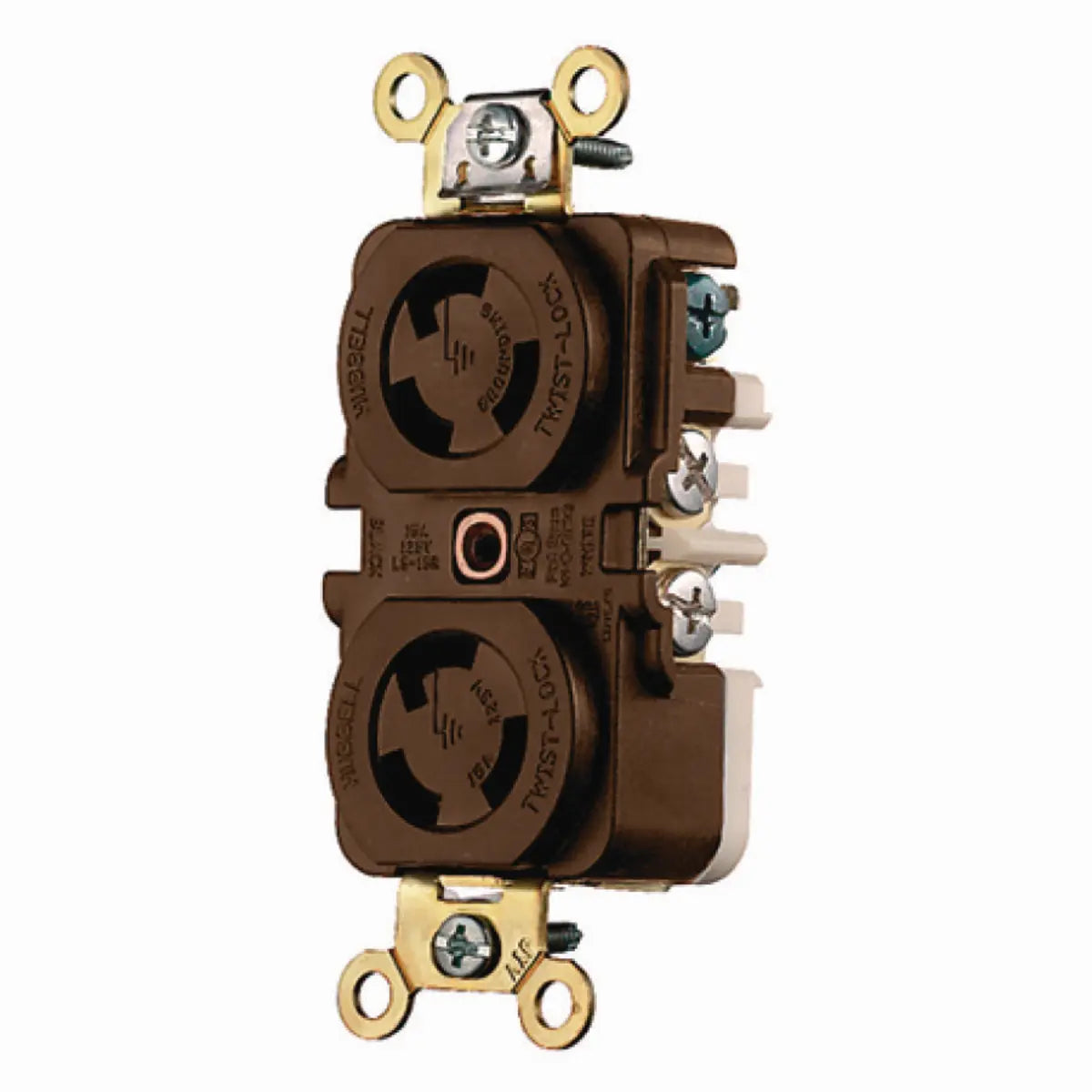

Locking Devices, Twist-Lock(R), Industrial, Duplex Flush Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, NEMA L5-15R, Screw Terminal, Brown.
- Reinforced thermoplastic construction
- Single piece, all brass contacts
- Single point break-off tabs
- Mounting strap tabs lock the body and base together
Self Grounding
GENERAL SPECIFICATIONS
| Catalog Number |
HBL4700 |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Horsepower - Maximum |
0.5 |
| Item Type |
15A Duplex Flush Receptacle |
| Material |
Thermoplastic |
| Material - Mounting Hardware |
Screw Mounting |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
- Environmental - Operating Temperatures - Maximum Continuous 75 degC, Minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #18 AWG - #10 AWG solid or stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
| Specifications |
- Base - RTP
- Clamp - Brass
- Contacts - Brass
- Face - RTP
- Ground Contact - Brass
- Terminal Screws - Brass
|
| Type |
Receptacle |
| UPC |
783585002309 |
Dimensions
| Dimensions |
3.29 in x 1.70 in x 1.17 in
|
| Display Size |
Standard Sized Product |
| Height |
1.17 in
|
| Length |
3.29 in |
| Weight |
0.25 lb |
| Width |
1.7 in |
Electrical Ratings
| Amperage Rating |
15 A |
| Connectivity |
Back and Side Wired |
| Current / Amperage Rating |
15 A |
| Current Rating |
15 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Single Phase |
| Voltage Rating |
125 V |
| Voltage Rating Description |
125 V |
Conductor Related
| Number Of Poles |
2-Pole |
| Number Of Wires |
3-Wire |
| Wire Size |
#18 AWG to #10 AWG |
Operational
| Horsepower - Maximum |
0.5 |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
- Environmental - Operating Temperatures - Maximum Continuous 75 degC, Minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #18 AWG - #10 AWG solid or stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
5500 |
