Description

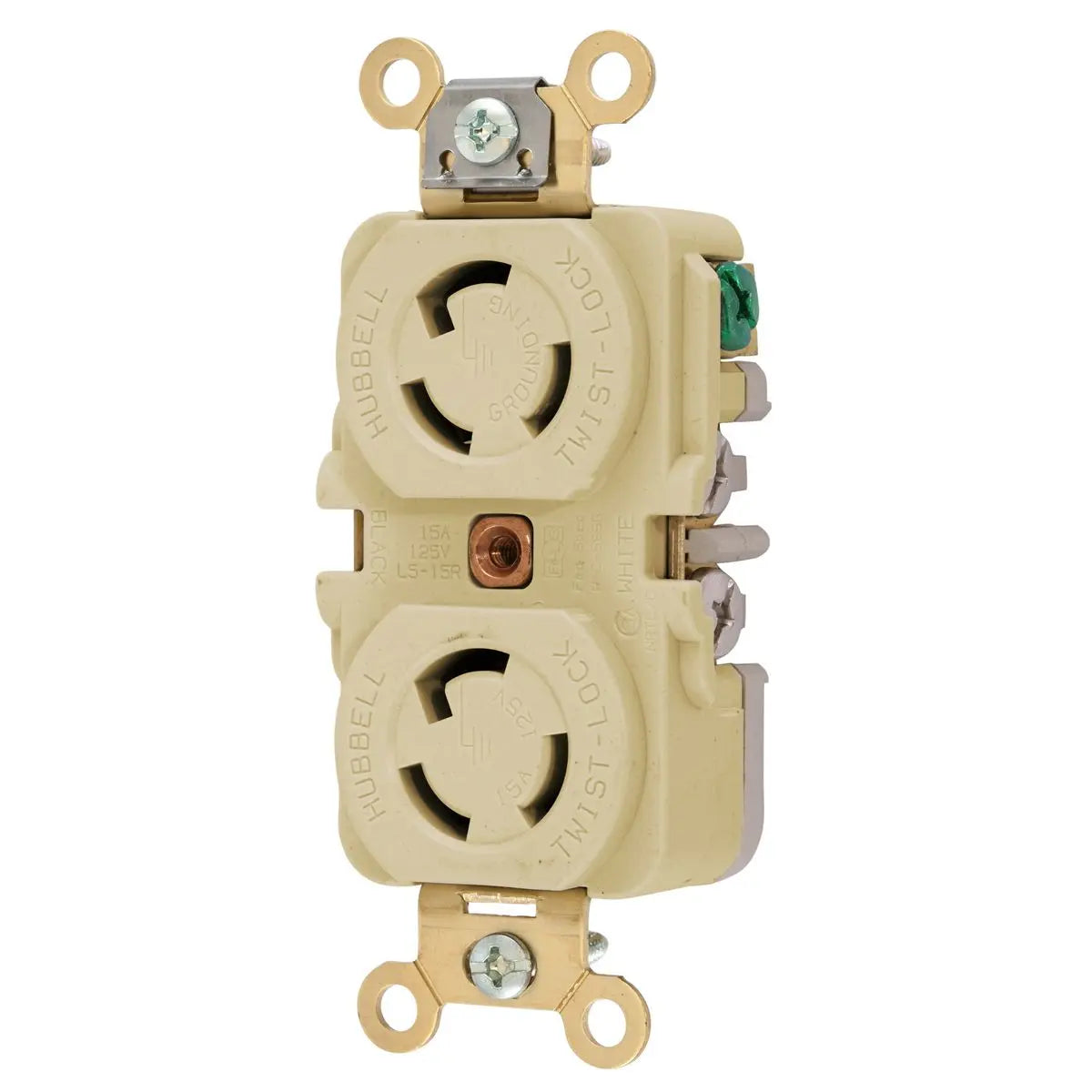

HBL4700I - Hubbell Wiring Device-Kellems - 15A 125V 2 Pole 3 Wire Duplex Receptacle Ivory Twist Lock
Twist-Lock® Industrial Duplex Flush Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, NEMA L5-15R, Screw Terminal
- Reinforced thermoplastic construction
- Single piece, all brass contacts
- Single point break-off tabs
- Mounting strap tabs lock the body and base together
Self Grounding
GENERAL SPECIFICATIONS
| Catalog Number | HBL4700I |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator | Yes |
| Horsepower - Maximum | 0.5 |
| Item Type | 15A Duplex Flush Receptacle |
| Material | Thermoplastic |
| Material - Mounting Hardware | Screw Mounting |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
| Specifications |
|
| Type | Receptacle |
| UPC | 783585002323 |
Dimensions
| Dimensions | 3.29 in x 1.70 in x 1.17 in |
| Display Size | Standard Sized Product |
| Height | 1.17 in |
| Length | 3.29 in |
| Weight | 0.3 lb |
| Width | 1.7 in |
Electrical Ratings
| Amperage Rating | 15 A |
| Connectivity | Back and Side Wired |
| Current / Amperage Rating | 15 A |
| Current Rating | 15 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Phase | Single Phase |
| Voltage Rating | 125 V |
| Voltage Rating Description | 125 V |
Conductor Related
| Number Of Poles | 2-Pole |
| Number Of Wires | 3-Wire |
| Wire Size | #18 AWG to #10 AWG |
Operational
| Horsepower - Maximum | 0.5 |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
Logistics
| Carton Quantity | 10 |
