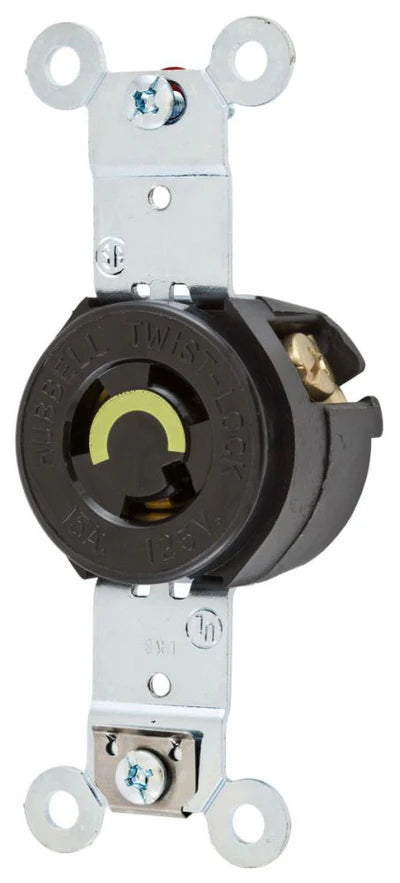

HBL4710 - Hubbell Wiring Device-Kellems - 15A 125V 2 Pole 3 Wire Flanged Inlet Twist Lock
The Hubbell HBL4710 is an Industrial Locking Devices Twist-Lock(R) Flush Receptacle. It features a 15A 125V capacity with a 2-Pole 3-Wire Grounding system and NEMA L5-15R configuration. Designed for durability, it includes a ring terminal connection and comes in a sleek black finish, ideal for secure and reliable electrical connections.
GENERAL SPECIFICATIONS
| Amperage Rating | 15 A |
| Color | Black |
| Dimensions | 3.28 x 1.53 x 1.27 in |
| Grade | Industrial |
| Horsepower | 1/2 hp |
| Material | Nylon |
| NEMA Rating | L5-15R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Series | HBL(R) |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Screw |
| Type | 1-Phase Heavy Duty Single Screw Mount |
| Voltage Rating | 125 VAC |
