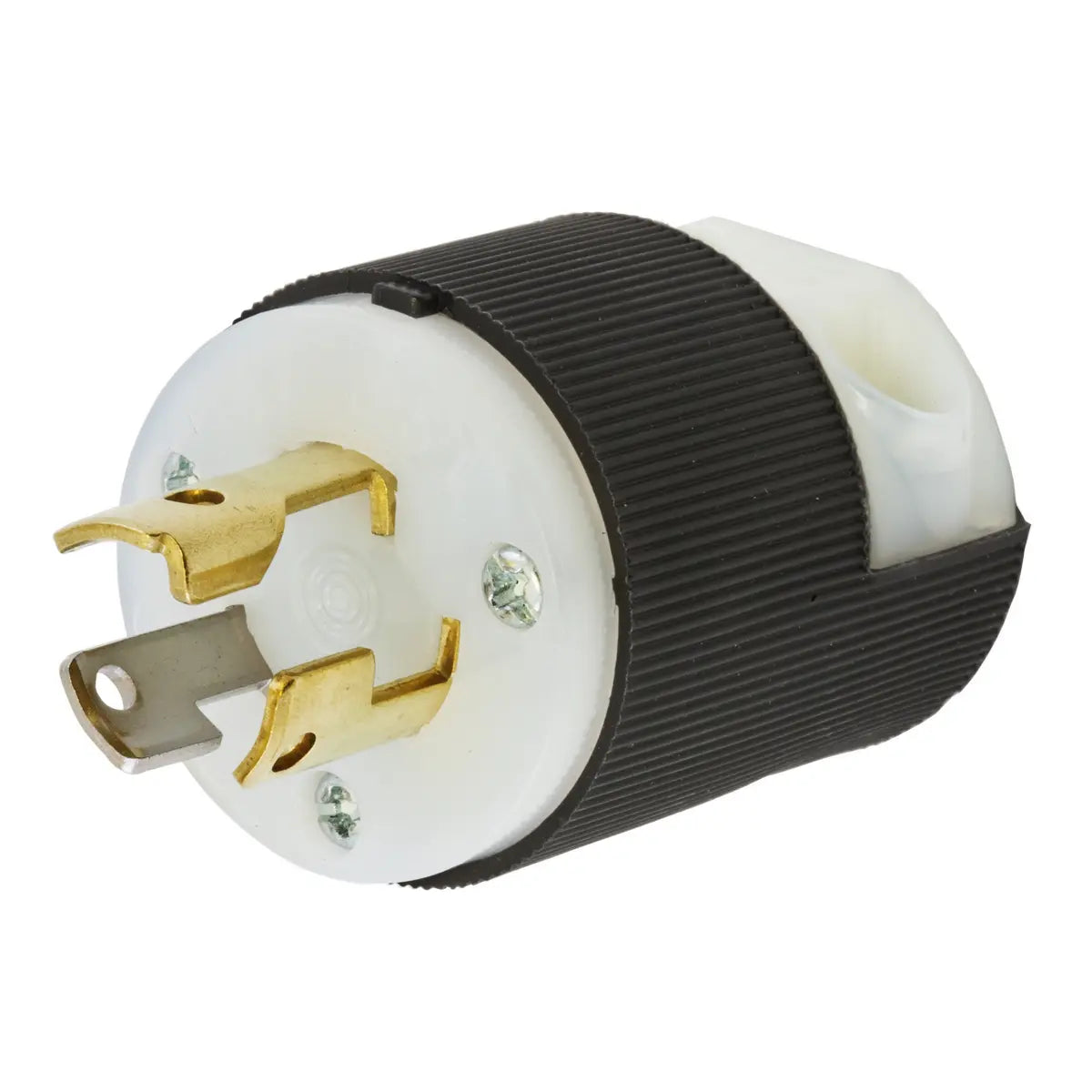

HBL4720C - Hubbell Wiring Device-Kellems - 15A 125V 2 Pole 3 Wire Grounding Locking Devices Female Connector Body Screw Terminal Twist Lock
Locking Devices, Twist-Lock(R), Industrial, Male Insulgrip(R) Plug, 15A 125V, 2-Pole 3-Wire Grounding, NEMA L5-15P, Screw Terminal, Black and White Nylon.
- Individually molded face for each blade configuration
- Roomy wiring chamber provides ample space for wiring
- Ribbed nylon housing provides a secure grip that's impact and chemical resistant
Standard Product
GENERAL SPECIFICATIONS
| Catalog Number |
HBL4720C |
| Color |
Black, White |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Item Type |
15A Grounding Insulgrip(R) Plug |
| Material |
Nylon |
| Material - Mounting Hardware |
Cord Mounted |
| Number Of Poles |
2-Pole |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Specifications |
- Assembly Screws - Steel - nickel plated
- Blades - Brass
- Housing / Cord Clamp - Nylon
- Terminal Clamp - Cold rolled steel - nickel plated
- Terminal Retainer - Clear polycarbonate
- Terminal Screws - #8-32 Brass (Phillips / Slotted / Robertson)
|
| Type |
Plugs |
| UPC |
783585171159 |
Dimensions
| Dimensions |
1.53 in x 1.53 in x 1.97 in |
| Display Size |
Standard Sized
|
| Height |
1.97 in |
| Length |
1.53 in |
| Weight |
0.15 lb |
| Width |
1.53 in |
Electrical Ratings
| Amperage Rating |
15 A |
| Connectivity |
Pressure Terminal Screws |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Single Phase |
| Voltage Rating |
125 V |
Conductor Related
| Cable Range |
0.230 - 0.720 in |
| Cord Type |
All Listed Portables |
| Number Of Wires |
3-Wire |
| Wire Size |
#16 AWG to #8 AWG |
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
3600 |
