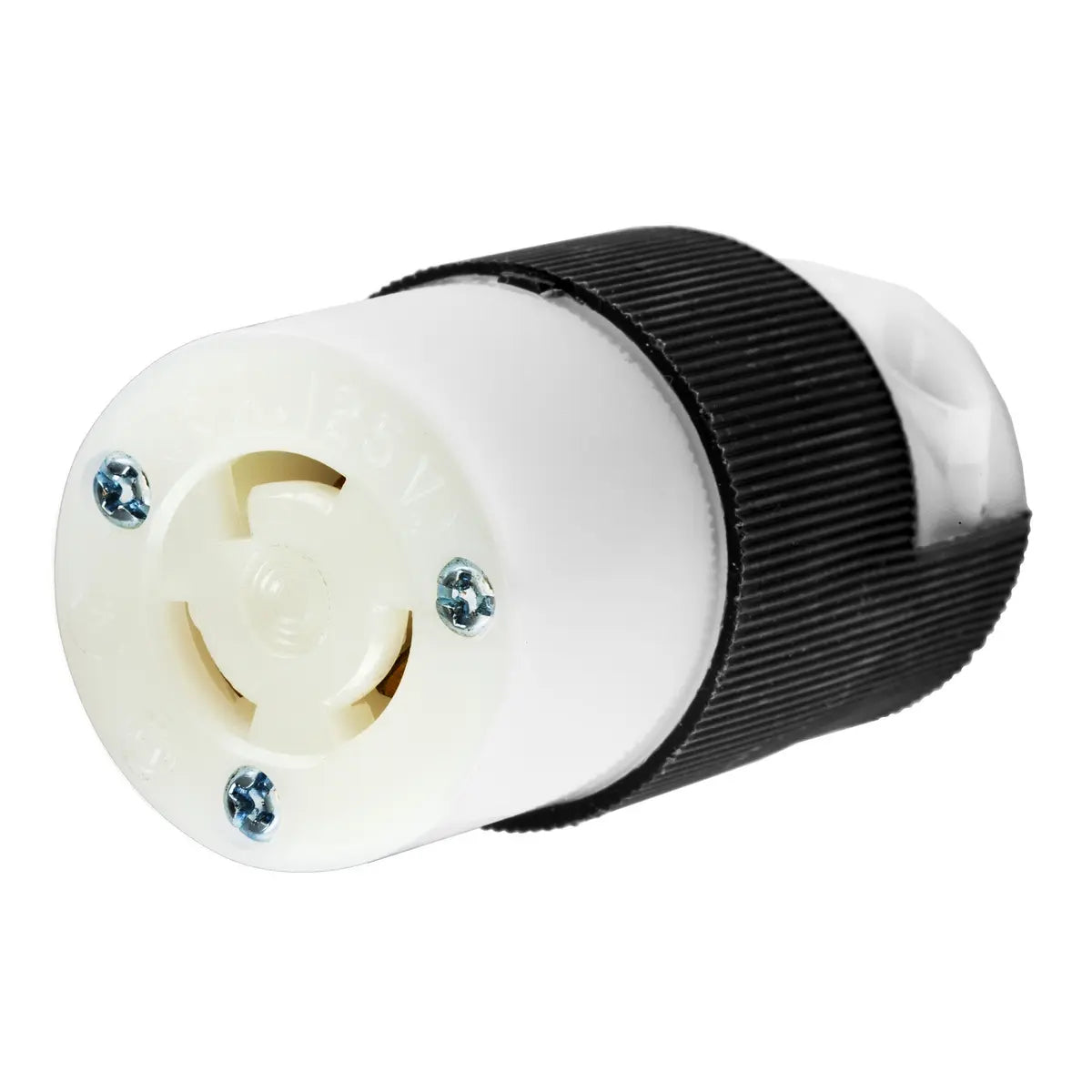

HBL4729C - Hubbell Wiring Device-Kellems - 15 A 277 VAC 2 Pole Screw Terminal Locking Receptacle
Locking Devices, Twist-Lock(R), Industrial, Female Insulgrip(R) Connector Body, 15A 125V, 2-Pole 3-Wire Grounding, NEMA L5-15R, Screw Terminal, Black and White Nylon.
Standard Product
GENERAL SPECIFICATIONS
| Catalog Number |
HBL4729C |
| Color |
Black, White |
| Cord Range |
0.230"-0.720" (5.8-18.3 mm) |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Insulation |
Insulated Body |
| Item Type |
15A Grounding Insulgrip(R) Connector |
| Material |
Nylon |
| Material - Mounting Hardware |
Cord Mounted |
| Number Of Poles |
2-Pole |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Specifications |
- Assembly Screws - Steel - nickel plated
- Contacts - Brass
- Housing / Cord Clamp - Nylon
- Terminal Clamp - Cold rolled steel - nickel plated
- Terminal Retainer - Clear polycarbonate
- Terminal Screws - #8-32 Brass (Phillips / Slotted / Robertson)
|
| Type |
Connector Body |
| UPC |
783585171357 |
Dimensions
| Dimensions |
1.53 in x 1.53 in x 2.78 in |
| Display Size |
Standard Sized
|
| Height |
2.78 in |
| Length |
1.53 in |
| Weight |
0.15 lb |
| Width |
1.53 in |
Electrical Ratings
| Amperage Rating |
15 A
|
| Connectivity |
Pressure Terminal Screws |
| Dielectric Strength |
Withstands 2,000V minimum |
| Voltage Rating |
125 V |
Conductor Related
| Cable Range |
0.230 - 0.720 in |
| Number Of Wires |
3-Wire |
| Wire Size |
#18 AWG to #10 AWG |
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
3600 |
