Description

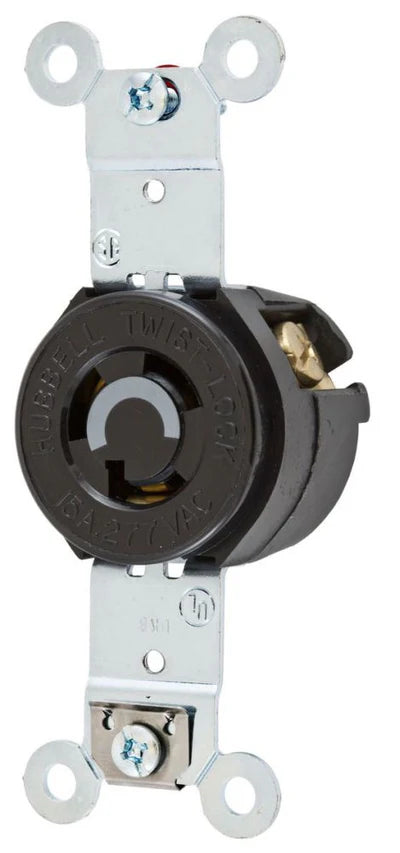

HBL4760 - Hubbell Wiring Device-Kellems - 15A 2-Pole 3-Wire Grounding Male Plug Screw Terminal Twist-Lock
The Hubbell HBL4760 is a Twist-Lock(R) Single Receptacle Electrical Device. This industrial-grade, heavy-duty, flush receptacle is rated for 15 Amps and 277 VAC. It features a NEMA L7-15R configuration with 2-pole, 3-wire grounding, and is made from durable black nylon, with a compact design for secure and reliable connections.
GENERAL SPECIFICATIONS
| Amperage Rating | 15 A |
| Color | Brown |
| Dimensions | 3.28 x 1.53 x 1.27 in |
| Grade | Industrial |
| Horsepower | 2 hp |
| Material | Thermoplastic |
| NEMA Rating | L7-15R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Series | HBL(R) |
| Temperature Rating | -40 to 75 degC |
| Terminal Type | Screw |
| Type | 1-Phase Heavy Duty Single Screw Mount |
| Voltage Rating | 277 VAC |
