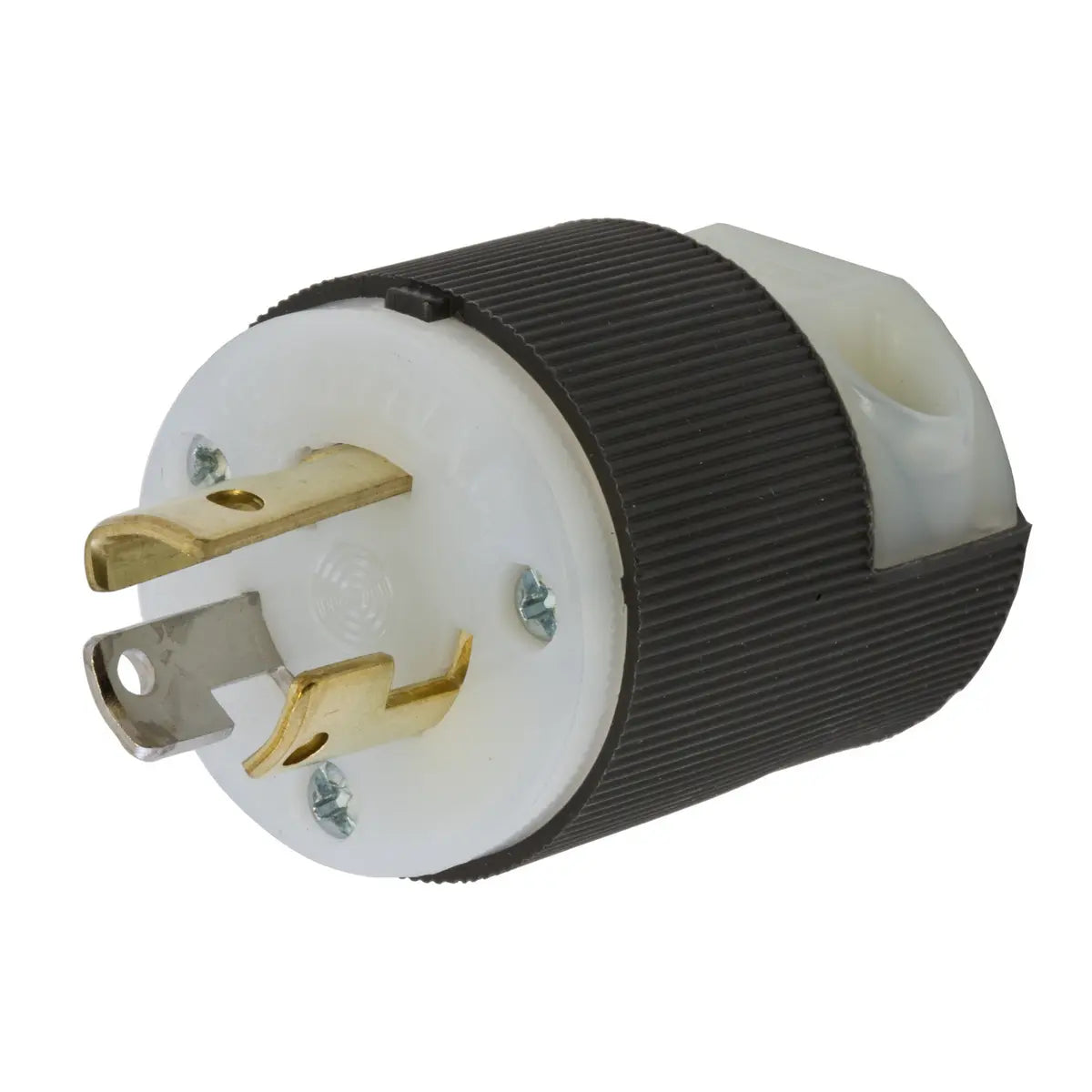

HBL4770C - Hubbell Wiring Device - Kellems - 15A 2-Pole 3-Wire Grounding Female Connector Body Screw Terminal Twist-Lock
Locking Devices, Twist-Lock(R), Industrial, Male Insulgrip(R) Plug, 15A 277V AC, 2-Pole 3-Wire Grounding, NEMA L7-15P, Screw Terminal, Black and White Nylon.
- Individually molded face for each blade configuration
- Roomy wiring chamber provides ample space for wiring
- Ribbed nylon housing provides a secure grip that's impact and chemical resistant
GENERAL SPECIFICATIONS
| Catalog Number |
HBL4770C |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Item Type |
15A Grounding Insulgrip(R) Plug |
| Material |
Nylon |
| Material - Mounting Hardware |
Cord Mounted |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Specifications |
- Assembly Screws - Steel - nickel plated
- Blades - Brass
- Housing / Cord Clamp - Nylon
- Terminal Clamp - Cold rolled steel - nickel plated
- Terminal Retainer - Clear polycarbonate
- Terminal Screws - #8-32 Brass (Phillips / Slotted / Robertson)
|
| Type |
Plugs |
| UPC |
783585171708 |
Dimensions
| Dimensions |
1.53 in x 1.53 in x 1.97 in |
| Height |
1.97 in |
| Length |
1.53 in |
| Weight |
0.15 lb |
| Width |
1.53 in |
Electrical Ratings
| Amperage Rating |
15A |
| Connectivity |
Pressure Terminal Screws |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Single Phase |
| Voltage Rating |
277 VAC |
Conductor Related
| Cable Range |
0.230 - 0.720 in |
| Cord Type |
All Listed Portables |
| Number Of Wires |
3-Wire |
| Wire Size |
#16 AWG to #8 AWG |
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
6600 |
