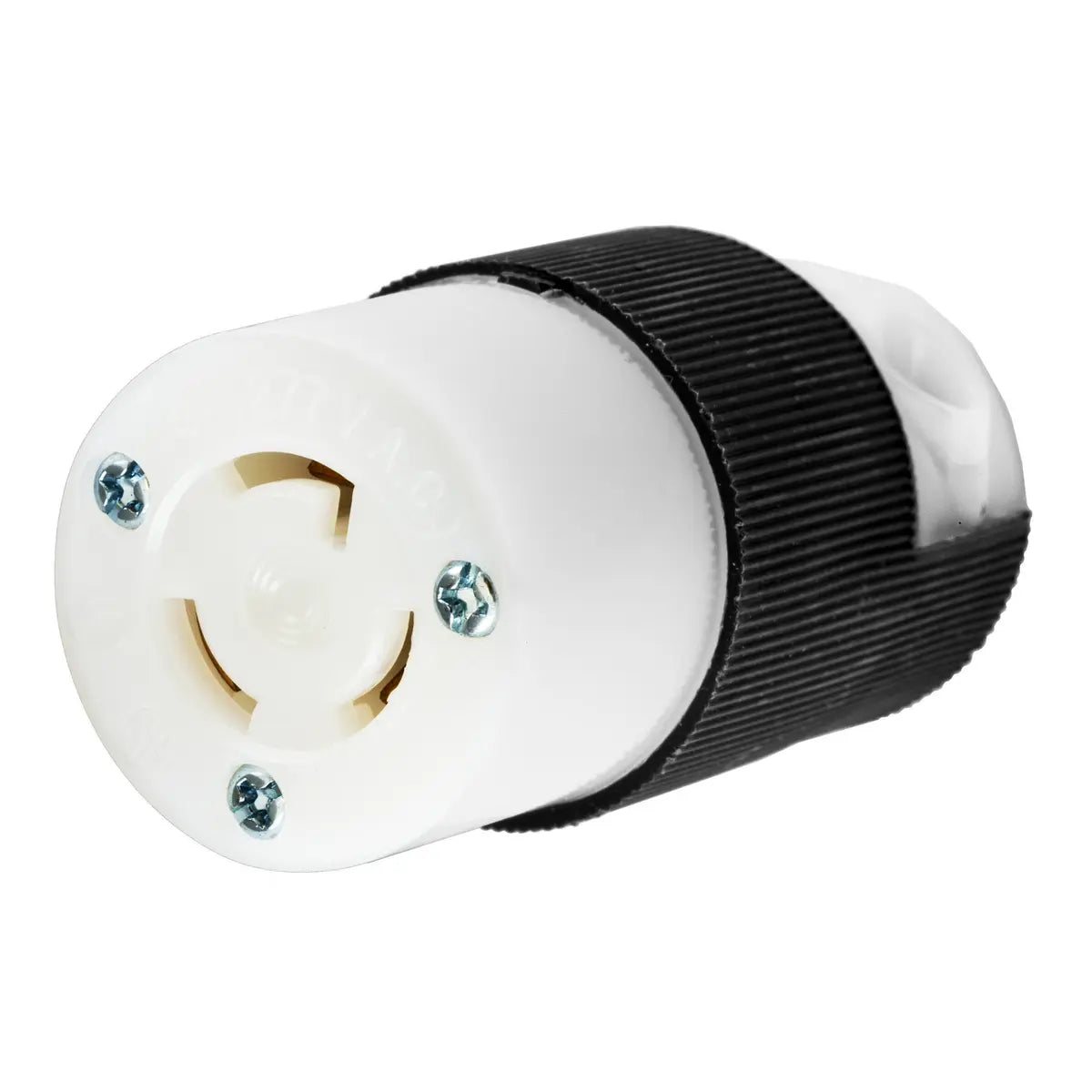

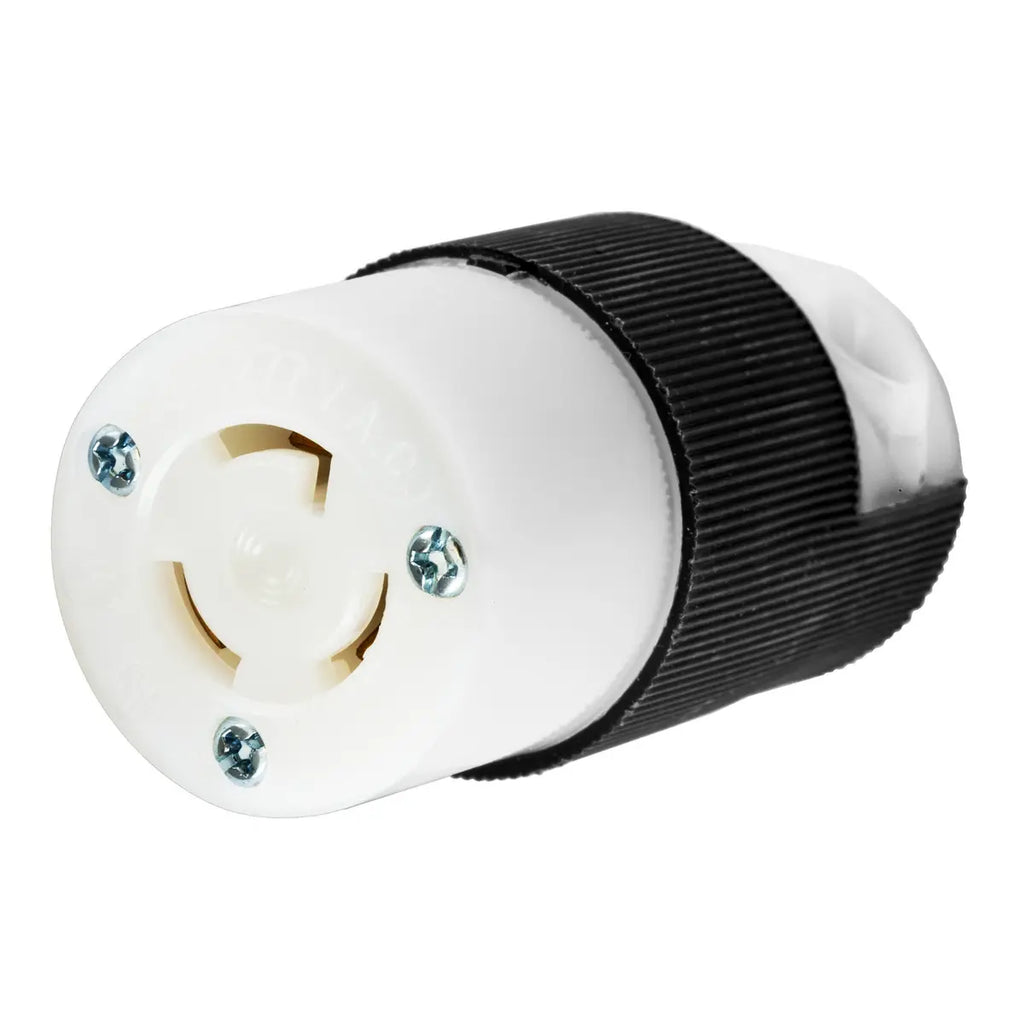

HBL4779C - Hubbell Wiring Device-Kellems - 15A 277V AC 2-Pole 3-Wire Grounding Twist-Lock Device
Locking Devices, Twist-Lock(R), Industrial, Female Insulgrip(R) Connector Body, 15A 277V AC, 2-Pole 3-Wire Grounding, NEMA L7-15R, Screw Terminal, Black and White Nylon.
- Ribbed nylon housing provides secure, impact and chemical resistant grip
- Superior cord grip design protects terminations from excess strain
- Integral VARI-SIZE insert accomodates a wide range of cord diameters
GENERAL SPECIFICATIONS
| Catalog Number |
HBL4779C |
| Color |
Black, White |
| Cord Range |
0.230"-0.720" (5.8-18.3 mm) |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Insulation |
Insulated Body |
| Item Type |
15A Grounding Insulgrip(R) Connector |
| Material |
Nylon |
| Material - Mounting Hardware |
Cord Mounted |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Specifications |
- Assembly Screws - Steel - nickel plated
- Contacts - Brass
- Housing / Cord Clamp - Nylon
- Terminal Clamp - Cold rolled steel - nickel plated
- Terminal Retainer - Clear polycarbonate
- Terminal Screws - #8-32 Brass (Phillips / Slotted / Robertson)
|
| Type |
Connector Body |
| UPC |
783585171906 |
Dimensions
| Dimensions |
1.53 in x 1.53 in x 2.78 in |
| Height |
2.78 in |
| Length |
1.53 in |
| Weight |
0.15 lb |
| Width |
1.53 in |
Electrical Ratings
| Amperage Rating |
15A |
| Connectivity |
Pressure Terminal Screws |
| Dielectric Strength |
Withstands 2,000V minimum |
| Voltage Rating |
125/250 VAC |
Conductor Related
| Cable Range |
0.230 - 0.720 in |
| Number Of Wires |
3-Wire |
| Wire Size |
#18 AWG to #10 AWG |
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
3600 |
