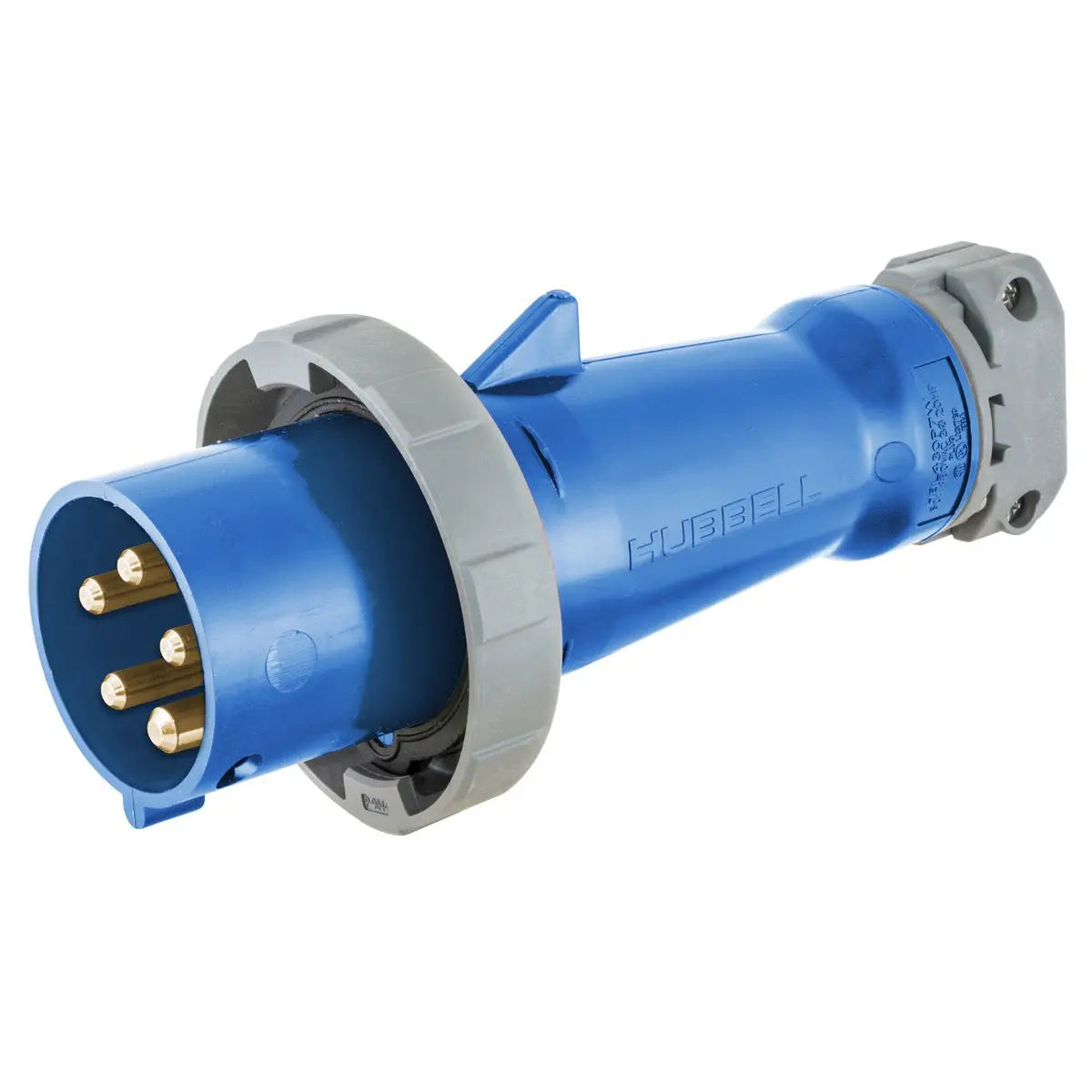

HBL5100P9W - Hubbell Wiring Device-Kellems 100A 120/208V 4 Pole 5 Wire Plug IEC Pin and Sleeve Devices
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Plug, 100A 3-Phase Wye 120/208V AC, 4- Pole 5-Wire Grounding, Terminal Screws, Blue, Watertight
Watertight Devices - Hubbell’s IEC 60309 Pin and Sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL® series of IEC pin and sleeve were designed for the demanding North American market. Hubbell was the first and is still only manufacturer of IEC 60309 devices in the USA and have numerous innovative features noted below. The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy-duty, external cord grip provides superior strain relief on the conductors. Hubbell’s horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting “line of sight” disconnecting means.
- Solid one-piece pins for reliable electrical contact
- Gasketed sealing ring provides watertight seal
- Heavy duty external cord grips
Watertight
GENERAL SPECIFICATIONS
| Application |
High Ampacity Connections |
| Catalog Number |
HBL5100P9W |
| Color |
Blue |
| Environmental Conditions |
Watertight |
| EU RoHS Indicator |
Yes |
| Item Type |
Male Plug |
| Material |
Composite |
| Material - Mounting Hardware |
Cord Mounted |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 3,000V AC Min
- Electrical - Max. Working Voltage - 600V AC RMS
- Environmental - Flammability - HB or Better per UL 94 or CSA C22.2 No. 0.17
- Environmental - Ingress Protection - IP67 Suitability
- Environmental - Moisture Resistance - Watertight per IEC 60309-1
- Environmental - Operating Temperature - Maximum Continuous 75°C
- Minimum - 40°C w/o impact
- Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682
- Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing.
- Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
|
| Series |
HBL Heavy Duty |
| Specifications |
- Contact Carrier - High-Impact Thermoset
- Housing - Zytel® ST801 Nylon
- Locking Ring - Reinforced Thermoplastic Polyester
- Retainer - High-Impact Thermoset
- Terminal Screws - Stainless Steel
|
| Style |
Standard Service |
| Type |
Watertight Plug |
| UPC |
783585405094 |
Dimensions
| Display Size |
Standard Sized
|
Electrical Ratings
| Amperage Rating |
100 A |
| Connectivity |
Pressure Terminal Screws |
| Current / Amperage Rating |
100 A |
| Current Rating |
100 A |
| Phase |
Three Phase |
| Voltage Rating |
3 Phase Y 120/208 VAC |
| Voltage Rating Description |
3 Phase Y 120/208 VAC |
Conductor Related
| Number Of Poles |
4-Pole |
| Number Of Wires |
5-Wire |
| Wire Size |
#3 AWG to #1/0 AWG |
Operational
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 3,000V AC Min
- Electrical - Max. Working Voltage - 600V AC RMS
- Environmental - Flammability - HB or Better per UL 94 or CSA C22.2 No. 0.17
- Environmental - Ingress Protection - IP67 Suitability
- Environmental - Moisture Resistance - Watertight per IEC 60309-1
- Environmental - Operating Temperature - Maximum Continuous 75°C
- Minimum - 40°C w/o impact
- Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682
- Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing.
- Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
|
Configuration
Logistics
| Carton Quantity |
6 |
| Pallet Quantity |
126 |
