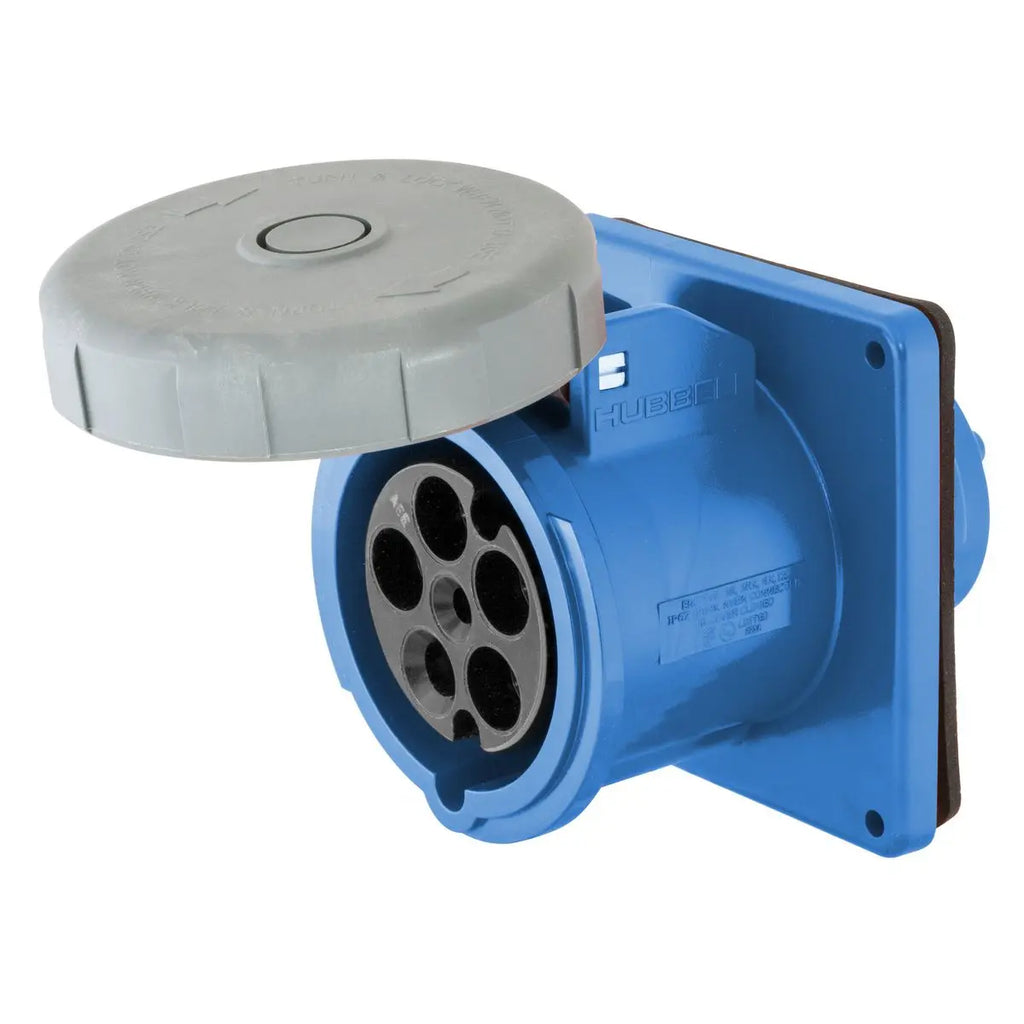

HBL5100R9W - Hubbell Wiring Device-Kellems 100A 120/208V 4 Pole 5 Wire Receptacle IEC Pin and Sleeve Devices
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 100A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Blue, Watertight
Watertight Devices - Hubbell's IEC 60309 Pin and Sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL(R) series of IEC pin and sleeve were designed for the demanding North American market. Hubbell was the first and is still only manufacturer of IEC 60309 devices in the USA and have numerous innovative features noted below. The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy-duty, external cord grip provides superior strain relief on the conductors. Hubbell's horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting "line of sight" disconnecting means.
- Self-closing gasketed cover
- Color coded housings for easy identification
- Super tough insulated non-metallic housing
GENERAL SPECIFICATIONS
| Application |
High Ampacity Watertight Connections |
| Catalog Number |
HBL5100R9W |
| Color |
Blue |
| Environmental Conditions |
Watertight |
| EU RoHS Indicator |
Yes |
| Item Type |
Single Flanged |
| Material |
Thermoplastic |
| Material - Mounting Hardware |
Screw Mounting |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstand 3000V AC
- Electrical - Max. Working Voltage - 600V RMS
- Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17
- Environmental - Ingress Protection - IP67 Suitability
- Environmental - Moisture Resistance - Watertight per IEC 60309-1
- Environmental - Operating Temperatures - Maximum Continuous 75 degC
- Minimum - 40 degC w/o impact
- Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682
- Mechanical - Product Identification - Ratings are a permanent part of the device housing
- Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
|
| Series |
HBL Heavy Duty |
| Specifications |
- Cover - Reinforced Thermoplastic Polyester
- Cover Screw - Nickel-plated brass
- Gaskets - Solid Neoprene
- Housing - Zytel(R) 101 Nylon
- Mounting Flange - Zytel(R) 101 Nylon
|
| Style |
Standard Service |
| Type |
Watertight Receptacle |
| UPC |
783585405124 |
Dimensions
| Display Size |
Standard Sized Product
|
ElectricalRatings
| Amperage Rating |
100 A |
| Connectivity |
Pressure Terminal Screws |
| Current / Amperage Rating |
100 A |
| Current Rating |
100 A |
| Phase |
Three Phase |
| Voltage Rating |
3 Phase Y 120/208 VAC |
| Voltage Rating Description |
3 Phase Y 120/208 VAC |
| Wattage |
20800 |
ConductorRelated
| Number Of Poles |
4-Pole |
| Number Of Wires |
5-Wire |
| Wire Size |
#3 AWG to #1/0 AWG |
Operational
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstand 3000V AC
- Electrical - Max. Working Voltage - 600V RMS
- Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17
- Environmental - Ingress Protection - IP67 Suitability
- Environmental - Moisture Resistance - Watertight per IEC 60309-1
- Environmental - Operating Temperatures - Maximum Continuous 75 degC
- Minimum - 40 degC w/o impact
- Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682
- Mechanical - Product Identification - Ratings are a permanent part of the device housing
- Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
|
Logistics
Carton Quantity
|
6 |
| Pallet Quantity |
252 |
PRODUCT DATASHEET
HBL5100R9W
