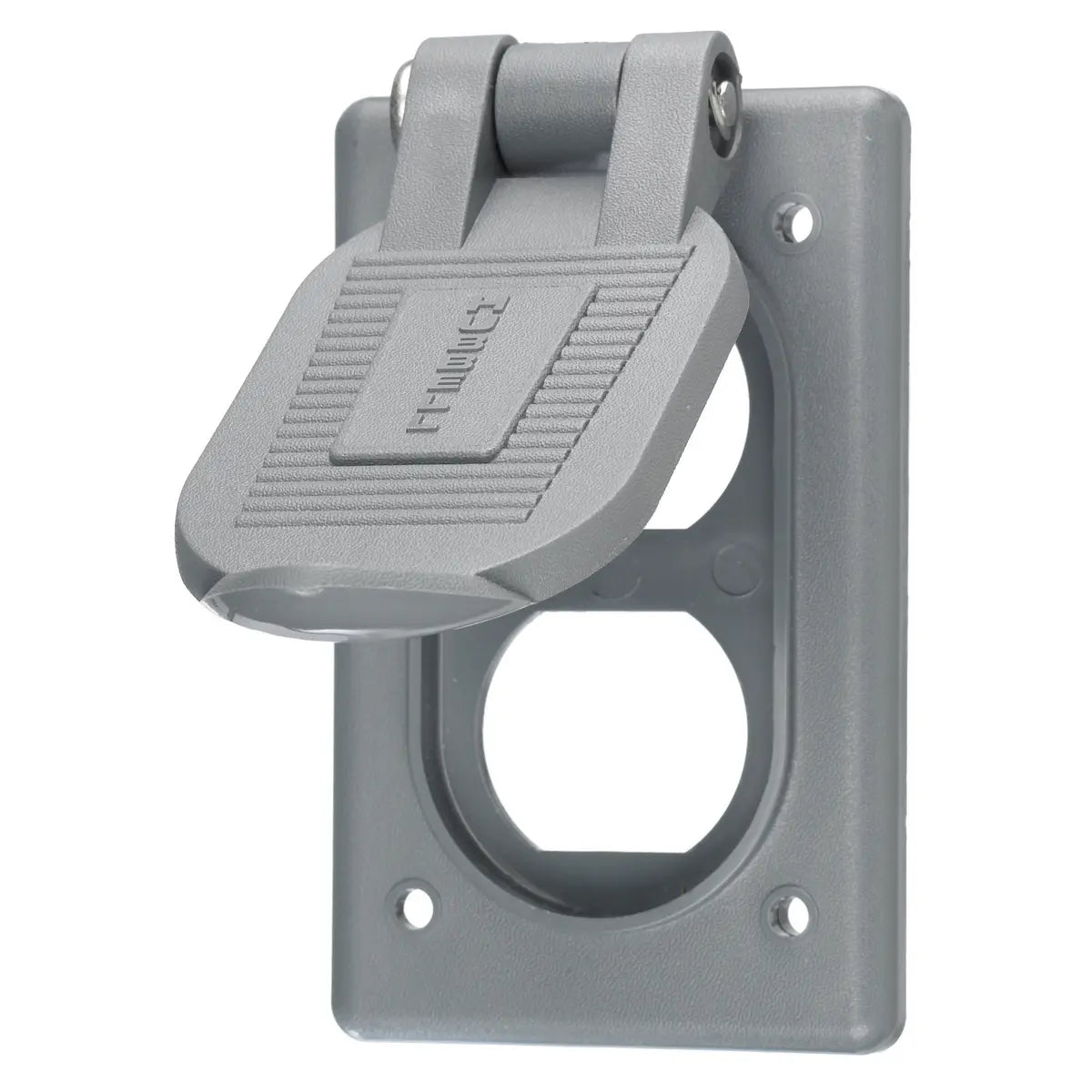

HBL5221 - Hubbell Wiring Device-Kellems - Weatherproof Cover 1-Gang Duplex Opening Gray
Twist-Lock(R) Devices, Weatherproof Covers, Accessories for Duplex Receptacles, Gray thermoplastic, vertical FS/FD box mount, corrosion resistant
- 1-Gang
- 1) Duplex Opening
- Standard Size
GENERAL SPECIFICATIONS
| Application |
Duplex Opening |
| Catalog Number |
HBL5221 |
| Color |
Gray |
| Construction |
Molded |
| EU RoHS Indicator |
Yes |
| Item Type |
Weatherproofing Covers |
| Knockouts |
None |
| Material |
Thermoplastic |
| Material - Mounting Hardware |
Vertical FS/FD Mount - Mounting Screws |
| Number of Gang(s) |
1-Gang |
| Number Of Outlets |
1-Device |
| Operating Temperature |
-40 degC to 85 degC |
| Orientation |
Vertical Mount |
| Series |
Accessory |
| Specifications |
- Gasket - Neoprene
- Material - Thermoplastic
- Spring - Stainless Steel
|
| Style |
Vertical Mount Duplex |
| Type |
Covers |
| UPC |
783585809151 |
Dimensions
| Dimensions |
4.56 in x 2.89 in x 1.08 in |
| Display Size |
1-Gang |
| Height |
1.08 in |
| Length |
4.56 in |
| Weight |
0.25 lb |
| Width |
2.89 in |
Operational
| Operating Temperature |
-40 degC to 85 degC
|
Configuration
| Knockouts |
None
|
| Number of Gang(s) |
1-Gang |
| Number Of Outlets |
1-Device |
| Orientation |
Vertical Mount |
Logistics
| Carton Quantity
|
10 |
| Pallet Quantity |
910 |
PRODUCT DATASHEET
Wiring HBL5221 Specification Sheet
