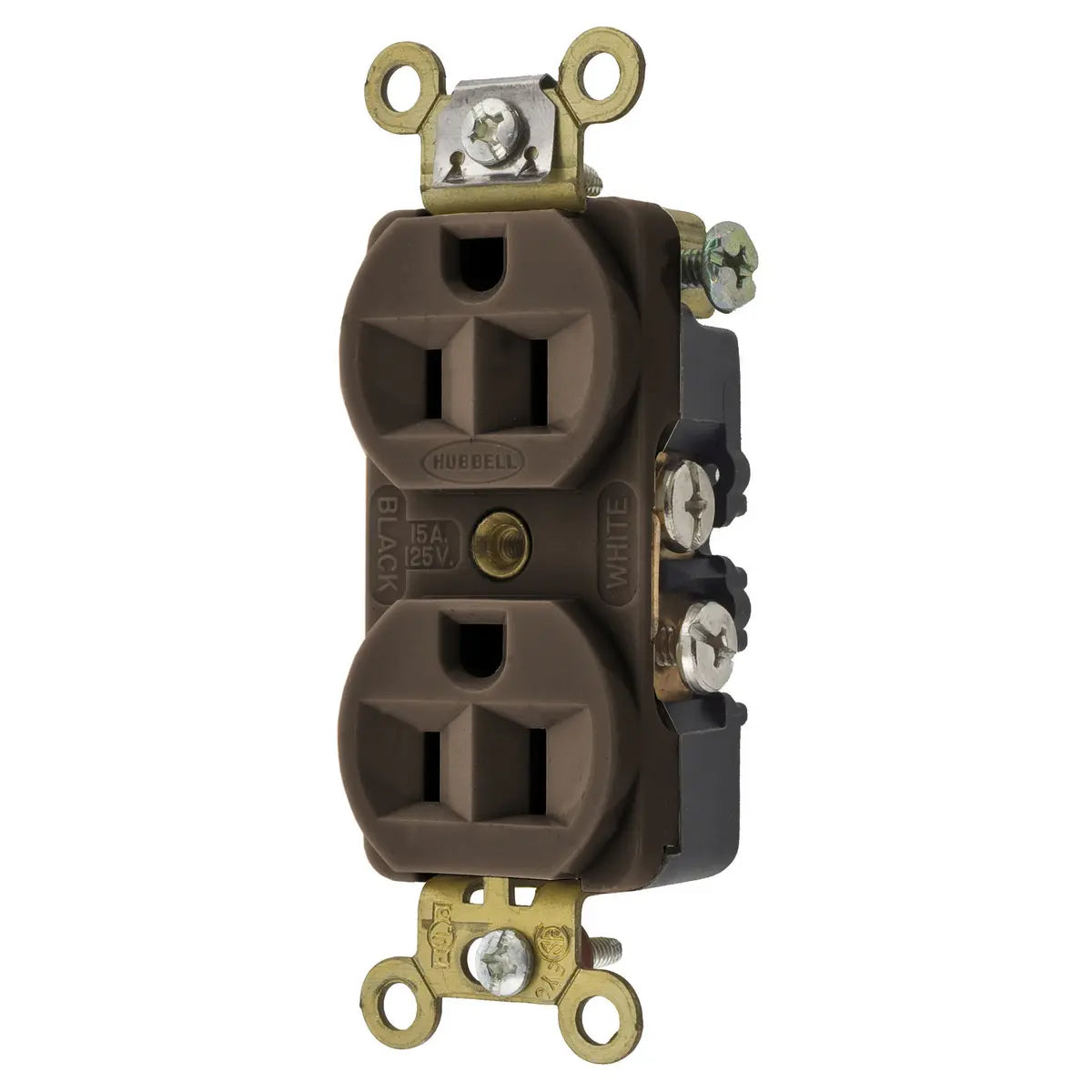

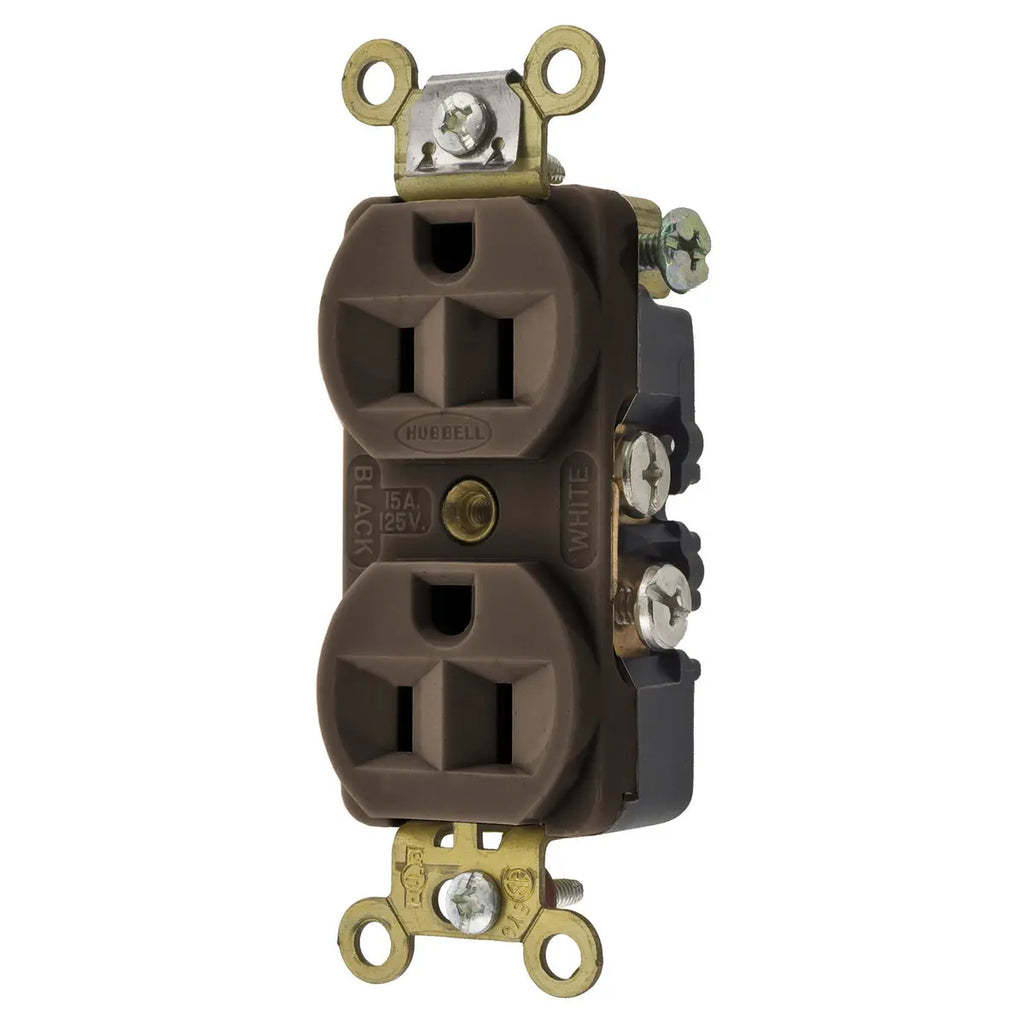

HBL5242 - Hubbell Wiring Device-Kellems 15A 125V 2 Pole 3 Wire Duplex Receptacle Straight Blade Devices
Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Brown, Single Pack.
- Slender/compact design
- Brass Mounting Strap
- Triple wipe contacts
GENERAL SPECIFICATIONS
| Application |
Extra Heavy Duty Compact
|
| Catalog Number |
HBL5221 |
| Color |
Brown |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Horsepower - Maximum |
0.5 |
| Item Type |
Traditional Duplex
|
| Material - Mounting Hardware |
|
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0
- Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
- Mechanical - Product Identification - Ratings are a permanent part of the device
- Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
|
| Series |
Heavy Duty |
| Specifications |
- Automatic Self-grounding Clip - Stainless steel
- Base - PBT
- Face - Nylon
- Ground Contact - .031 in. (.8) Brass
- Mounting Screws - Steel-Zinc Plated
- Mounting Strap - .050" (1.3) Brass
- Power Contacts - .032" (.8) Brass
- Terminal Screws - Brass
|
| Series |
Accessory |
| Specifications |
- Automatic Self-grounding Clip - Stainless steel
- Base - PBT
- Face - Nylon
- Ground Contact - .031 in. (.8)Brass
- Mounting Screws - Steel-Zinc Plated
- Mounting Strap - .050" (1.3) Brass
- Power Contacts - .032" (.8) Brass
- Terminal Screws - Brass
|
| Style |
Finder Groove Face |
| Type |
Standard Duplex
|
| UPC |
783585434667 |
Dimensions
| Dimensions |
3.28 in x 1.33 in x 1.05 in |
| Display Size |
Standard Sized Product |
| Height |
1.05 in |
| Length |
3.28 in |
| Weight |
0.2 lb |
| Width |
1.33 in |
Electrical Ratings
| Amperage Rating |
15 A |
| Connectivity |
Side Wired Only |
| Current / Amperage Rating |
15 A |
| Current Rating |
15 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Single Phase |
| Voltage Rating |
125 VAC |
| Voltage Rating Description |
125 V |
| Wattage |
1875 W |
Conductor Related
| Number Of Poles |
2-Pole |
| Number Of Wires
|
3-Wire |
| Wire Size |
#14 AWG to #10 AWG |
Operational
| Horsepower - Maximum |
0.5 |
| Operating Temperature |
Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0
- Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
- Mechanical - Product Identification - Ratings are a permanent part of the device
- Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
|
Logistics
PRODUCT DATASHEET
Wiring HBL5242 Specification Sheet
