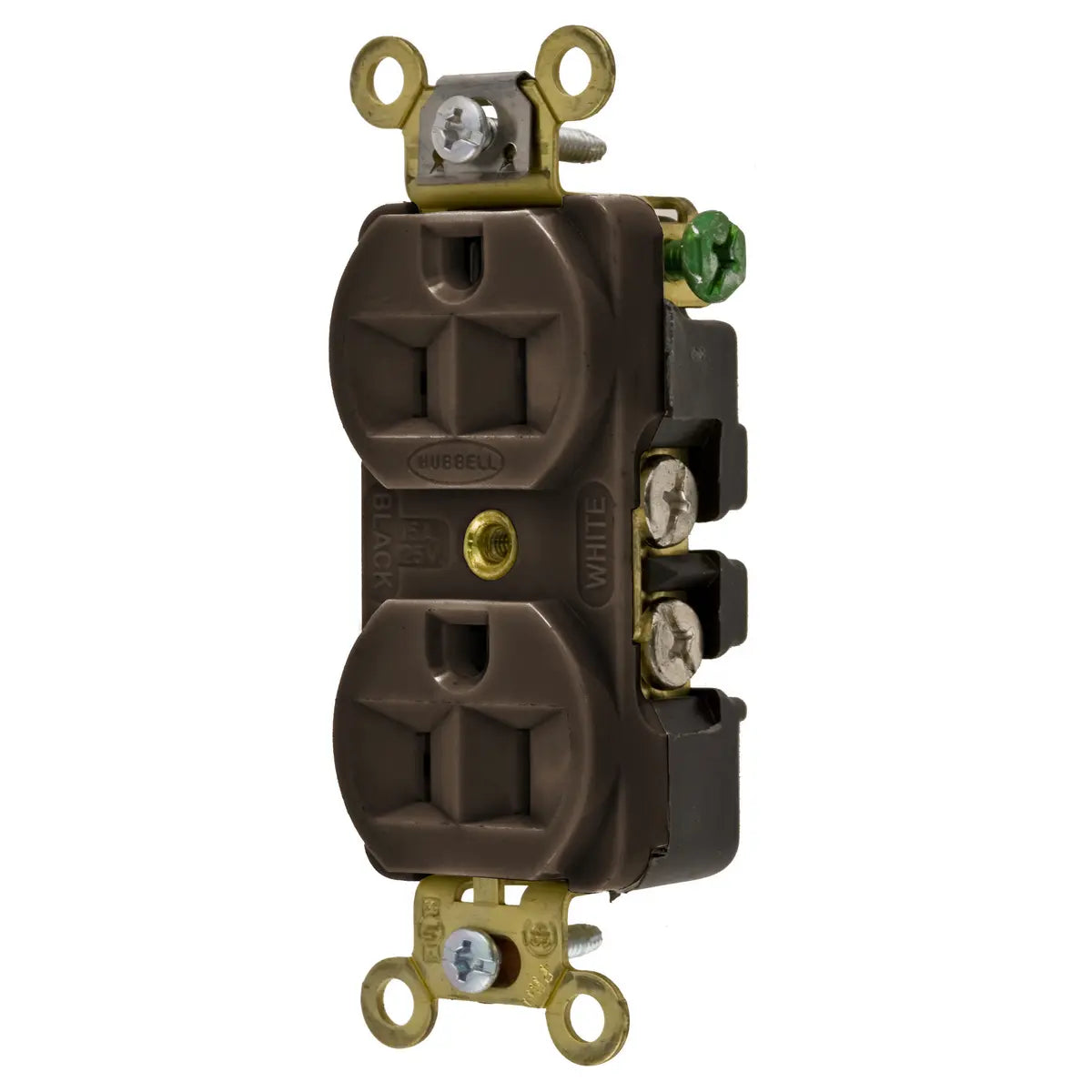

Hubbell Wiring Device-Kellems 15A 125V 2 Pole 3 Wire Duplex Receptacle Straight Blade Devices - 15A Brown Receptacle Duplex Industrial Grade
Straight Blade Devices, Receptacles, Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Brown, Single Pack.
Compact design and Self Grounding
GENERAL SPECIFICATIONS
| Application |
Extra Heavy Duty Compact |
| Catalog Number |
HBL5252 |
| Color |
Brown |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Forks |
| Item Type |
Traditional Duplex |
| Material - Mounting Hardware |
Screw Mounting |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Specifications |
- Automatic Self-grounding Clip - Stainless steel
- Base - RTP
- Contacts - Brass
- Face - Nylon
- Mounting Screws - Steel-Zinc Plated
- Mounting Strap - .031" (.8) Brass
- Terminal Screws - Brass
- Wire Clamp - Plated brass
|
| Style |
Finder Groove Face |
| Type |
Standard Duplex |
| UPC |
783585434841 |
Dimensions
| Dimensions |
3.28 in x 1.33 in x 1.05 in |
| Display Size |
Standard Sized Product |
| Height |
1.05 in |
| Length |
3.28 in |
| Weight |
0.2 lb |
| Width |
1.33 in |
Electrical Ratings
| Amperage Rating |
15 A |
| Connectivity |
Back and Side Wired |
| Current / Amperage Rating |
15 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Single Phase |
| Voltage Rating |
125 VAC |
| Wattage |
1875 W |
Conductor Related
| Number Of Wires
|
3-Wire |
| Wire Size |
#14 AWG to #10 AWG |
Logistics
| Carton Quantity
|
10 |
| Pallet Quantity |
3600 |
