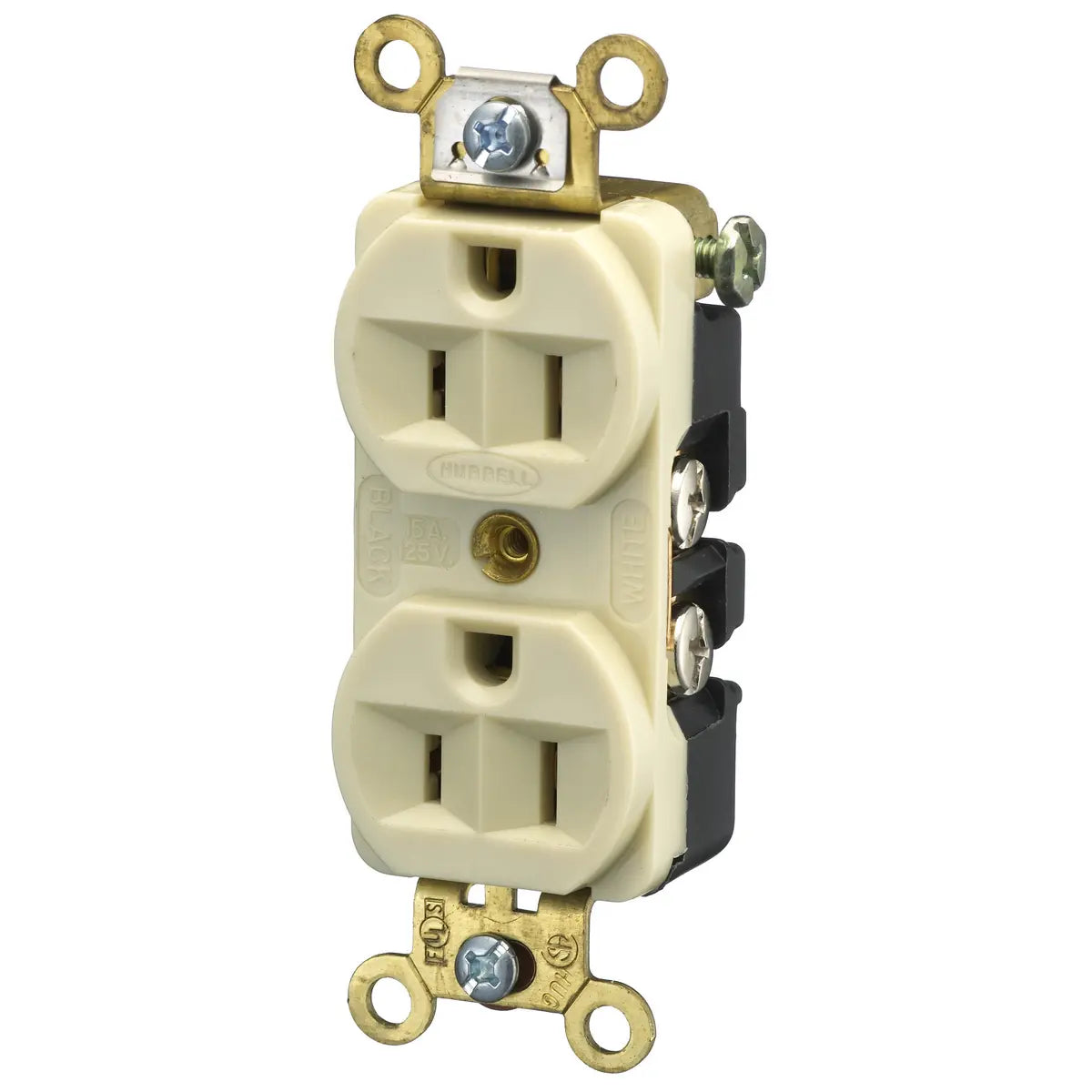

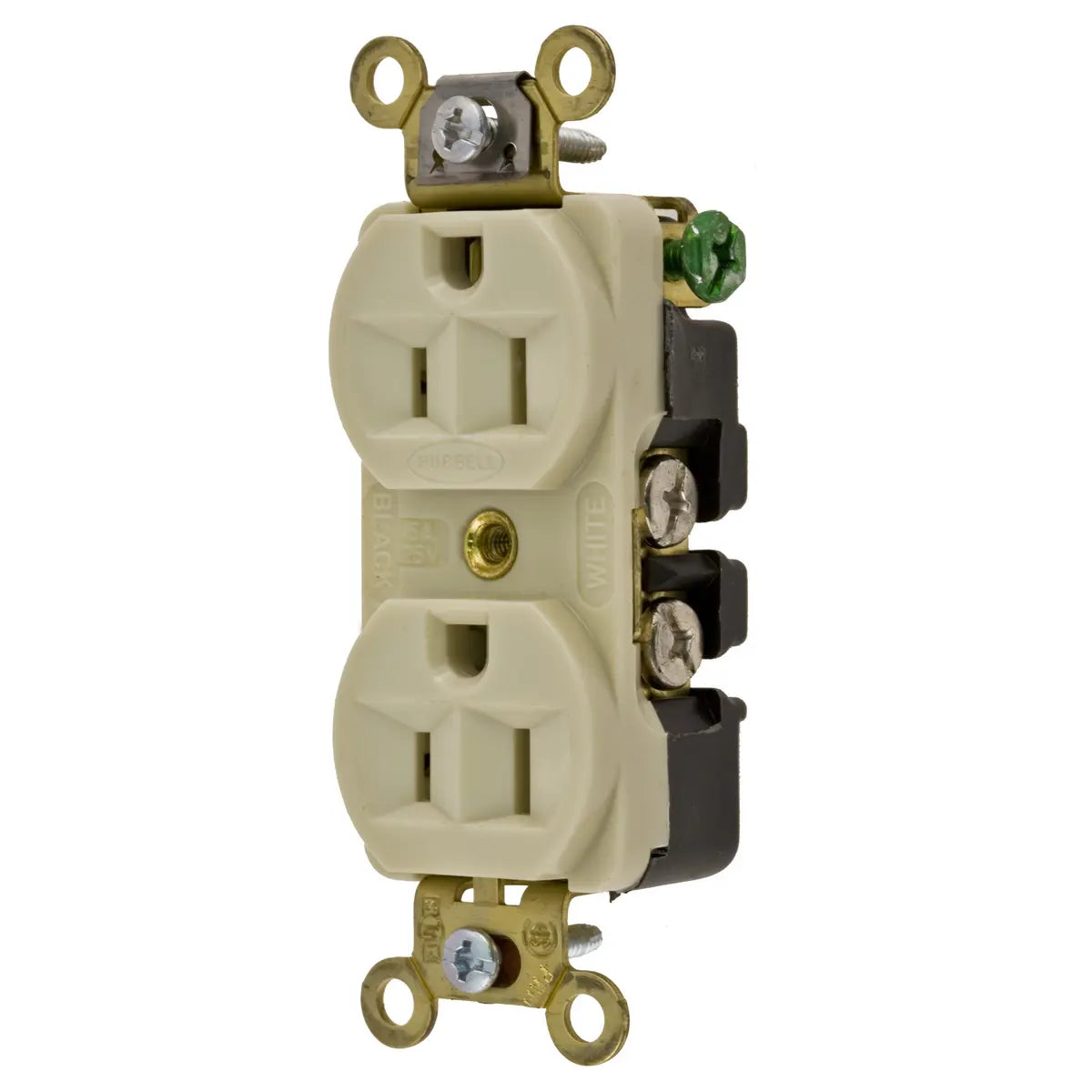

HBL5252I - Hubbell Wiring Device-Kellems 15A 125V 2 Pole 3 Wire Duplex Receptacle Straight Blade Devices
Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles, Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Ivory, Single Pack
- Slender/compact design
- Brass Mounting Strap
- Triple wipe contacts
Compact design and Self Grounding
GENERAL SPECIFICATIONS
| Application |
Extra Heavy Duty Compact |
| Catalog Number |
HBL5252I |
| Color |
Ivory |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Horsepower - Maximum |
0.5 |
| Item Type |
Traditional Duplex |
| Material - Mounting Hardware |
Screw Mounting |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - UL 94 V-0
- Environmental - Operating Temperatures - Maximum continuous 75 degC, minimum -40 degC (w/o impact)
- Mechanical - Product Identification - Ratings are a permanent part of the device
- Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
|
| Series |
Heavy Duty |
| Specifications |
- Automatic Self-grounding Clip - Stainless steel
- Base - RTP
- Contacts - Brass
- Face - Nylon
- Mounting Screws - Steel-Zinc Plated
- Mounting Strap - .031" (.8) Brass
- Terminal Screws - Brass
- Wire Clamp - Plated brass
|
| Style |
Finder Groove Face |
| Type |
Standard Duplex |
| UPC |
783585434902 |
Dimensions
| Dimensions |
3.28 in x 1.33 in x 1.05 in |
| Display Size |
Standard Sized Product |
| Height |
1.05 in |
| Length |
3.28 in |
| Weight |
0.25 lb |
| Width |
1.33 in |
Electrical Ratings
| Amperage Rating |
15 A |
| Connectivity |
Back and Side Wired |
| Current / Amperage Rating |
15 A |
| Current Rating |
15 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Single Phase |
| Voltage Rating |
125 VAC |
| Voltage Rating Description |
125 V |
| Wattage |
1875 W |
Conductor Related
| Number Of Poles |
2-Pole |
| Number Of Wires
|
3-Wire |
| Wire Size |
#14 AWG to #10 AWG |
Operational
| Horsepower - Maximum |
0.5 |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - UL 94 V-0
- Environmental - Operating Temperatures - Maximum continuous 75 degC, minimum -40 degC (w/o impact)
- Mechanical - Product Identification - Ratings are a permanent part of the device
- Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
|
Logistics
| Carton Quantity
|
10 |
| Pallet Quantity |
3600 |
