Description

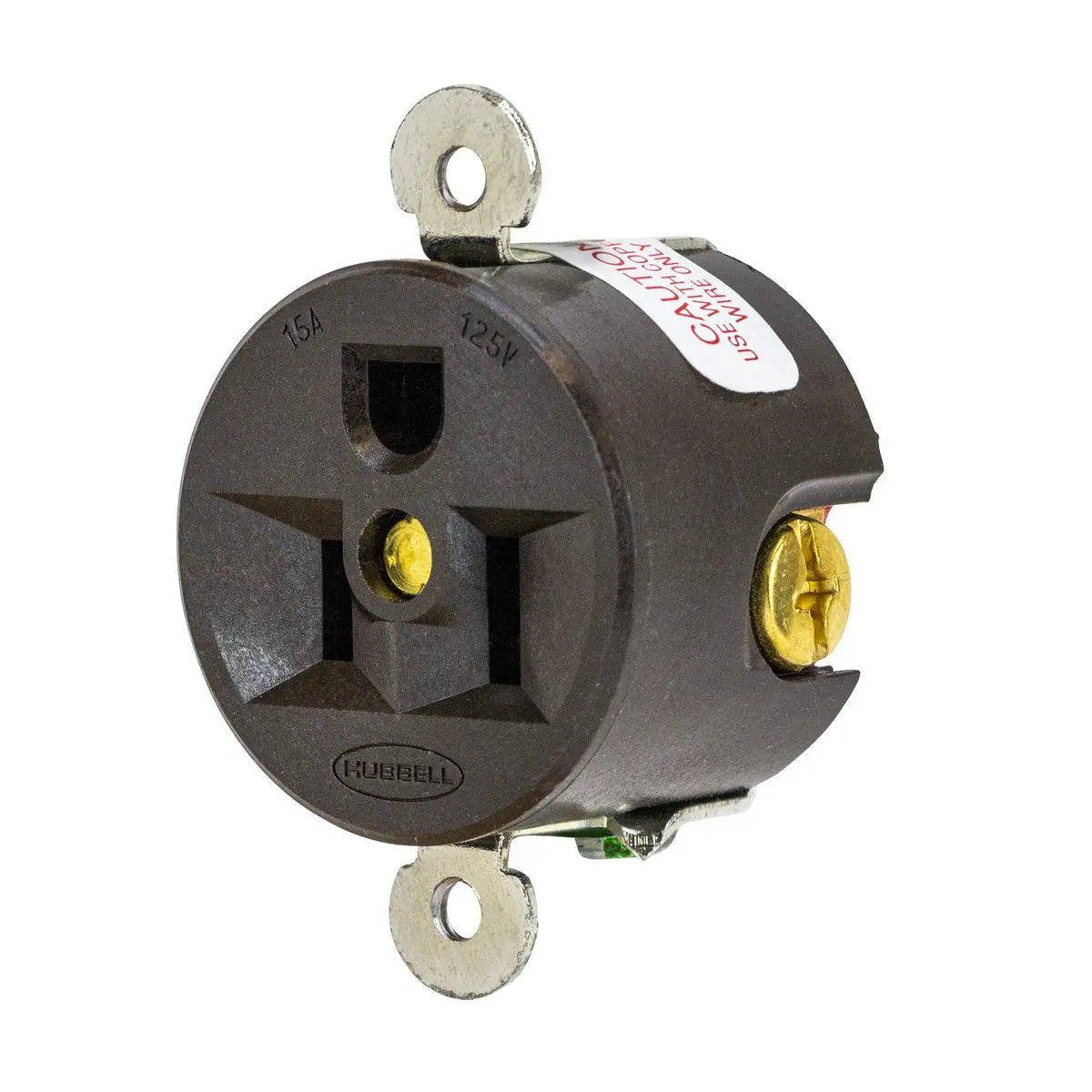

HBL5258 - Hubbell Wiring Device-Kellems 15A 125V 2 Pole 3 Wire Panel Mount Receptacle Straight Blade Devices
Straight Blade Devices, Receptacles, Panel Mount Single, Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Brown, Single Pack, Short Strap.
- Slender/compact design
- Triple wipe contacts
- Panel mount
GENERAL SPECIFICATIONS
| Application | Heavy Duty |
| Catalog Number | HBL5258 |
| Color | Brown |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator | Yes |
| Horsepower - Maximum | 0.5 |
| Item Type | Single |
| Material - Mounting Hardware | Screw Mounting |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
| Series | Heavy Duty |
| Specifications |
|
| Style | Finder Groove Face |
| Type | Single Receptacle |
| UPC | 783585013848 |
Dimensions
| Dimensions | 1.75 in x 1.38 in x 1.12 in |
| Display Size | Standard Sized Product |
| Height | 1.12 in |
| Length | 1.75 in |
| Weight | 0.15 lb |
| Width | 1.38 in |
Electrical Ratings
| Amperage Rating | 15 A |
| Connectivity | Side Wired Only |
| Current / Amperage Rating | 15 A |
| Current Rating | 15 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Phase | Single Phase |
| Voltage Rating | 125 VAC |
| Voltage Rating Description | 125 V |
| Wattage | 1875 W |
Conductor Related
| Number Of Poles | 2-Pole |
| Number Of Wires | 3-Wire |
| Wire Size | #14 AWG to #10 AWG |
Operational
| Horsepower - Maximum | 0.5 |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
Logistics
| Carton Quantity | 10 |
| Pallet Quantity | 5000 |
