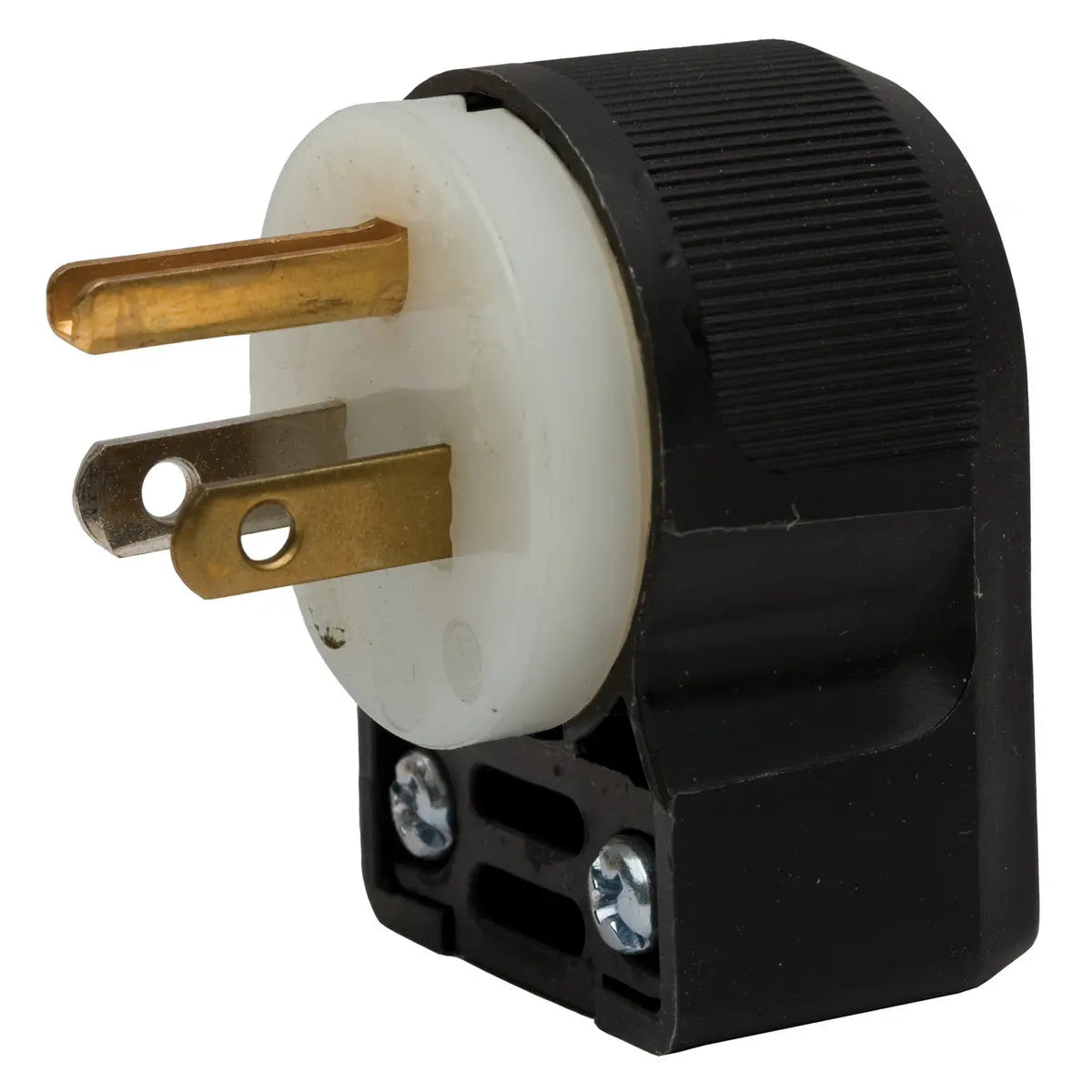

HBL5266CA - Hubbell Wiring Device-Kellems 15A 125V 2 Pole 3 Wire Angled Plug Straight Blade Devices
Straight Blade Devices, Male Plug, Insulgrip Heavy Duty, Industrial/Commercial Grade, Angled, 2-Pole 3-Wire Grounding, 15A 125V, 5-15P, Black and White, Single Pack.
- 8-Position angled plug
- Low profile
- Roomy wiring chamber provides ample space for wiring
GENERAL SPECIFICATIONS
| Application |
Industrial/Commercial Grade |
| Catalog Number |
HBL5266CA |
| Color |
Black, White |
| EU RoHS Indicator |
Contact Manufacturer |
| Horsepower - Maximum |
0.5 |
| Item Type |
Insulgrip Plug |
| Material |
Polycarbonate |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - UL 94 HB or better
- Environmental - IP Suitability - IP20
- Environmental - Operating Temperatures - Maximum continuous 75 degC minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
|
| Series |
Insulgrip(R) |
| Specifications |
- Assembly Screws - Nickel plated steel
- Blade Holder - Nylon
- Blades - .060 in. (1.5) Brass
- Housing/Cord Clamp - Nylon
- Terminal Clamp - Nickel plated steel
- Terminal Retainer - Clear Polycarbonate
- Terminal Screws - #8-32 Brass , multiple drive
|
| Style |
Angled |
| Type |
Plug |
| UPC |
783585173054 |
Dimensions
| Dimensions |
1.53 in x 1.22 in x 2.11 in |
| Height |
2.11 in |
| Length |
1.53 in |
| Weight |
0.15 lb |
| Width |
1.22 in |
Electrical Ratings
| Amperage Rating |
15 A |
| Current / Amperage Rating |
15 A |
| Current Rating |
15 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Single Phase |
| Voltage Rating |
125 VAC |
| Voltage Rating Description |
125 V |
Conductor Related
| Number Of Poles |
2-Pole |
| Number Of Wires
|
3-Wire |
| Wire Size |
#18 AWG to #10 AWG |
Operational
| Horsepower - Maximum |
0.5 |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - UL 94 HB or better
- Environmental - IP Suitability - IP20
- Environmental - Operating Temperatures - Maximum continuous 75 degC minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
|
Logistics
| Carton Quantity
|
10 |
| Pallet Quantity |
4500 |
