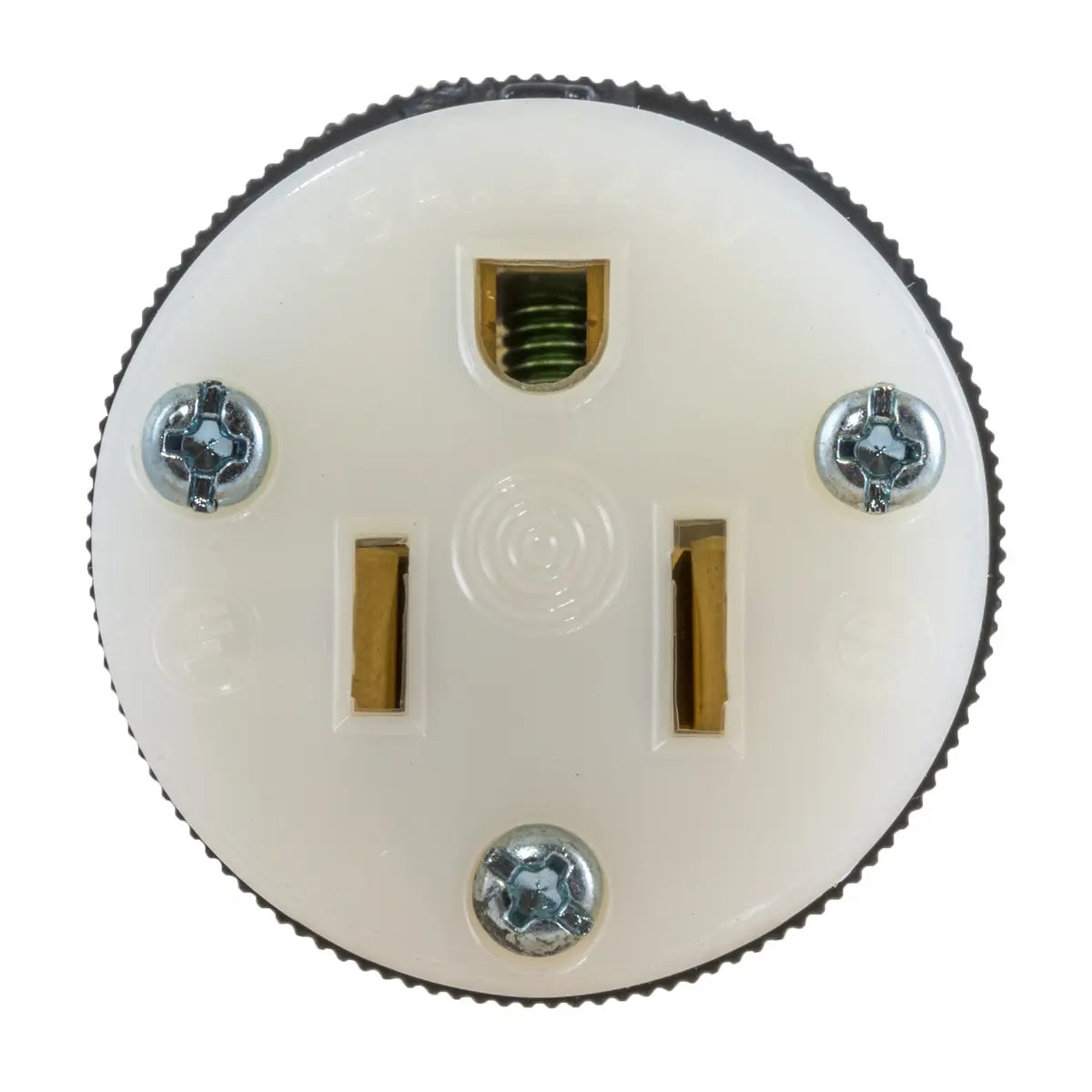

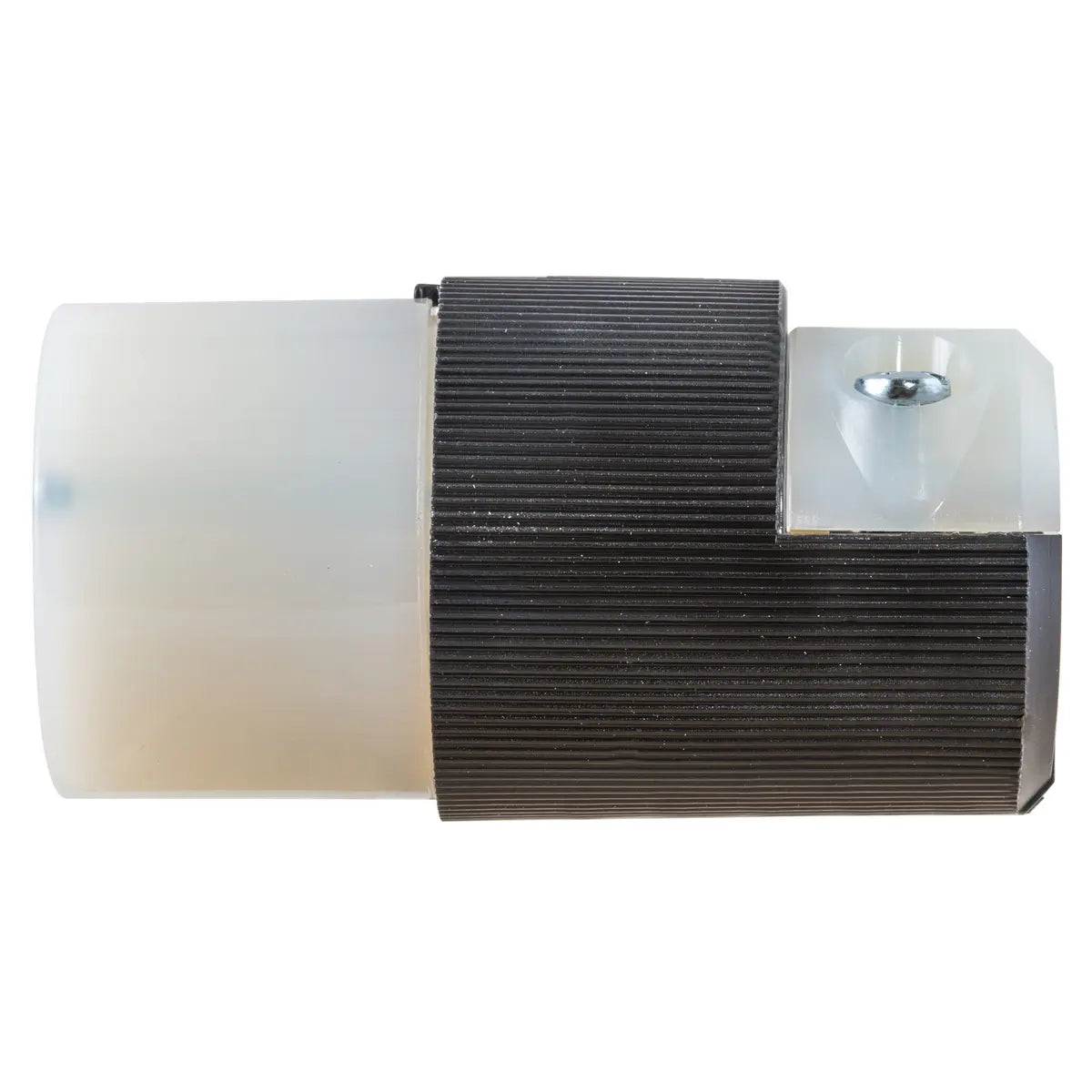

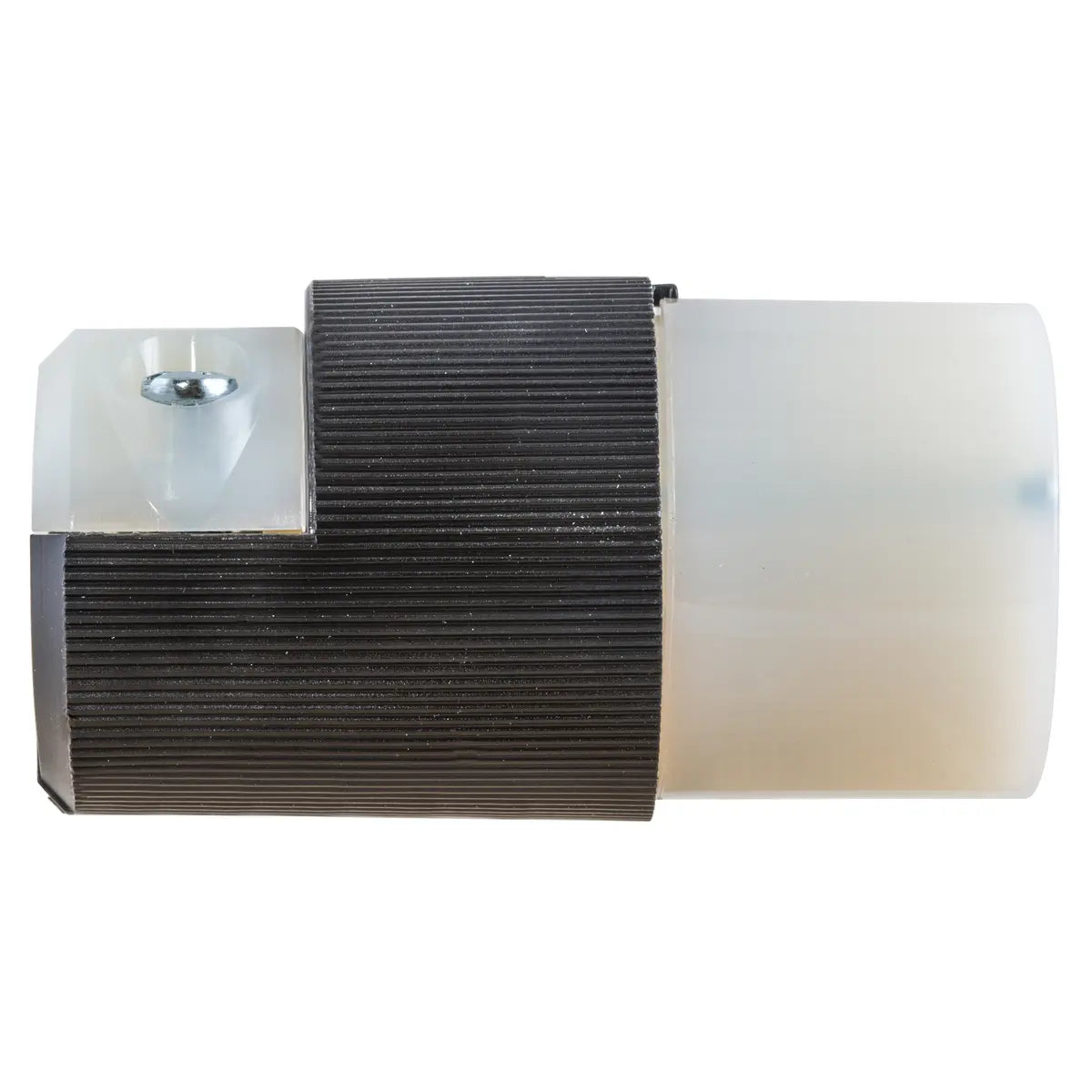

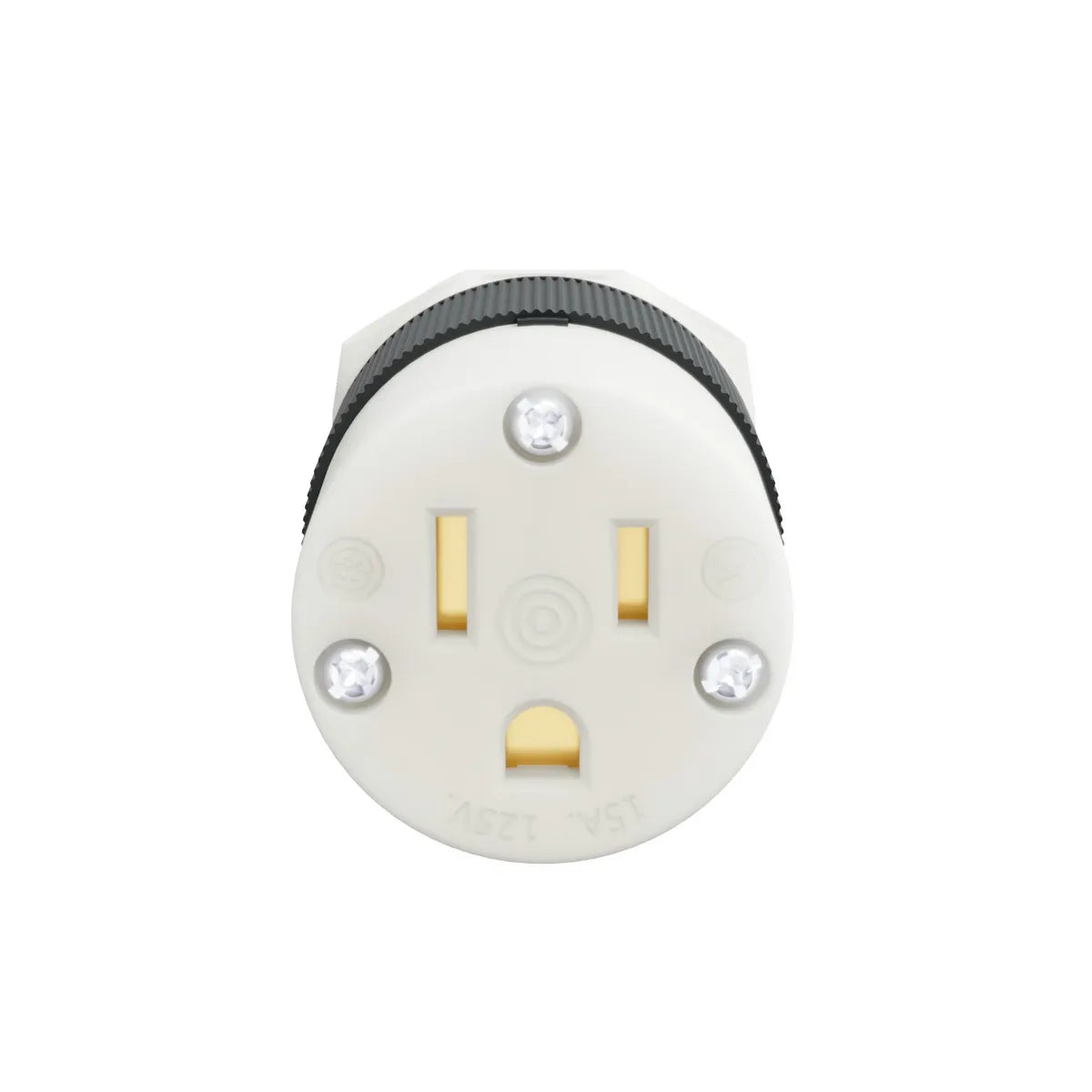

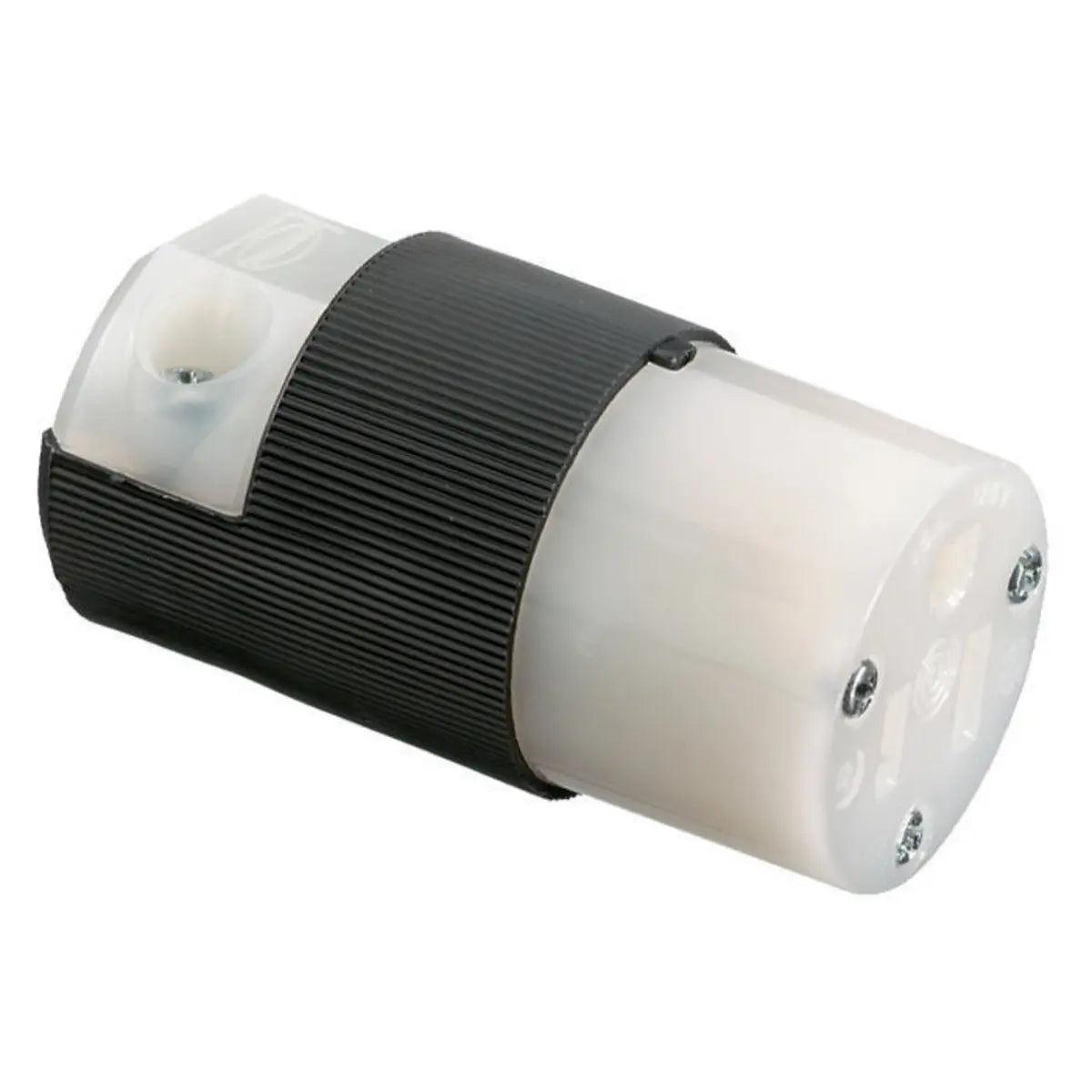

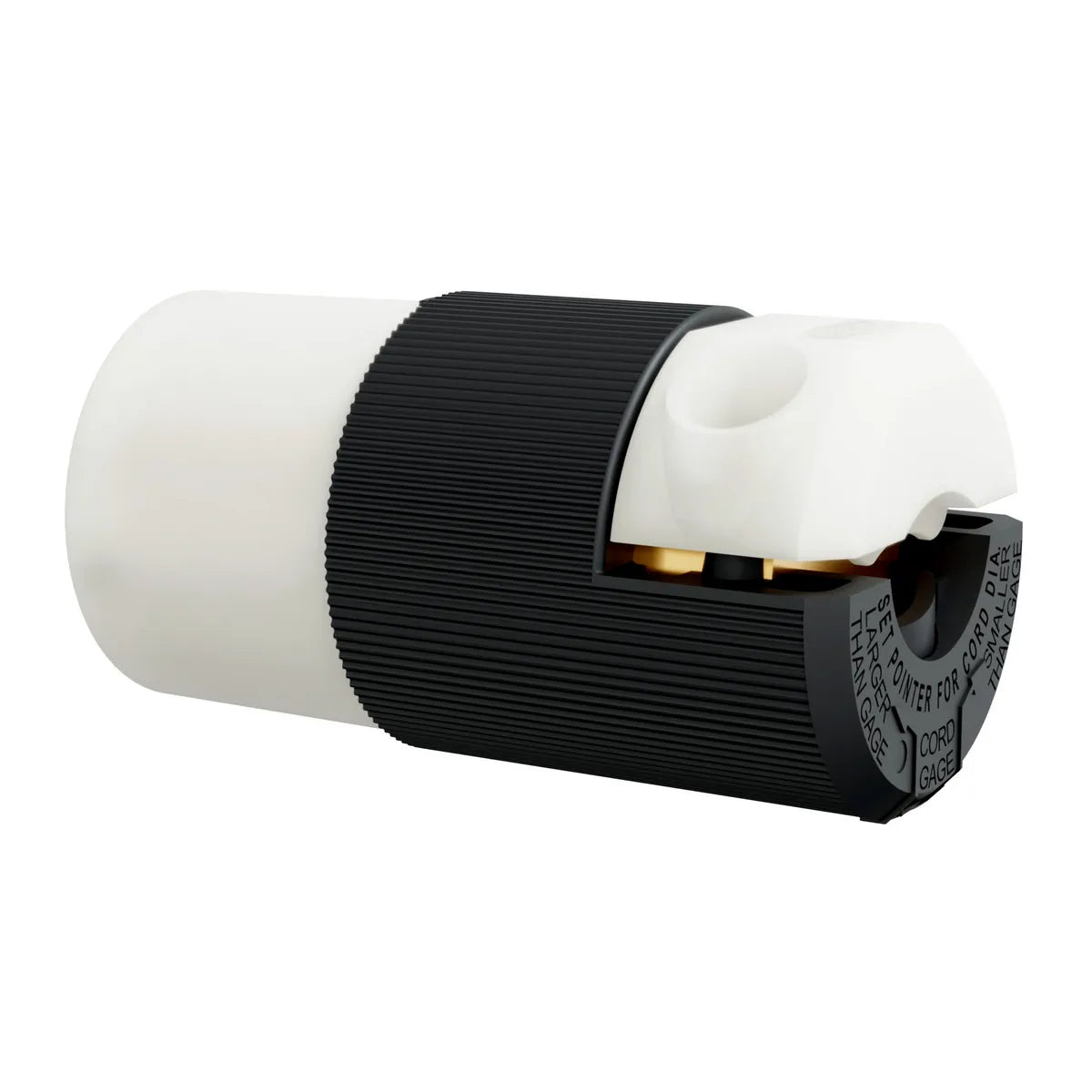

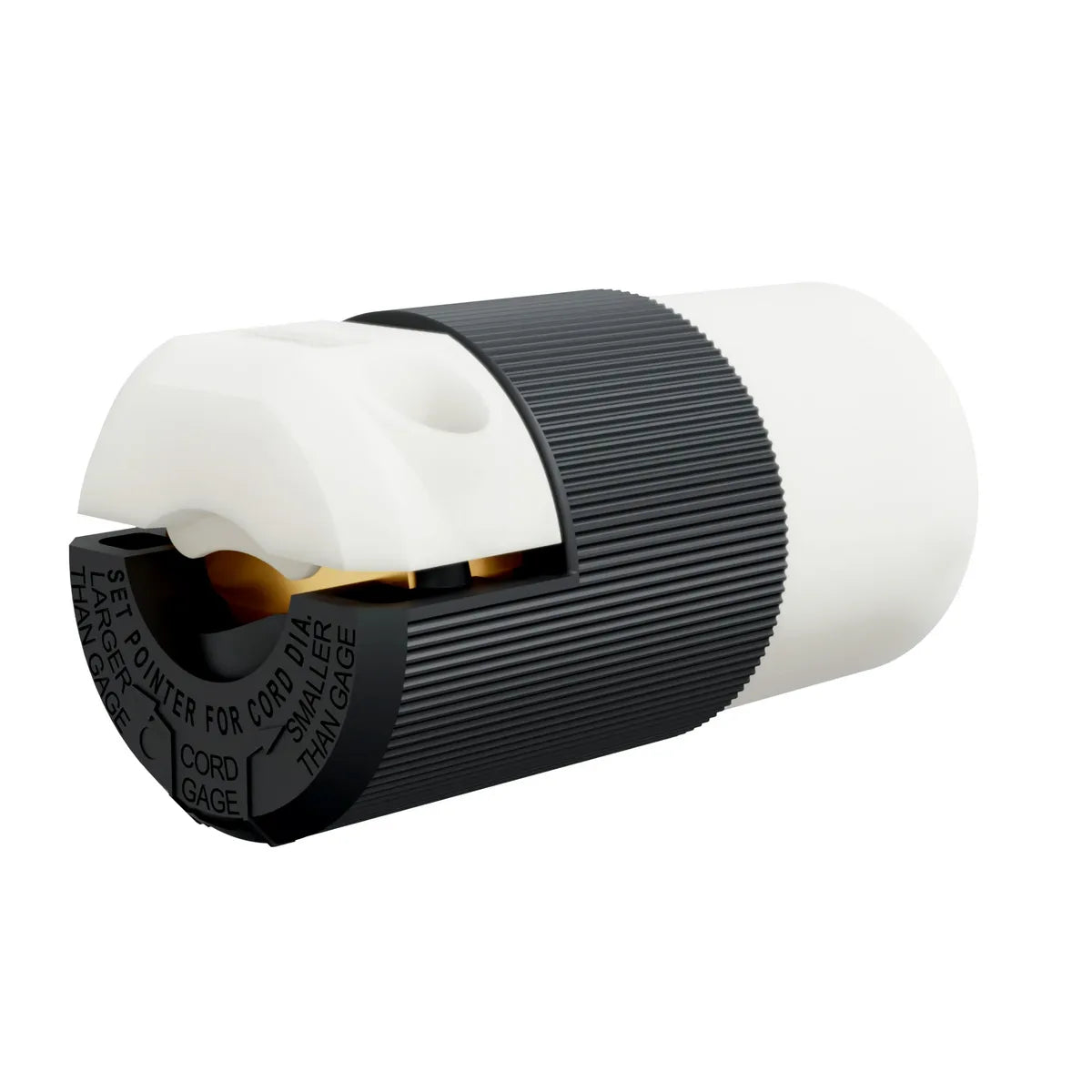

HBL5269C - Hubbell Wiring Device-Kellems - 15A 125V 2 Pole 3 Wire Connector Body Straight Blade Devices
Straight Blade Devices, Female Connector Body, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2- Pole 3-Wire Grounding, 15A 125V, 5-15R, Black and White, Single Pack.
- Receptacle only - does not include reel
- Single Outlet
GENERAL SPECIFICATIONS
| Application |
Industrial/Commercial Grade |
| Catalog Number |
HBL5269C |
| Color |
Black, White |

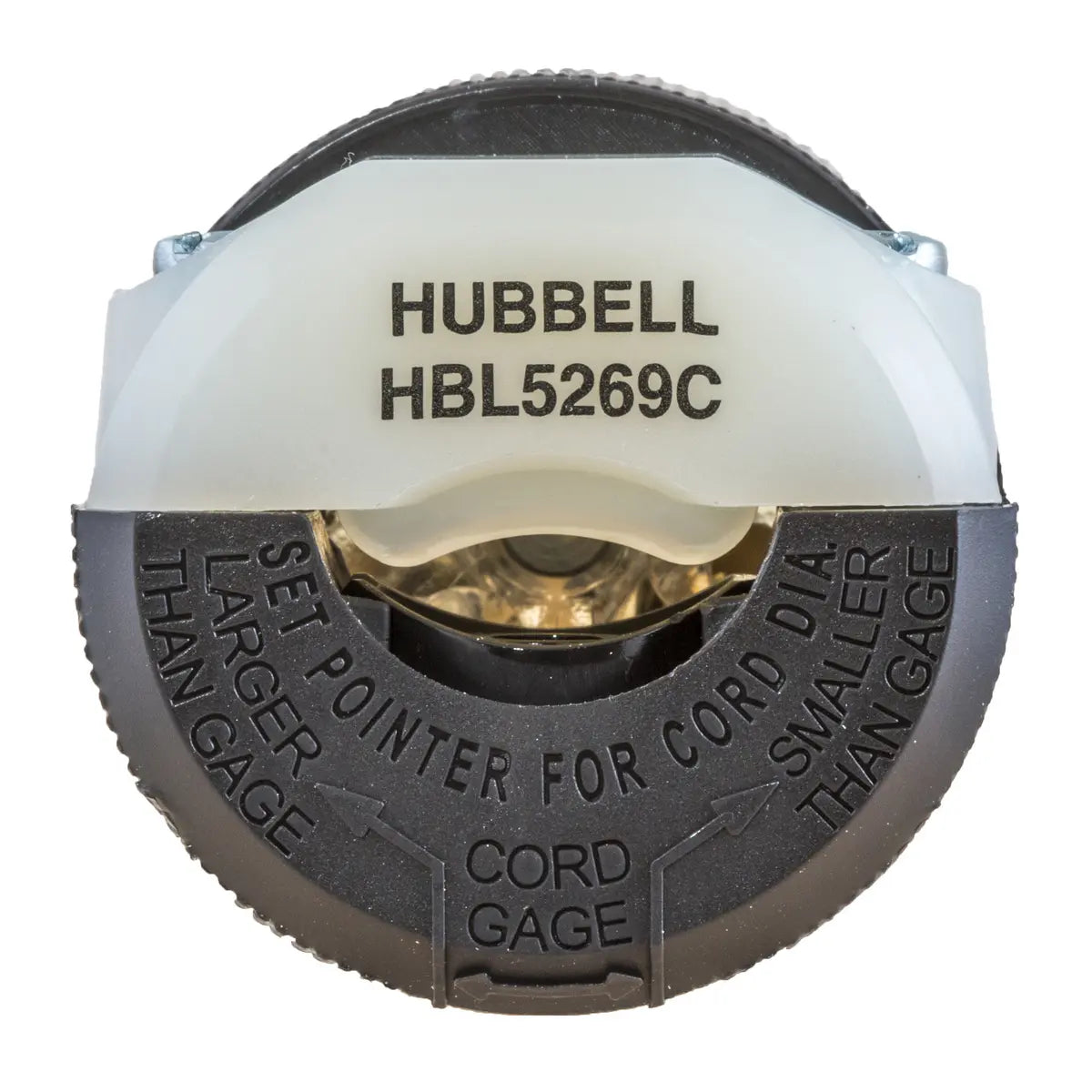

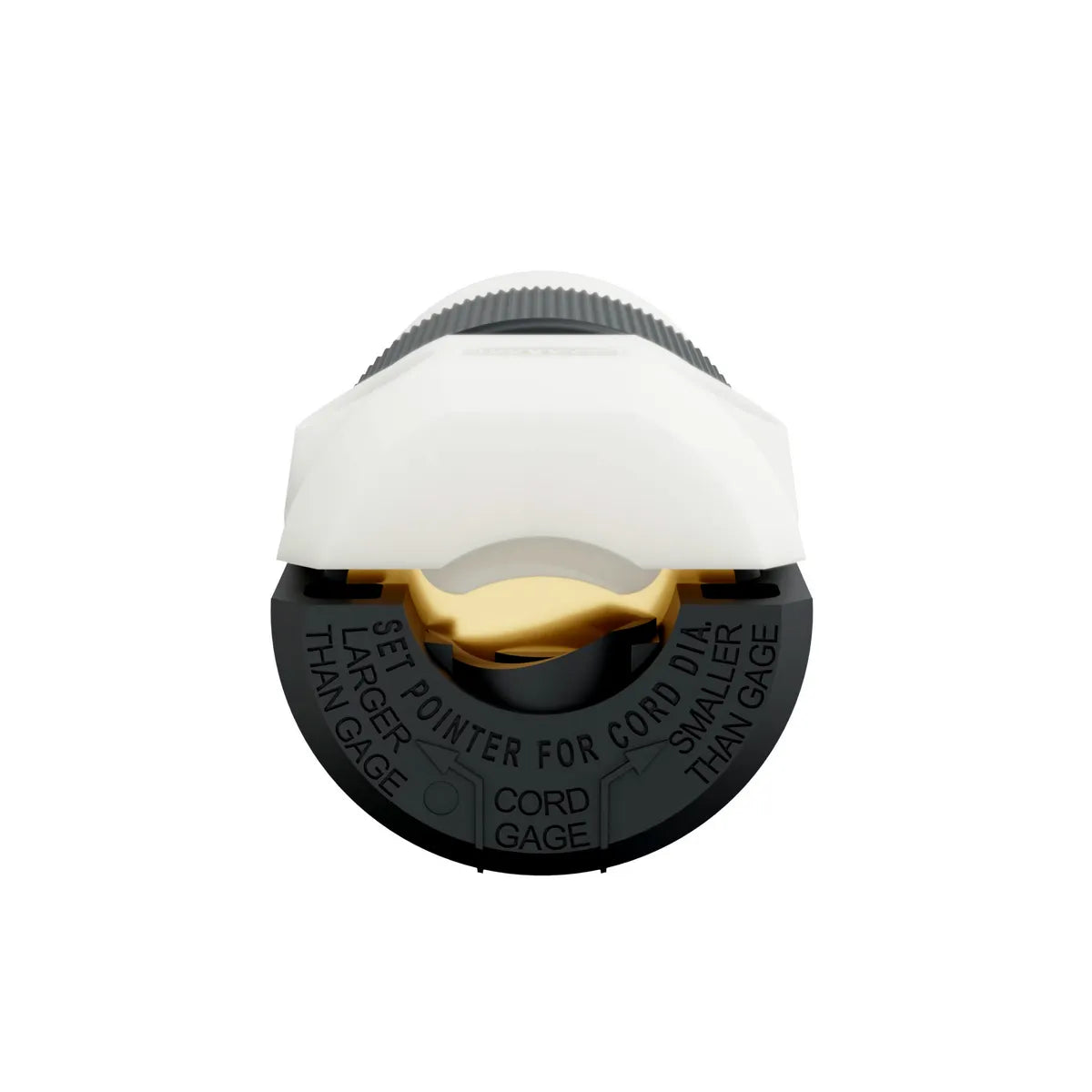

| Cord Range |
0.300"-0.660" (7.6-16.8) |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Horsepower - Maximum |
0.5 |
| Insulation |
Insulated Body |
| Item Type |
Insulgrip Plug |
| Material |
Polycarbonate |
| Material - Mounting Hardware |
Cord Mounted |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - UL 94 HB or better
- Environmental - IP Suitability - IP20
- Environmental - Operating Temperatures - Maximum continuous 75 degC minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
|
| Series |
Insulgrip(R) |
| Specifications |
- Assembly Screws - Nickel plated steel
- Contact Holder - Nylon
- Contacts - .040 in. (1.0) Brass
- Housing/Cord Clamp - Nylon
- Terminal Clamp - Nickel plated steel
- Terminal Retainer - Clear Polycarbonate
- Terminal Screws - #8-32 Brass , multiple drive
|
| Style |
Standard |
| Temperature Rating |
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Type |
Connector Body |
| UPC |
783585173252 |
Dimensions
| Dimensions |
2.65 in x 1.55 in x 2.65 in |
| Display Size |
Standard |
| Height |
2.65 in |
| Length |
2.65 in |
| Weight |
0.15 lb |
| Width |
1.55 in |
Electrical Ratings
| Amperage Rating |
15 A |
| Connectivity |
Screw Terminals |
| Current / Amperage Rating |
15 A |
| Current Rating |
15 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Single Phase |
| Voltage Rating |
125 VAC |
| Voltage Rating Description |
125 V |
Conductor Related
| Conductor Range |
#18 AWG to #10 AWG |
| Number Of Poles |
2-Pole |
| Number Of Wires |
3-Wire |
| Wire Size |
#14 AWG to #10 AWG |
Operational
| Horsepower - Maximum |
0.5 |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - UL 94 HB or better
- Environmental - IP Suitability - IP20
- Environmental - Operating Temperatures - Maximum continuous 75 degC minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
|
| Temperature Rating |
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
Logistics
| Carton Quantity
|
10 |
| Pallet Quantity |
6600 |
