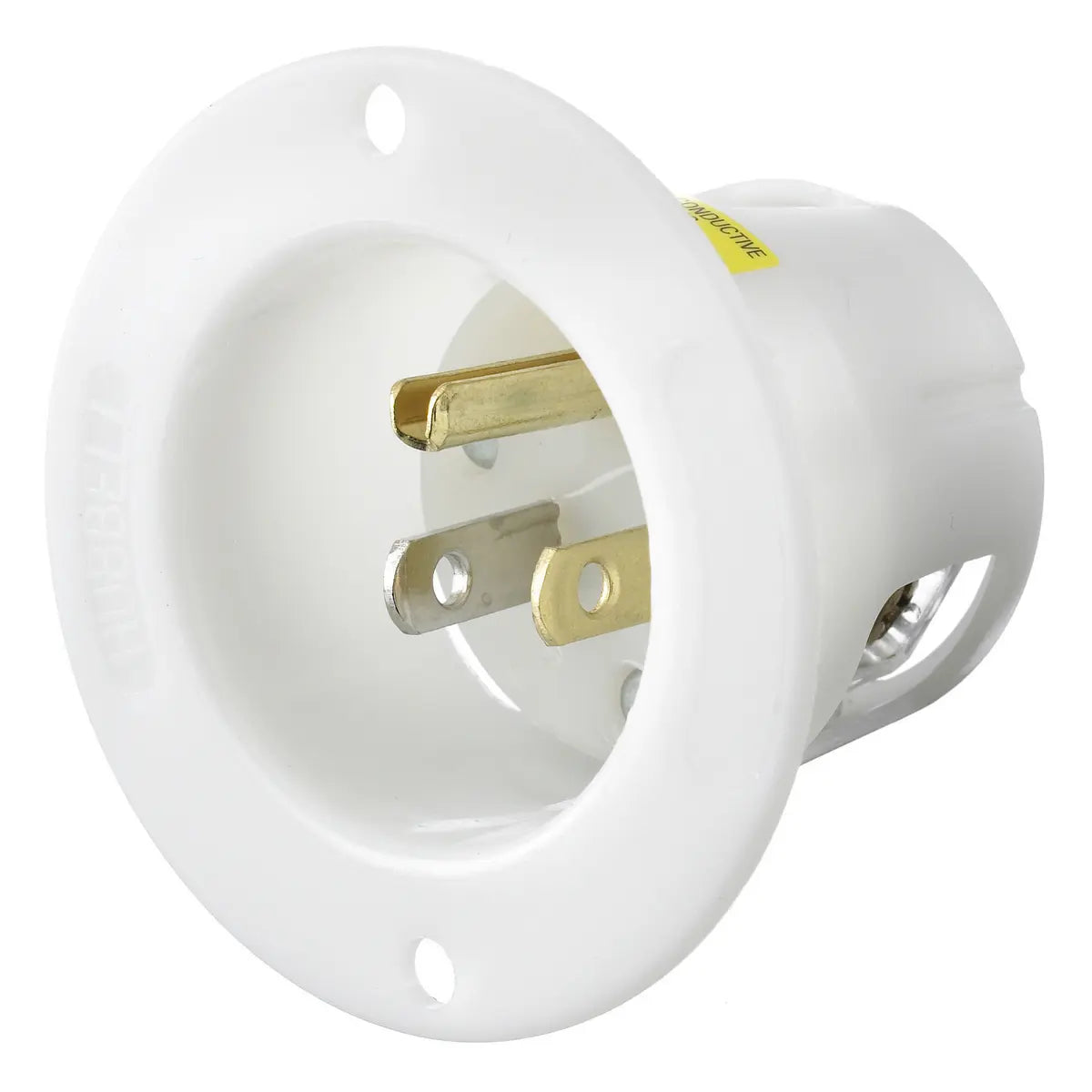

HBL5278C - Hubbell Wiring Device-Kellems - 15A 125V 2 Pole 3 Wire Flanged Inlet Straight Blade Devices
Roll over image to zoom in Click on image to zoom
HBL5278C - Hubbell Wiring Device-Kellems - 15A 125V 2 Pole 3 Wire Flanged Inlet Straight Blade Devices

HBL5278C - Hubbell Wiring Device-Kellems - 15A 125V 2 Pole 3 Wire Flanged Inlet Straight Blade Devices

HubbellSKU: HUBHBL5278C
Price:
$15.26
Stock:
Sold out

Description

HBL5278C - Hubbell Wiring Device-Kellems - 15A 125V 2 Pole 3 Wire Flanged Inlet Straight Blade Devices

Straight Blade Devices, Male Inlets, Flanged, Industrial/Commercial, 15A 125V, 2-Pole 3-Wire Grounding, 5- 15P, White, Single Pack.

  • Impact resistant thermoplastic construction
  • Backwired terminations for ease of installation
  • #8-32 Multiple drive terminal screws
  • Mounting screws included

GENERAL SPECIFICATIONS

Application Extra Heavy Duty Industrial
Catalog Number HBL5278C
Color White
Cord Range 0.230"-0.360" (5.8-18.3)
Environmental Conditions Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator Yes
Horsepower - Maximum 0.5
Insulation Insulated Body
Item Type Standard Single
Material Nylon
Material - Mounting Hardware Screw Mounting
OEM Brand Name Hubbell Wiring Device-Kellems
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 V-2
  • Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #18-#10 AWG copper stranded or solid conductor only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Series Insulgrip®
Specifications
  • Assembly Screws - Steel - nickel plated
  • Blades - Brass
  • Housing - Nylon
  • Mounting Screws - Nickel plated brass
  • Terminal Clamp - Cold rolled steel – nickel plated
  • Terminal Retainer - Clear polycarbonate
  • Terminal Screws - #8-32 Brass, Multiple Drive
Style Standard
Temperature Rating Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type Flanged Inlet
UPC 783585173504



Dimensions

Dimensions 1.71 in x 1.69 in x 1.71 in
Display Size Standard Sized Product
Height 1.71 in
Length 1.71 in
Weight 0.1 lb
Width 1.69 in



Electrical Ratings

Amperage Rating 15 A
Connectivity Screw Terminals
Current / Amperage Rating 15 A
Current Rating 15 A
Dielectric Strength Withstands 2,000V minimum
Phase Single Phase
Voltage Rating 125 VAC
Voltage Rating Description 125 V
Wattage 1875 W



Conductor Related

Conductor Range #18 AWG to #10 AWG
Number Of Poles 2-Pole
 Number Of Wires 3-Wire
Wire Size #18 AWG to #12 AWG



Operational

Horsepower - Maximum  0.5
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 V-2
  • Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #18-#10 AWG copper stranded or solid conductor only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Temperature Rating Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.


Logistics

 Carton Quantity 10
Pallet Quantity 4500



PRODUCT DATASHEET

Wiring HBL5278C Specification Sheet
