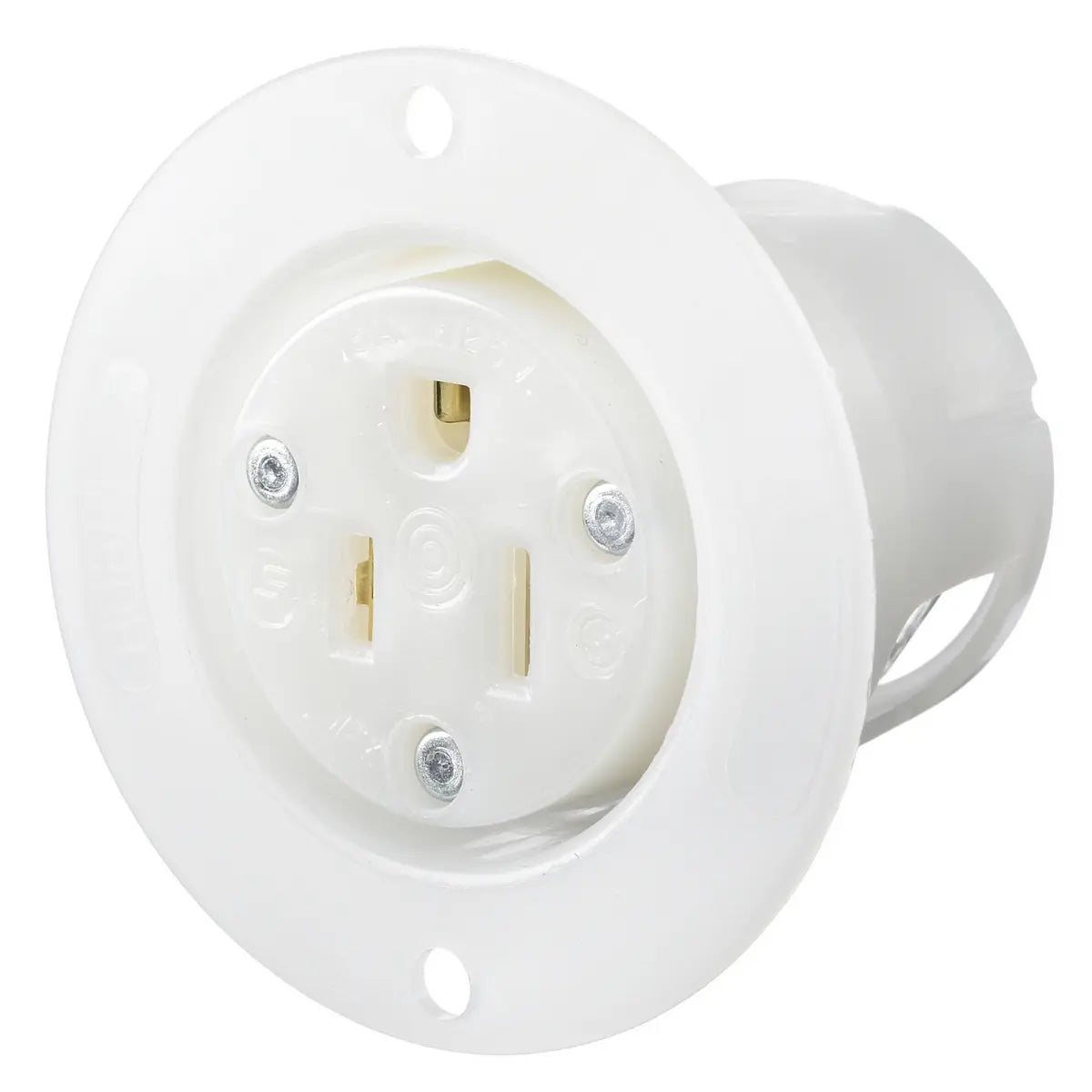

HBL5279C - Hubbell Wiring Device-Kellems - 15A 125V 2 Pole 3 Wire Flanged Inlet Straight Blade Devices
Straight Blade Devices, Inlets, Flanged, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, White, Single Pack.
- Impact resistant thermoplastic construction
- Backwired terminations for ease of installation
- #8-32 Multiple drive terminal screws
- Mounting screws included
GENERAL SPECIFICATIONS
| Application |
Heavy Duty |
| Catalog Number |
HBL5279C |
| Color |
White |
| Cord Range |
0.230"-0.720" (5.8-18.3) |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Item Type |
Flanged Single |
| Material |
Nylon |
| Material - Mounting Hardware |
Screw Mounting |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Specifications |
- Assembly Screws - Steel - nickel plated
- Contacts - Brass
- Housing - Nylon
- Mounting Screws - Nickel plated brass
- Terminal Clamp - Cold rolled steel - nickel plated
- Terminal Retainer - Clear polycarbonate
- Terminal Screws - #8-32 Brass, Multiple Drive
|
| Style |
Finder Groove Face |
| Type |
Flanged Receptacle |
| UPC |
783585173603 |
Dimensions
| Dimensions |
1.71 in x 1.69 in x 1.71 in |
| Display Size |
Standard Sized Product |
| Height |
1.71 in |
| Length |
1.71 in |
| Weight |
0.15 lb |
| Width |
1.69 in |
Electrical Ratings
| Amperage Rating |
15 A |
| Connectivity |
Screw Terminals |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Single Phase |
| Voltage Rating |
125 VAC |
| Wattage |
1875 W |
Conductor Related
| Number Of Wires
|
3-Wire |
| Wire Size |
#18 AWG to #10 AWG |
Logistics
| Carton Quantity
|
10 |
| Pallet Quantity |
4050 |
