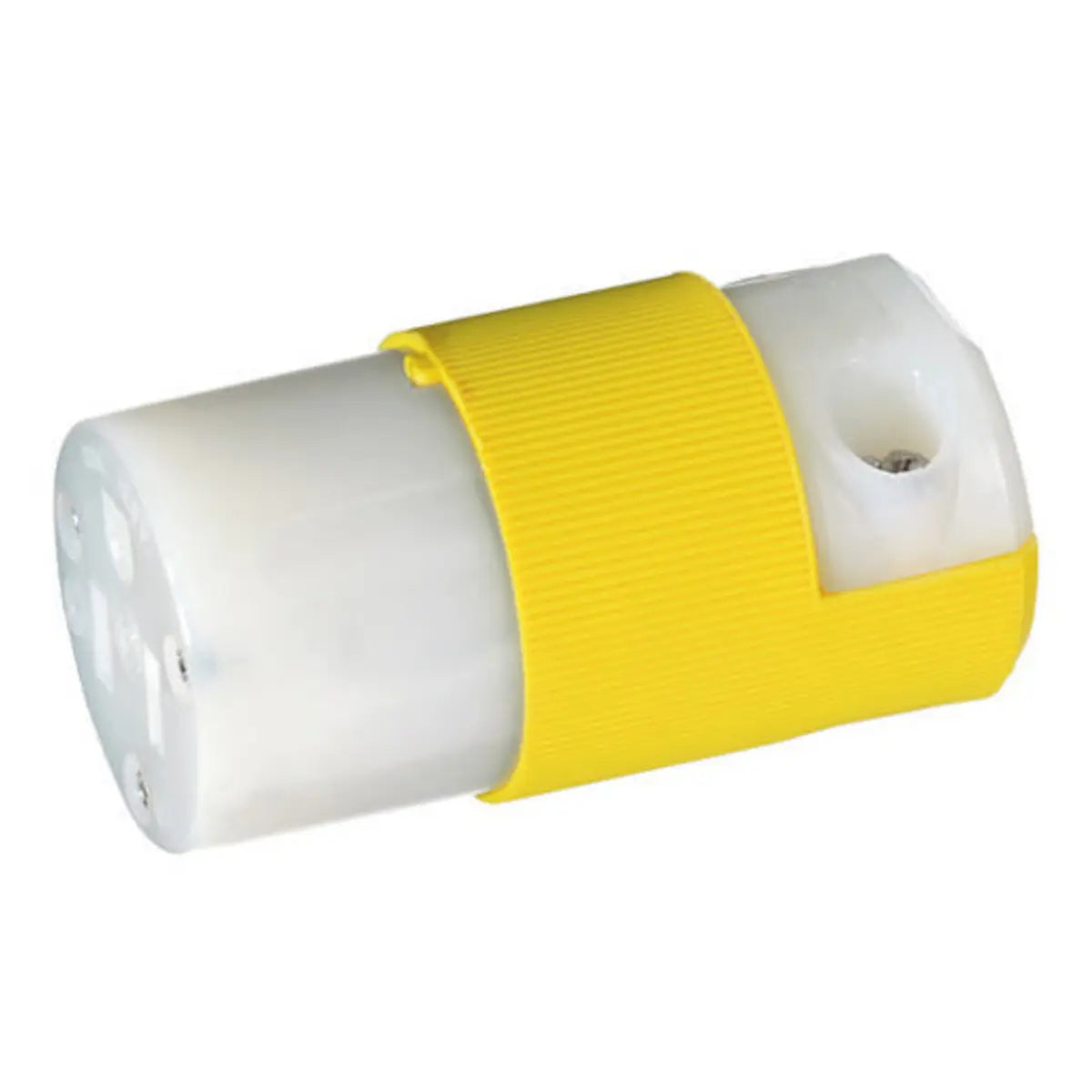

HBL52CM69C - Hubbell Wiring Device-Kellems - 15A 125V 2 Pole 3 Wire Connector Body Straight Blade Devices
Roll over image to zoom in Click on image to zoom
HBL52CM69C - Hubbell Wiring Device-Kellems - 15A 125V 2 Pole 3 Wire Connector Body Straight Blade Devices

HBL52CM69C - Hubbell Wiring Device-Kellems - 15A 125V 2 Pole 3 Wire Connector Body Straight Blade Devices

HubbellSKU: HUBHBL52CM69C
Price:
$22.55
Stock:
Sold out

Description

HBL52CM69C - Hubbell Wiring Device-Kellems - 15A 125V 2 Pole 3 Wire Connector Body Straight Blade Devices

Straight Blade Devices, Female Connector Body, Corrosion Resistant, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding , 15A 125V, 5-15R, Yellow, Single Pack.

  • Individual wiring terminals completely enclosed
  • Powerful, offsetting cord grips clamp on individual conductors
  • Roomy wiring chamber provides ample space for wiring
  • Corrosion Resistant

GENERAL SPECIFICATIONS

Application Industrial/Commercial Grade
Catalog Number HBL52CM69C
Color Yellow
Cord Range 0.250"-0.655" (6.4-16.6)
Environmental Conditions Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator Yes
Horsepower - Maximum 0.5
Insulation Insulated Body
Item Type Insulgrip Plug
Material Polycarbonate
Material - Mounting Hardware Cord Mounted
OEM Brand Name Hubbell Wiring Device-Kellems
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 HB or better
  • Environmental - IP Suitability - IP20
  • Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
  • Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Series Insulgrip
Specifications
  • Assembly Screws - Stainless steel
  • Contact Holder - Nylon
  • Contacts - .040 in. (1.0) Brass
  • Housing - Nylon
  • Terminal Clamp - Nickel plated steel
  • Terminal Retainer - Clear Polycarbonate
  • Terminal Screws - #8-32 Brass , multiple drive
Style Corrosion Resistant
Type Connector Body
UPC 783585161600



Dimensions

Dimensions 2.78 in x 1.52 in x 2.78 in
Display Size Standard
Height 2.78 in
Length 2.78 in
Weight 0.2 lb
Width 1.52 in



Electrical Ratings

Amperage Rating 15 A
Connectivity Screw Terminals
Current / Amperage Rating 15 A
Current Rating 15 A
Dielectric Strength Withstands 2,000V minimum
Phase Single Phase
Voltage Rating 125 VAC
Voltage Rating Description 125 V



Conductor Related

Conductor Range #14 AWG to #12 AWG
Number Of Poles 2-Pole
 Number Of Wires 3-Wire
Wire Size #18 AWG to #10 AWG



Operational

Horsepower - Maximum  0.5
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 HB or better
  • Environmental - IP Suitability - IP20
  • Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
  • Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Temperature Rating Max Continuous- 75 Degrees C, Minimum- -40 Without Impact


Logistics

 Carton Quantity 10
Pallet Quantity 840



PRODUCT DATASHEET

Wiring HBL52CM69C Specification Sheet
