Description

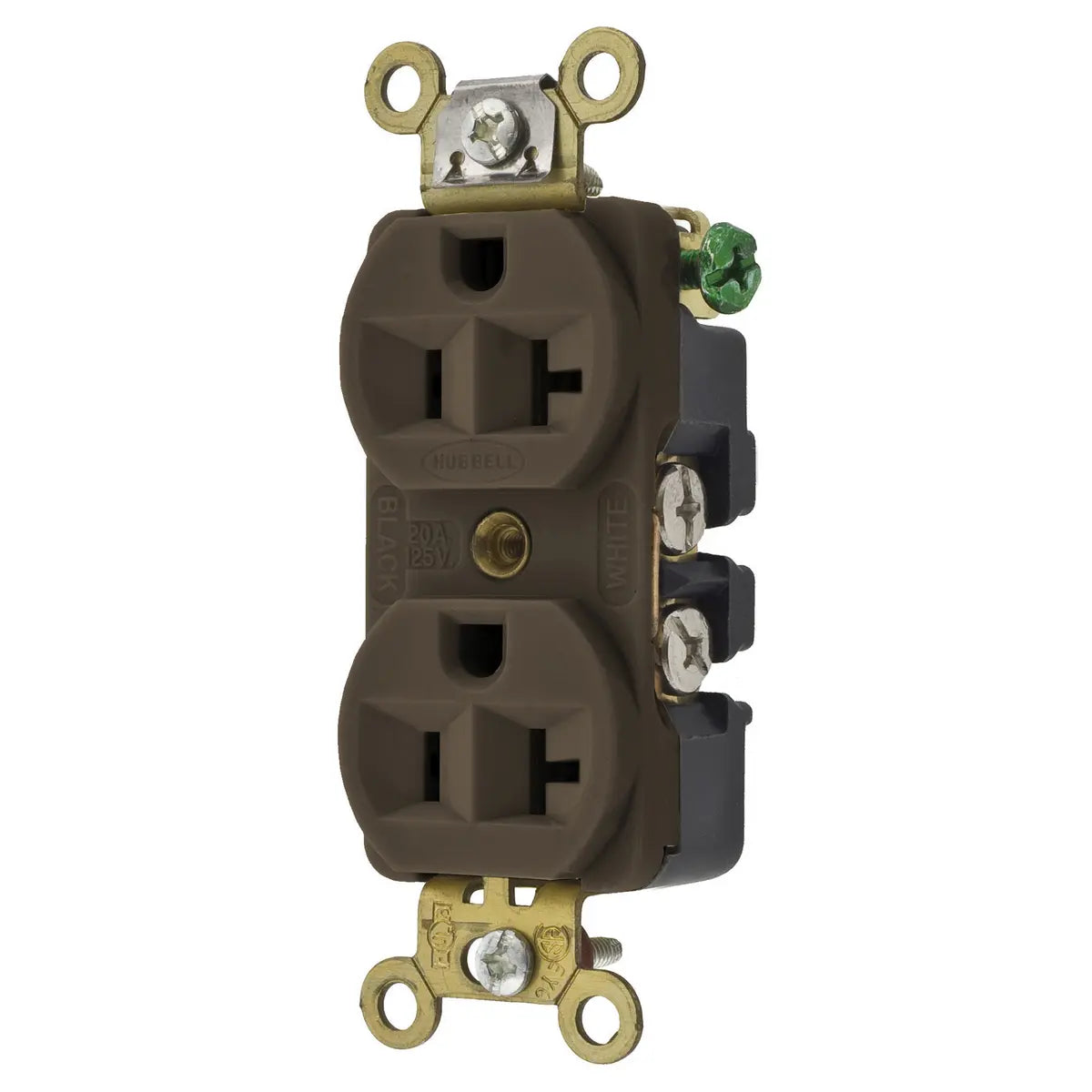

HBL5352 - Hubbell Wiring Device-Kellems - 20A 125V 2 Pole 3 Wire Duplex Receptacle Straight Blade Devices
Straight Blade Devices, Receptacles, Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Brown, Single Pack.
- Slender/compact design
- Brass Mounting Strap
- Triple wipe contacts
GENERAL SPECIFICATIONS
| Application | Extra Heavy Duty Compact |
| Catalog Number | HBL5352 |
| Color | Brown |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator | Yes |
| Horsepower - Maximum | 1 |
| Item Type | Traditional Duplex |
| Material - Mounting Hardware | Screw Mounting |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
| Series | Heavy Duty |
| Specifications |
|
| Style | Finder Groove Face |
| Type | Standard Duplex |
| UPC | 783585434964 |
Dimensions
| Dimensions | 3.28 in x 1.33 in x 1.05 in |
| Display Size | Standard Sized Product |
| Height | 1.05 in |
| Length | 3.28 in |
| Weight | 0.2 lb |
| Width | 1.33 in |
Electrical Ratings
| Amperage Rating | 20 A |
| Connectivity | Back and Side Wired Screw Terminals |
| Current / Amperage Rating | 20 A |
| Current Rating | 20 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Phase | Single Phase |
| Voltage Rating | 125 VAC |
| Voltage Rating Description | 125 V |
| Wattage | 2500 W |
Conductor Related
| Number Of Poles | 2-Pole |
| Number Of Wires | 3-Wire |
| Wire Size | #12 AWG to #10 AWG |
Operational
| Horsepower - Maximum | 1 |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
Logistics
| Carton Quantity | 10 |
| Pallet Quantity | 3600 |
