Description

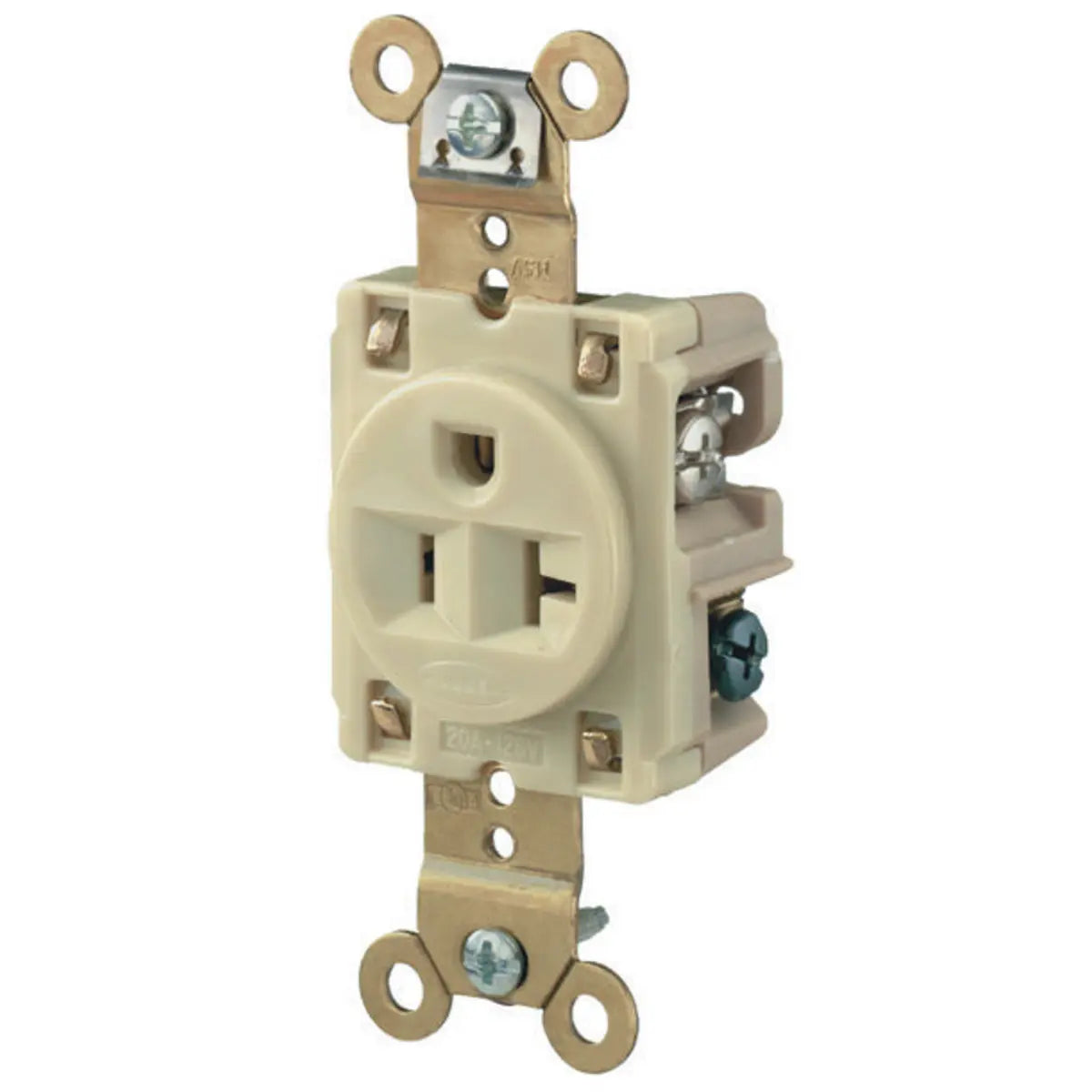

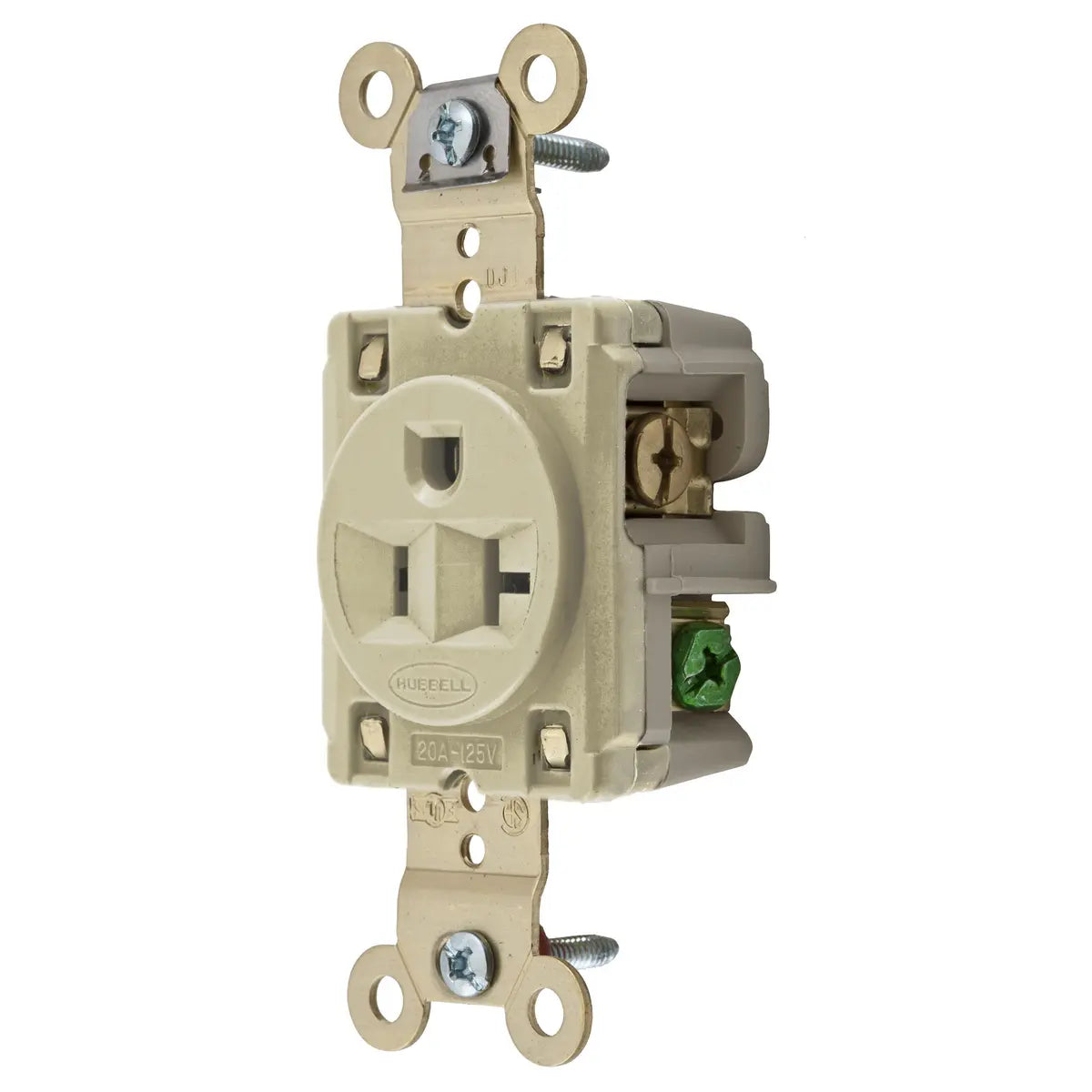

HBL5361I - Hubbell Wiring Device-Kellems - 20A 125V 2 Pole 3 Wire Single Receptacle Straight Blade Devices
Straight Blade Devices, Receptacles, Single, Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Ivory, Single Pack.
HBL® Extra Heavy Duty Max Industrial Series - Hubbell’s commitment to quality continually reinforces a philosophy of unrivaled performance. No Hubbell device exemplifies this philosophy more than the HBL5262. While all Hubbell receptacles are designed and manufactured to withstand even the harshest environments, none match the total performance of the HBL5262. Whether in a factory, office building or school, the Hubbell HBL5262 is the receptacle of choice when people are depending on the safety and reliability of a receptacle. The safest, most reliable design for a low resistance flow of fault currents. Oversized “bell" shaped ground contacts, along with nickel plated steel retaining shields, help minimize damage to the grounding system during abrupt pullout.
- One-piece brass integral ground strap
- Unique bypass contact design
GENERAL SPECIFICATIONS
| Application | Extra Heavy Duty Specification Grade |
| Catalog Number | HBL5361I |
| Color | Ivory |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator | Yes |
| Horsepower - Maximum | 1 |
| Item Type | Single |
| Material - Mounting Hardware | Screw Mounting |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
| Series | Extra Heavy Duty |
| Specifications |
|
| Style | Finder Groove Face |
| Type | Single Receptacle |
| UPC | 783585013916 |
Dimensions
| Dimensions | 3.28 in x 1.63 in x 1.19 in |
| Display Size | Standard Sized Product |
| Height | 1.19 in |
| Length | 3.28 in |
| Weight | 0.25 lb |
| Width | 1.63 in |
Electrical Ratings
| Amperage Rating | 20 A |
| Connectivity | Back and Side Wired Screw Terminals |
| Current / Amperage Rating | 20 A |
| Current Rating | 20 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Phase | Single Phase |
| Voltage Rating | 125 VAC |
| Voltage Rating Description | 125 V |
| Wattage | 2500 W |
Conductor Related
| Number Of Poles | 2-Pole |
| Number Of Wires | 3-Wire |
| Wire Size | #12 AWG to #10 AWG |
Operational
| Horsepower - Maximum | 1 |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
Logistics
| Carton Quantity | 10 |
| Pallet Quantity | 4500 |
