HBL5369C - Hubbell Wiring Device-Kellems 20A 125V 2 Pole 3 Wire Connector Body Straight Blade Devices

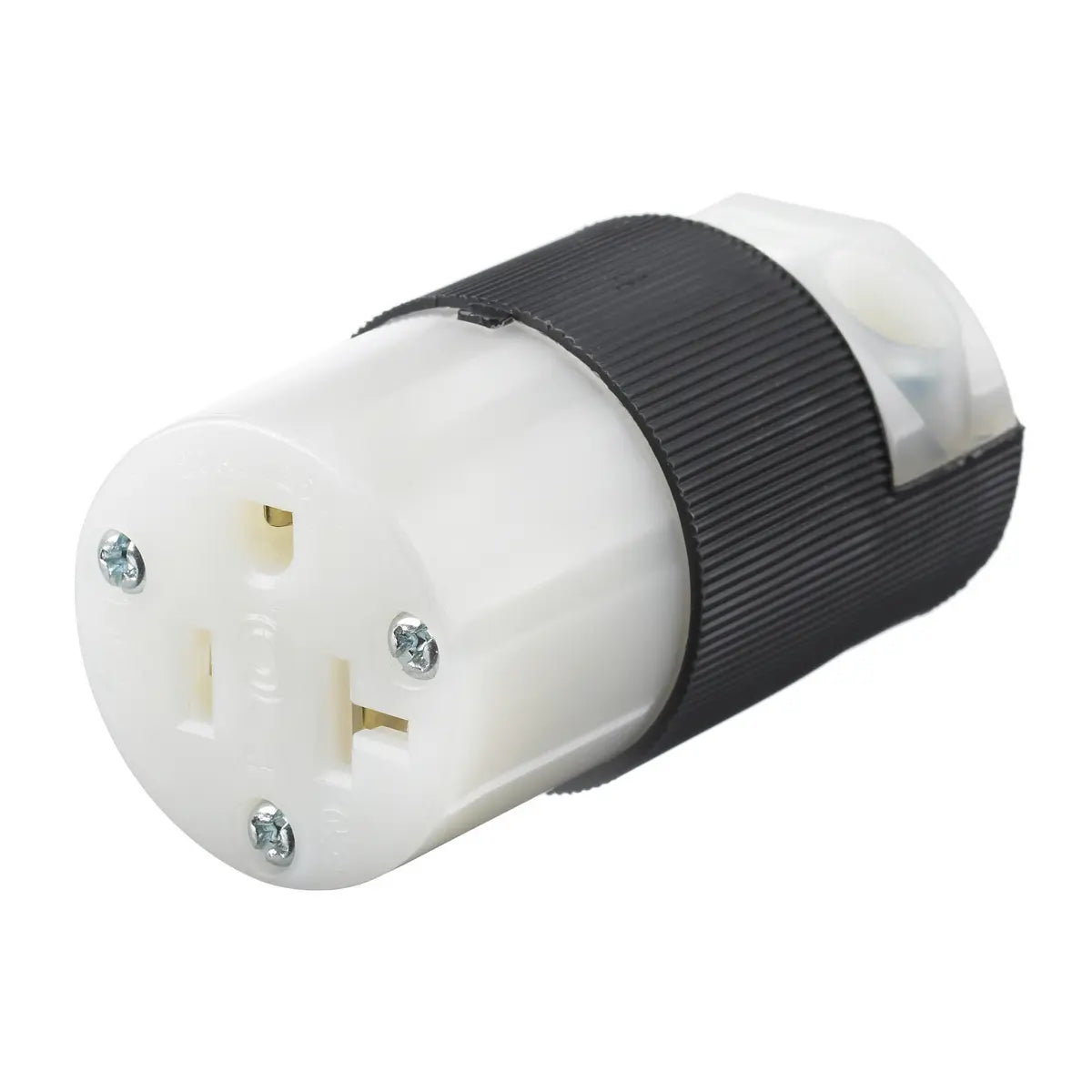

Straight Blade Devices, Female Connector Body, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2- Pole 3-Wire Grounding, 20A 125V, 5-20R, Black and White, Single Pack.
- Individual wiring terminals completely enclosed
- Powerful, offsetting cord grips clamp on individual conductors
- Fast lead assembly screws
- Beveled housing prevents snagging
GENERAL SPECIFICATIONS
| Application |
Industrial/Commercial Grade |
| Catalog Number |
HBL5369C |
| Color |
Black, White |
| Cord Range |
0.250"-0.655" (6.4-16.6) |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Horsepower - Maximum |
1 |
| Insulation |
Insulated Body |
| Item Type |
Insulgrip Plug |
| Material |
Polycarbonate |
| Material - Mounting Hardware |
Cord Mounted |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - UL 94 HB or better
- Environmental - IP Suitability - IP20
- Environmental - Operating Temperatures - Maximum continuous 75 degC minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
|
| Series |
Insulgrip(R) |
| Specifications |
- Assembly Screws - Nickel plated steel
- Contact Holder - Nylon
- Contacts - .040 in. (1.0) Brass
- Housing/Cord Clamp - Nylon
- Terminal Clamp - Nickel plated steel
- Terminal Retainer - Clear Polycarbonate
- Terminal Screws - #8-32 Brass , multiple drive
|
| Style |
Standard |
| Temperature Rating |
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Type |
Connector Body |
| UPC |
783585174259 |
Dimensions
| Dimensions |
2.78 in x 1.41 in x 1.53 in |
| Display Size |
Standard |
| Height |
1.53 in |
| Length |
2.78 in |
| Weight |
0.15 lb |
| Width |
1.41 in
|
Electrical Ratings
| Amperage Rating |
20 A |
| Connectivity |
Screw Terminals |
| Current / Amperage Rating |
20 A |
| Current Rating |
20 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Single Phase |
| Voltage Rating |
125 VAC |
| Voltage Rating Description |
125 V |
Conductor Related
| Conductor Range |
#18 AWG to #10 AWG |
| Number Of Poles |
2-Pole |
| Number Of Wires |
3-Wire |
| Wire Size |
#18 AWG to #10 AWG |
Operational
| Horsepower - Maximum |
1 |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - UL 94 HB or better
- Environmental - IP Suitability - IP20
- Environmental - Operating Temperatures - Maximum continuous 75 degC minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
|
| Temperature Rating |
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
Logistics
| Carton Quantity
|
10 |
| Pallet Quantity |
4000 |
PRODUCT DATASHEET
Wiring HBL5369C Specification Sheet
