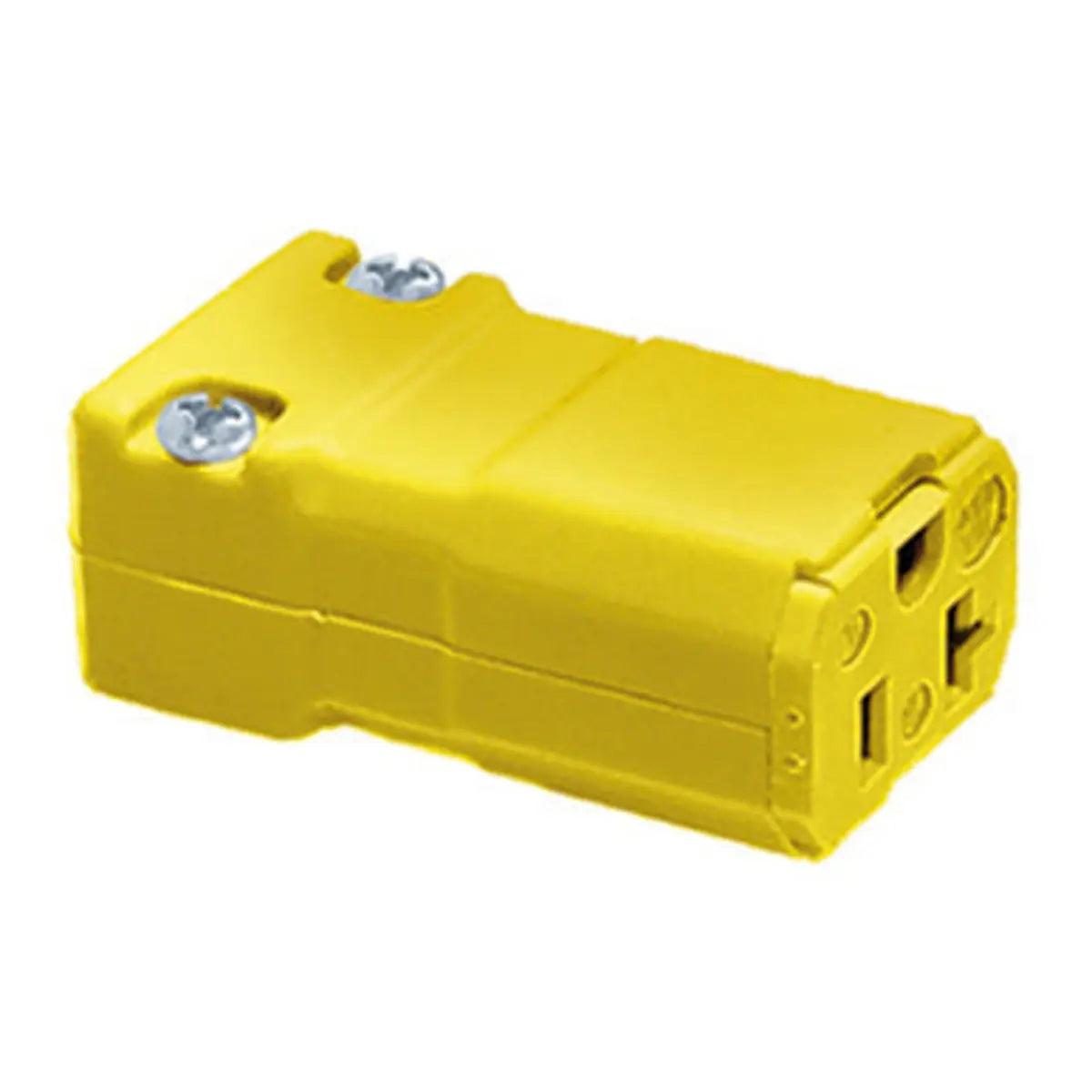

HBL5369VY - Hubbell Wiring Device-Kellems 20A 125V 2 Pole 3 Wire Connector Body Straight Blade Devices
Straight Blade Devices, Female Connector Body, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 20A 125V, 5-20R, Yellow, Single Pack.
- Hinged one piece body design for easy assembly
- Powerful, offsetting cord grips clamp on individual conductors
- Assembly screws are captive and will not fall out while wiring
GENERAL SPECIFICATIONS
| Application |
Industrial/Commercial |
| Catalog Number |
HBL5369VY |
| Color |
Yellow |
| Cord Range |
0.300"-0.660" (7.6-16.8) |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Horsepower - Maximum |
1 |
| Insulation |
Insulated Body |
| Item Type |
Valise |
| Material |
Nylon |
| Material - Mounting Hardware |
Cord Mounted |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical:Current Interrupting: Certified for current interrupting at full rated current
- Dielectric Voltage: Withstands 2,000V minimum
- Mechanical :Terminal Accommodation #18-#12 AWG stranded copper wire only
- Terminal Identification: Terminals identified in accordance with UL 498 and CSA
- Environmental :Flammability: UL 94 HB or better
- IP Suitability: IP20
- Operating Temperatures: Maximum continuous 75 degC
- minimum -40 degC (w/o impact)
|
| Series |
Valise(R) |
| Specifications |
- Assembly Screws - Plated Steel
- Assembly Screws - Plated steel
- Cable Inserts - PPO
- Contacts - Brass
- Housing - Nylon
- Terminal Clamp - Nickel plated steel
- Terminal Screws - #8-32 Brass , multiple drive
|
| Style |
Standard |
| Temperature Rating |
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Type |
Connector Body |
| UPC |
783585013176 |
Dimensions
| Dimensions |
2.68 in x 1.32 in x 2.68 in |
| Display Size |
Standard |
| Height |
2.68in |
| Length |
2.68in |
| Weight |
0.15 lb |
| Width |
1.32 in |
Electrical Ratings
| Amperage Rating |
20 A |
| Connectivity |
Screw Terminals |
| Current / Amperage Rating |
20 A |
| Current Rating |
20 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Single Phase |
| Voltage Rating |
125 VAC |
| Voltage Rating Description |
125 V |
Conductor Related
| Conductor Range |
#18 AWG to #12 AWG |
| Number of Conductors |
3-Wire |
| Number Of Poles |
2-Pole |
| Number Of Wires |
3-Wire |
| Wire Size |
#18 AWG to #12 AWG |
Operational
| Horsepower - Maximum |
1 |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical:Current Interrupting: Certified for current interrupting at full rated current
- Dielectric Voltage: Withstands 2,000V minimum
- Mechanical :Terminal Accommodation #18-#12 AWG stranded copper wire only
- Terminal Identification: Terminals identified in accordance with UL 498 and CSA
- Environmental :Flammability: UL 94 HB or better
- IP Suitability: IP20
- Operating Temperatures: Maximum continuous 75 degC
- minimum -40 degC (w/o impact)
|
| Temperature Rating |
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
|
Logistics
| Carton Quantity
|
10 |
| Pallet Quantity |
6000 |
