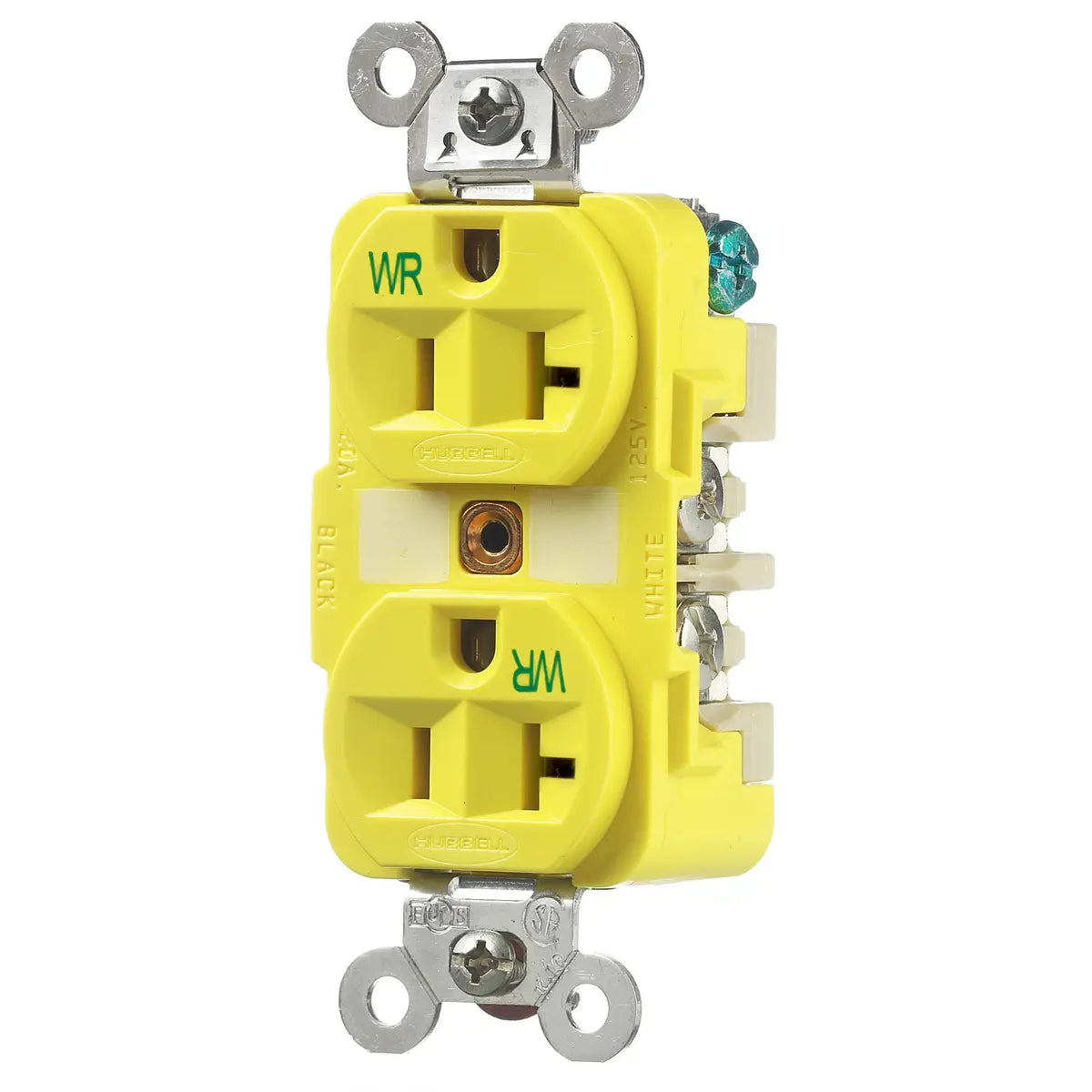

HBL53CM62 - Hubbell Wiring Device-Kellems - 20A 125V 2 Pole 3 Wire Duplex Receptacle Straight Blade Devices
Roll over image to zoom in Click on image to zoom
HBL53CM62 - Hubbell Wiring Device-Kellems - 20A 125V 2 Pole 3 Wire Duplex Receptacle Straight Blade Devices

HBL53CM62 - Hubbell Wiring Device-Kellems - 20A 125V 2 Pole 3 Wire Duplex Receptacle Straight Blade Devices

HubbellSKU: HUBHBL53CM62
Price:
$32.04
Stock:
Sold out

Description

HBL53CM62 - Hubbell Wiring Device-Kellems - 20A 125V 2 Pole 3 Wire Duplex Receptacle Straight Blade Devices

Straight Blade Devices, Receptacles, Duplex, Marine Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Yellow, Single Pack, Chem-Marine.

  • Back wired ground terminal allows faster, easier installation
  • One-piece brass integral ground strap
  • Finder Groove Face
  • Deep body design with circuit ID face
  • Corrosion resistant

Corrosion Resistant

GENERAL SPECIFICATIONS

Application Marine Wiring Devices
Catalog Number HBL53CM62
Color Yellow
Environmental Conditions Corrosion resistant
EU RoHS Indicator Yes
Horsepower - Maximum 1
Item Type Traditional Duplex
Material - Mounting Hardware Screw Mounting
OEM Brand Name Hubbell Wiring Device-Kellems
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0
  • Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Series HBL Extra Heavy Duty
Specifications
  • Automatic Self-grounding Clip - Stainless steel
  • Base - PBT
  • By-Pass Power Contacts - .036". (.9) Nickel plated brass
  • Clamping Plate - Nickel plated brass
  • Face - Nylon
  • Ground Contacts - .031 in. (.8) Brass
  • Mounting Screws - Stainless steel
  • Mounting Strap - .050 in. (1.3) Nickel plated brass
  • Terminal Screws - Plated brass
Style
  • Corrosion Resistant
  • Finder Groove Face
Type Duplex Receptacle
UPC 783585411064



Dimensions

Dimensions 3.28 in x 1.65 in x 1.19 in
Display Size Standard Sized Product
Height 1.19 in
Length 3.28 in
Weight 0.35 lb
Width 1.65 in



Electrical Ratings

Amperage Rating 20 A
Connectivity Back and Side Wired Screw Terminals
Current / Amperage Rating 20 A
Current Rating 20 A
Dielectric Strength Withstands 2,000V minimum
Phase Single Phase
Voltage Rating 125 VAC
Voltage Rating Description 125 V
Wattage 2500 W



Conductor Related

Number Of Wires 3-Wire
Wire Size #12 AWG to #10 AWG



Operational

Horsepower - Maximum  1
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0
  • Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Temperature Rating Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact


Logistics

 Carton Quantity 10



PRODUCT DATASHEET

Wiring HBL53CM62 Specification Sheet
