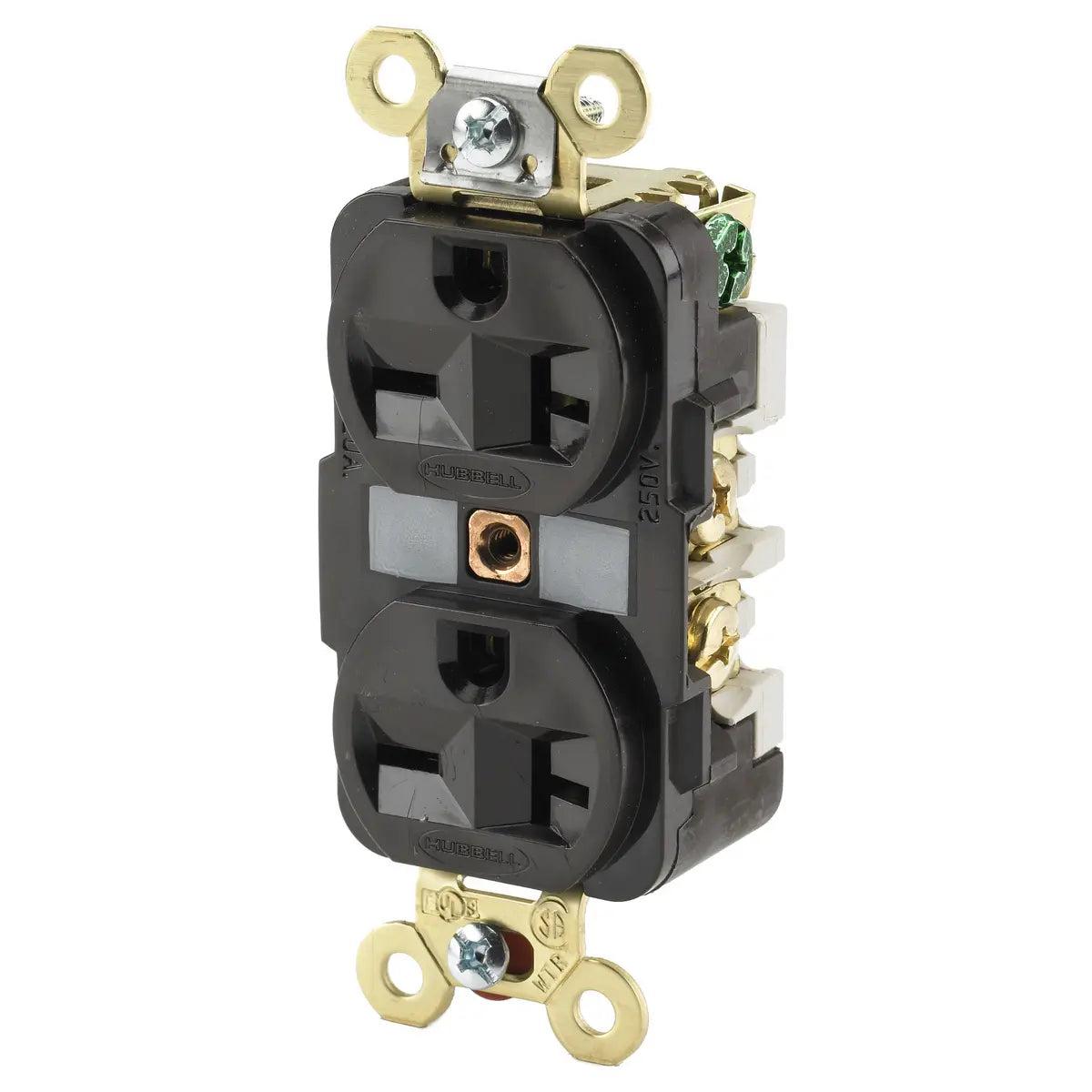

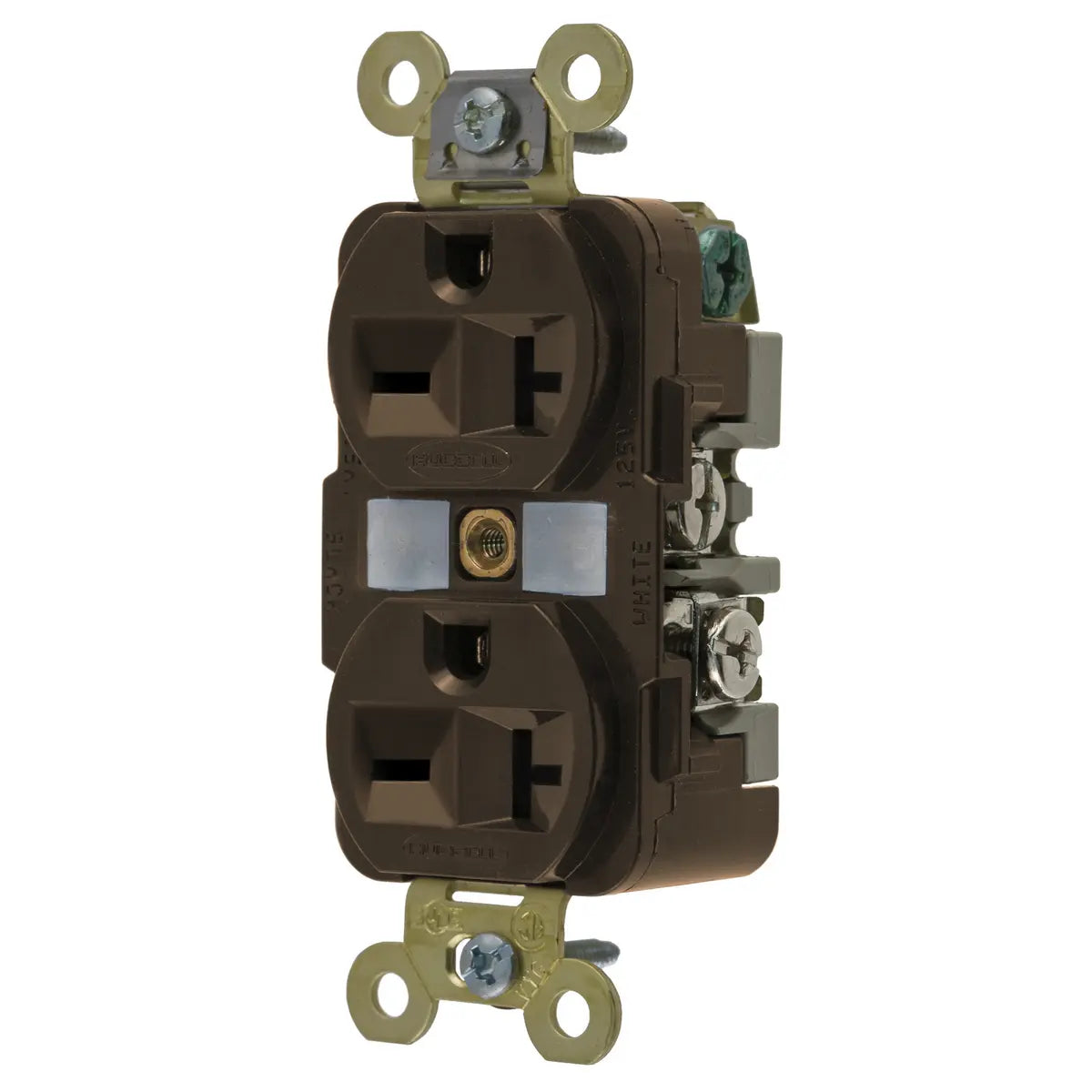

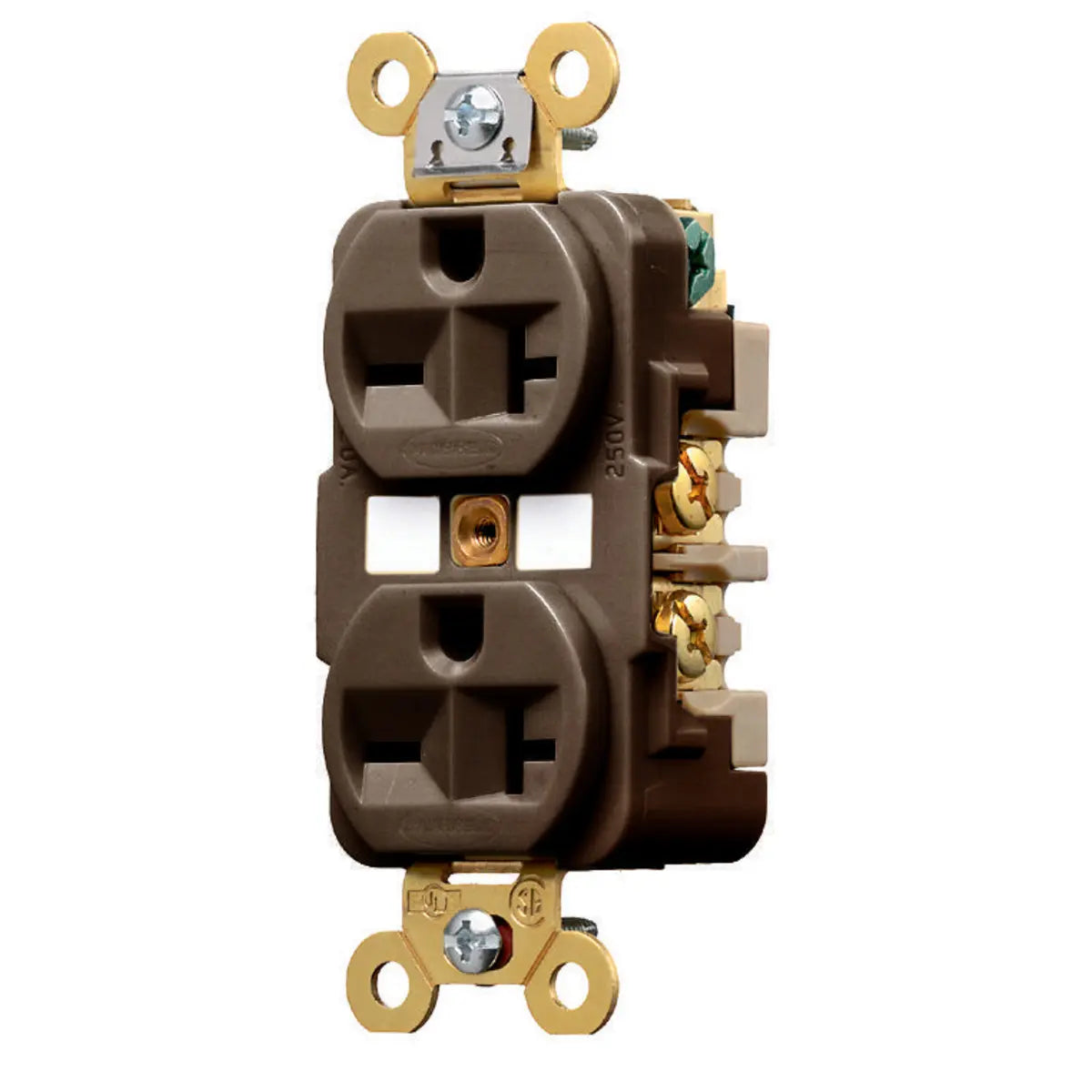

HBL5462 - Hubbell Wiring Device-Kellems - 20A 250V 2 Pole 3 Wire Duplex Receptacle Straight Blade Devices
Straight Blade Devices, Receptacles, Duplex, Specification Grade, 2-Pole 3-Wire Grounding, 20A 250V, 6-20R, Brown, Single Pack
- Deep nylon body design delivers increased impact resistance
- One-piece brass integral ground strap
- Finder Groove Face
- Deep body design with circuit ID face
Self Grounding
GENERAL SPECIFICATIONS
| Application |
Extra Heavy Duty |
| Catalog Number |
HBL5462 |
| Color |
Brown |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Horsepower - Maximum |
2 |
| Item Type |
Traditional Duplex |
| Material - Mounting Hardware |
Screw Mounting |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0
- Environmental - Operating Temperatures - Maximum continuous 75 degC minimum -40 degC (w/o impact)
- Mechanical - Product Identification - Ratings are a permanent part of the device
- Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
|
| Series |
Extra Heavy Duty |
| Specifications |
- Automatic Self-grounding Clip - Stainless steel
- Base - PBT
- Clamping Plate - Nickel plated brass
- Face - Nylon
- Mounting Screws - Zinc plated steel
- Mounting Strap - .050 in. (1.3) Brass
- Power Contacts - .036 in. (.9) Brass
- Terminal Screws - Plated brass
- Wire Clamps - .031 in. (.8) Brass
|
| Style |
Finder Groove Face |
| Type |
Standard Duplex |
| UPC |
783585435480 |
Dimensions
| Dimensions |
3.28 in x 1.65 in x 1.19 in |
| Display Size |
Standard Sized Product |
| Height |
1.19 in |
| Length |
3.28 in |
| Weight |
0.25 lb |
| Width |
1.65 in |
Electrical Ratings
| Amperage Rating |
20 A |
| Connectivity |
Back and Side Wired Screw Terminals |
| Current / Amperage Rating |
20 A |
| Current Rating |
20 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Single Phase |
| Voltage Rating |
250 V |
| Voltage Rating Description |
250 V |
| Wattage |
5000 W |
Conductor Related
| Number Of Poles |
2-Pole |
| Number Of Wires |
3-Wire |
| Wire Size |
#14 AWG to #10 AWG |
Operational
| Horsepower - Maximum |
1 |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0
- Environmental - Operating Temperatures - Maximum continuous 75 degC minimum -40 degC (w/o impact)
- Mechanical - Product Identification - Ratings are a permanent part of the device
- Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
|
Logistics
| Carton Quantity
|
10 |
| Pallet Quantity |
5500 |
