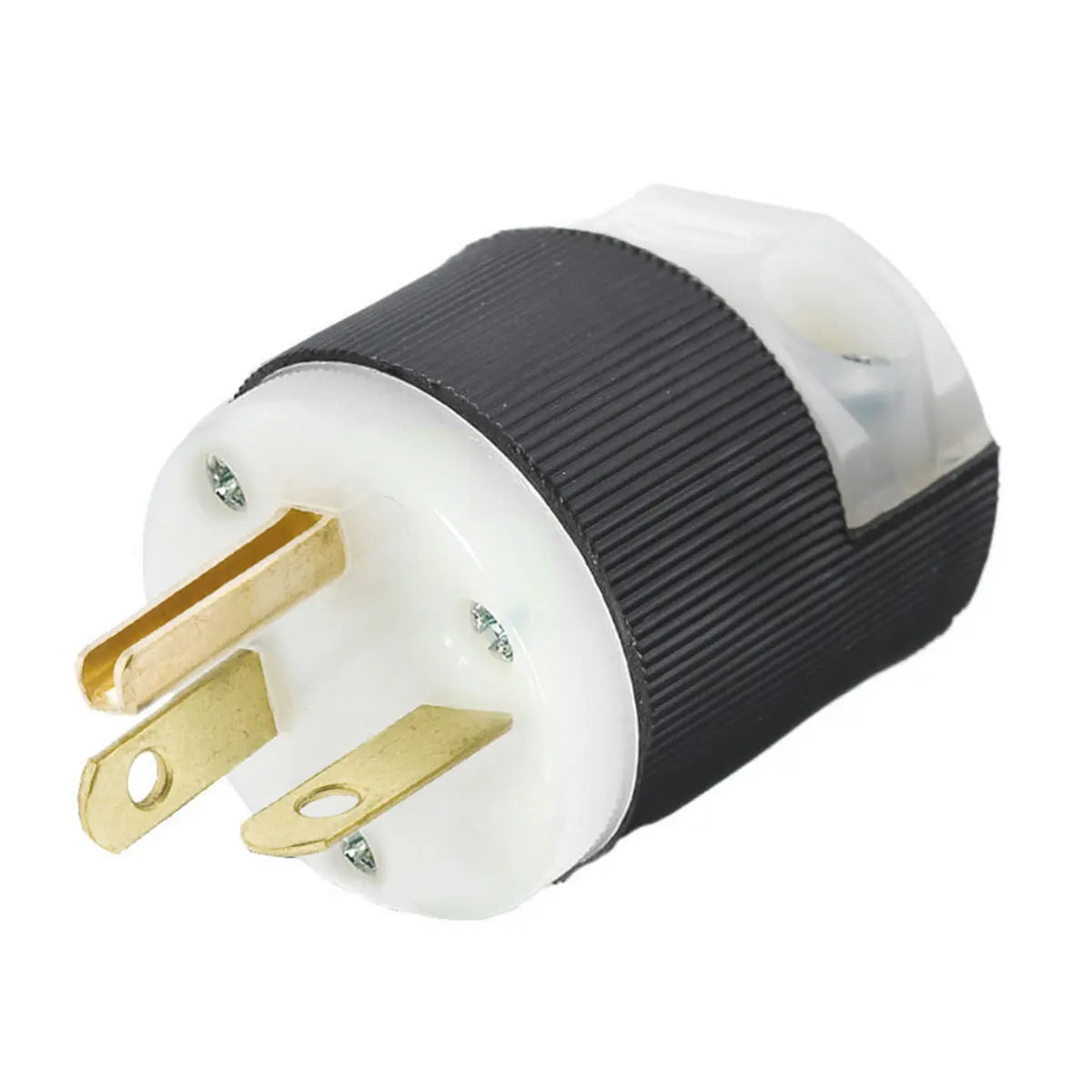

HBL5466C - Hubbell Wiring Device-Kellems - 20A 250V 2 Pole 3 Wire Plug Straight Blade Devices
Roll over image to zoom in Click on image to zoom
HBL5466C - Hubbell Wiring Device-Kellems - 20A 250V 2 Pole 3 Wire Plug Straight Blade Devices

HBL5466C - Hubbell Wiring Device-Kellems - 20A 250V 2 Pole 3 Wire Plug Straight Blade Devices

HubbellSKU: HUBHBL5466C
Price:
$19.94
Stock:
Sold out

Description

HBL5466C - Hubbell Wiring Device-Kellems - 20A 250V 2 Pole 3 Wire Plug Straight Blade Devices

Straight Blade Devices, Male Plug, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 20A 250V, 6-20P, Black and White, Single Pack.

  • Ribbed nylon housing is impact and chemical resistant
  • VARI-SIZE adjustable cord clamp
  • Fast lead assembly screws
  • Beveled housing prevents snagging

GENERAL SPECIFICATIONS

Catalog Number HBL5466C
Color Black, White
Environmental Conditions Ribbed Nylon Housing Is Impact and Chemical Resistant
EU RoHS Indicator Contact Manufacturer
Horsepower - Maximum 2
Item Type Insulgrip Plug
OEM Brand Name Hubbell Wiring Device-Kellems
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 HB or better
  • Environmental - IP Suitability - IP20
  • Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
  • Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Series Insulgrip®
Specifications
  • Assembly Screws - Nickel plated steel
  • Blade Holder - Nylon
  • Blades - .060 in. (1.5) Brass
  • Housing/Cord Clamp - Nylon
  • Terminal Clamp - Nickel plated steel
  • Terminal Retainer - Clear Polycarbonate
  • Terminal Screws - #8-32 Brass , multiple drive
Style Standard
Type Plug
UPC 783585174709



Dimensions

Dimensions 1.97 in x 1.53 in x 1.53 in
Height 1.53 in
Length 1.97 in
Weight 0.15 lb
Width 1.53 in



Electrical Ratings

Amperage Rating 20 A
Current / Amperage Rating 20 A
Current Rating 20 A
Dielectric Strength Withstands 2,000V minimum
Voltage Rating 250 V
Voltage Rating Description 250 V
Wattage 5000 W



Conductor Related

Number Of Poles 2-Pole
Number Of Wires 3-Wire
Wire Size #18 AWG to #10 AWG



Operational

Horsepower - Maximum  2
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 HB or better
  • Environmental - IP Suitability - IP20
  • Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
  • Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA


Logistics

 Carton Quantity 10
Pallet Quantity 3600



PRODUCT DATASHEET

Wiring HBL5466C Specification Sheet
