HBL5469C - Hubbell Wiring Device-Kellems 20A 250V 2 Pole 3 Wire Connector Body Straight Blade Devices

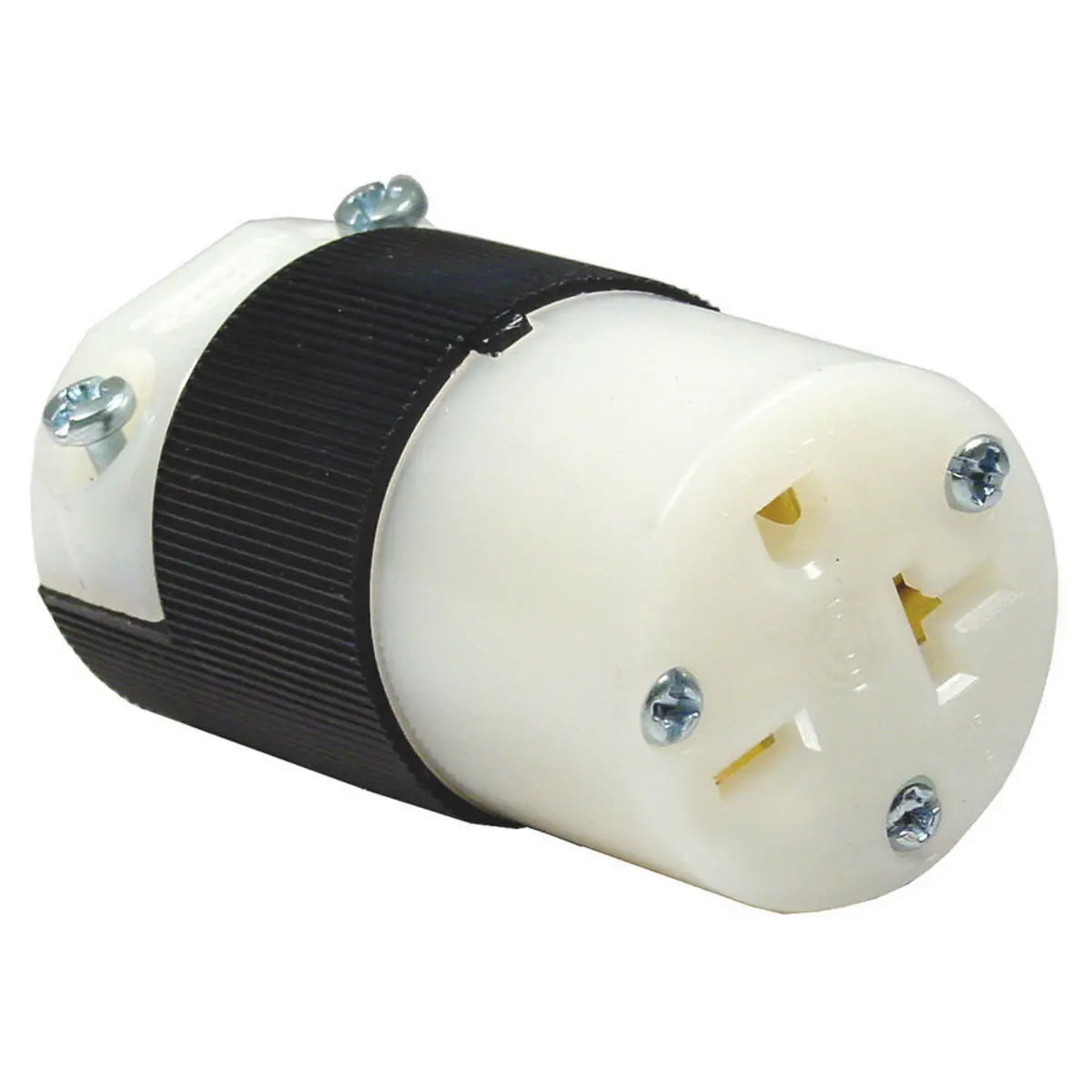

Straight Blade Devices, Female Connector Body, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2- Pole 3-Wire Grounding, 20A 250V, 6-20R, Black and White, Single Pack.
- Individual wiring terminals completely enclosed
- Powerful, offsetting cord grips clamp on individual conductors
- Fast lead assembly screws
- Beveled housing prevents snagging
Standard Product
GENERAL SPECIFICATIONS
| Application |
Industrial/Commercial |
| Catalog Number |
HBL5469C |
| Color |
Black, White |
| Cord Range |
0.230" - 0.720" (5.8 - 18.3 mm) |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Insulation |
Insulated Body |
| Item Type |
Insulgrip |
| Material |
Nylon |
| Material - Mounting Hardware |
Cord Mounted |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - UL 94 HB or better
- Environmental - IP Suitability - IP20
- Environmental - Operating Temperatures - Maximum continuous 75 degC minimum -40 degC (w/o impact)
- Mechanical - Product Identification - Ratings are a permanent part of the device
- Mechanical - Terminal Accommodation - #18-10 AWG copper conductors only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
|
| Series |
Insulgrip(R) |
| Specifications |
- Assembly Screws - Nickel plated steel
- Contact Holder - Nylon
- Contacts - .040 in. (1.0) Brass
- Housing/Cord Clamp - Nylon
- Terminal Clamp - Nickel plated steel
- Terminal Retainer - Clear Polycarbonate
- Terminal Screws - #8-32 Brass , multiple drive
|
| Style |
Standard |
| Temperature Rating |
Max Continuous: 75 degC, Minimum: -40 degC Without Impact |
| Type |
Connector Body |
| UPC |
783585174853 |
Dimensions
| Dimensions |
2.78 in x 1.53 in x 1.53 in |
| Display Size |
Standard |
| Height |
1.53 in |
| Length |
2.78 in |
| Weight |
0.2 lb |
| Width |
1.53 in |
Electrical Ratings
| Amperage Rating |
20 A |
| Connectivity |
Screw Terminals |
| Current / Amperage Rating |
20 A |
| Current Rating |
20 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Voltage Rating |
250 V |
| Voltage Rating Description |
250 V |
| Wattage |
5000 W |
Conductor Related
| Conductor Range |
#14 AWG to #12 AWG |
| Number of Conductors |
3-Wire Grounding |
| Number Of Poles |
2-Pole |
| Number Of Wires |
3-Wire |
| Wire Size |
#18 AWG to #10 AWG |
Operational
| Operating Temperature
|
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - UL 94 HB or better
- Environmental - IP Suitability - IP20
- Environmental - Operating Temperatures - Maximum continuous 75 degC minimum -40 degC (w/o impact)
- Mechanical - Product Identification - Ratings are a permanent part of the device
- Mechanical - Terminal Accommodation - #18-10 AWG copper conductors only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
|
| Temperature Rating |
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
Logistics
| Carton Quantity
|
10 |
| Pallet Quantity |
3600 |
PRODUCT DATASHEET
HBL5469C
