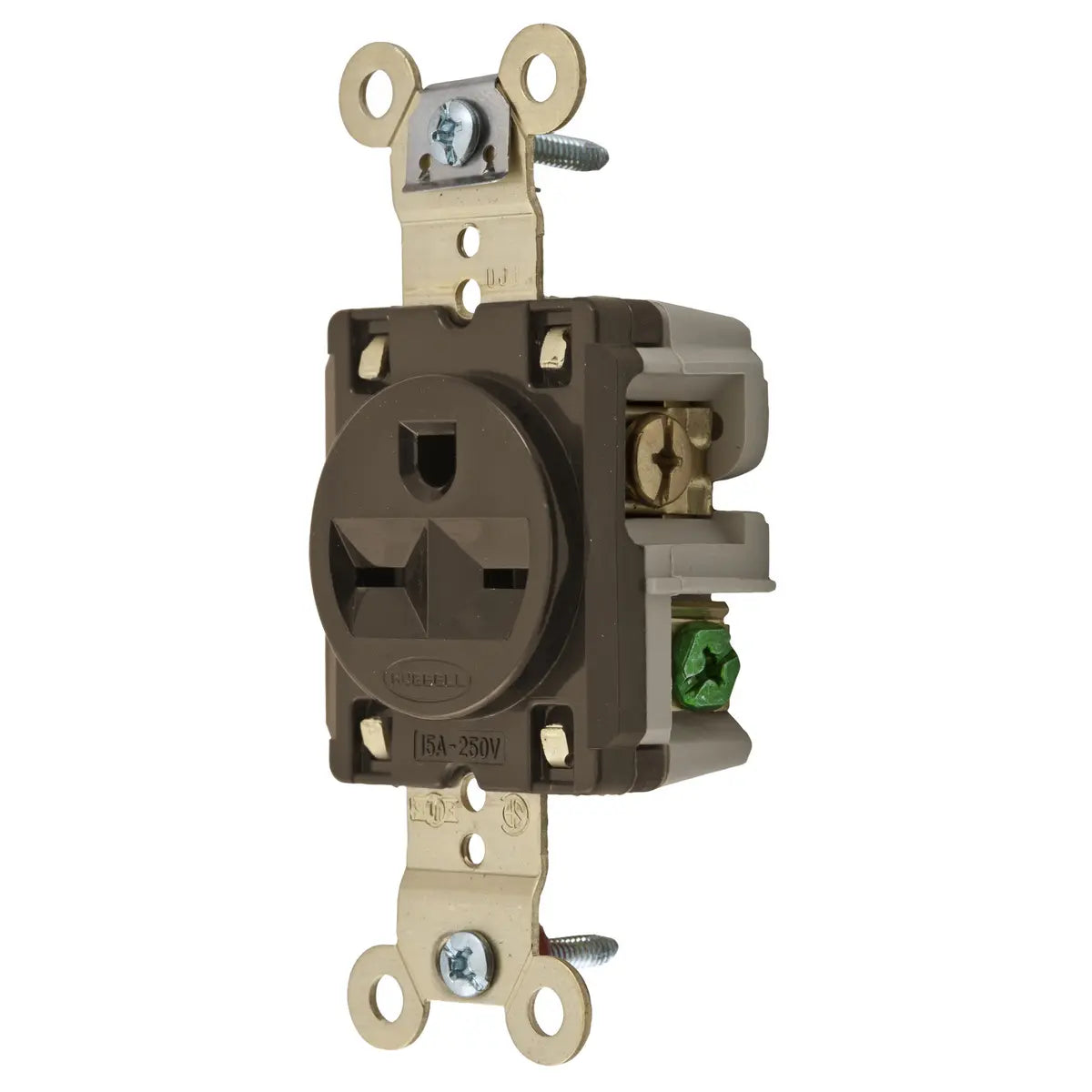

HBL5661 - Hubbell Wiring Device-Kellems 15A 250V 2 Pole 3 Wire Single Receptacle Straight Blade Devices
Roll over image to zoom in Click on image to zoom
HBL5661 - Hubbell Wiring Device-Kellems 15A 250V 2 Pole 3 Wire Single Receptacle Straight Blade Devices

HBL5661 - Hubbell Wiring Device-Kellems 15A 250V 2 Pole 3 Wire Single Receptacle Straight Blade Devices

HubbellSKU: HUBHBL5661
Price:
$20.61
Stock:
Sold out

Description

HBL5661 - Hubbell Wiring Device-Kellems 15A 250V 2 Pole 3 Wire Single Receptacle Straight Blade Devices

Straight Blade Devices, Receptacles, Single, Specification Grade, 2-Pole 3-Wire Grounding, 15A 250V, 6-15R, Brown, Single Pack

  • One-piece brass integral ground strap
  • Unique bypass contact design

Standard

GENERAL SPECIFICATIONS

Application Extra Heavy Duty
Catalog Number HBL5661
Color Brown
Environmental Conditions Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator Yes
Horsepower - Maximum 1.5
Item Type Single
Material - Mounting HW Screw Mounting
Number Of Poles 2-Pole
OEM Brand Name Hubbell Wiring Device-Kellems
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0
  • Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Series Extra Heavy Duty
Specifications
  • Auto Self-grounding Clip - Stainless steel
  • Base - PBT
  • Face - Nylon
  • Ground Contact - Brass
  • Mounting Screws - Zinc plated steel
  • Mounting Strap - .050" (1.3) Brass
  • Power Contacts - .037 in. (.9) Brass
Style Finder Groove Face
Type Single Receptacle
UPC 783585013992



Dimensions

Dimensions 1.94 in x 1.63 in x 1.19 in
Display Size Standard Sized Product
Height 1.19 in
Length 1.94 in
Weight 0.15 lb
Width 1.63 in



Electrical Ratings

Amperage Rating 15 A
Connectivity Back and Side Wired
Current / Amperage Rating 15 A
Current Rating 15 A
Dielectric Strength Withstands 2,000V minimum
Phase Single Phase
Voltage Rating 250 V
Voltage Rating Description 250 V
Wattage 3750 W



Conductor Related

Number Of Poles 2-Pole
Number Of Wires 3-Wire
Wire Size #12 AWG to #10 AWG



Operational

 Horsepower - Maximum 1.5
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0
  • Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA


Logistics

Carton Quantity 10
Pallet Quantity 5500



PRODUCT DATASHEET

Wiring HBL5661 Specification Sheet
