Description

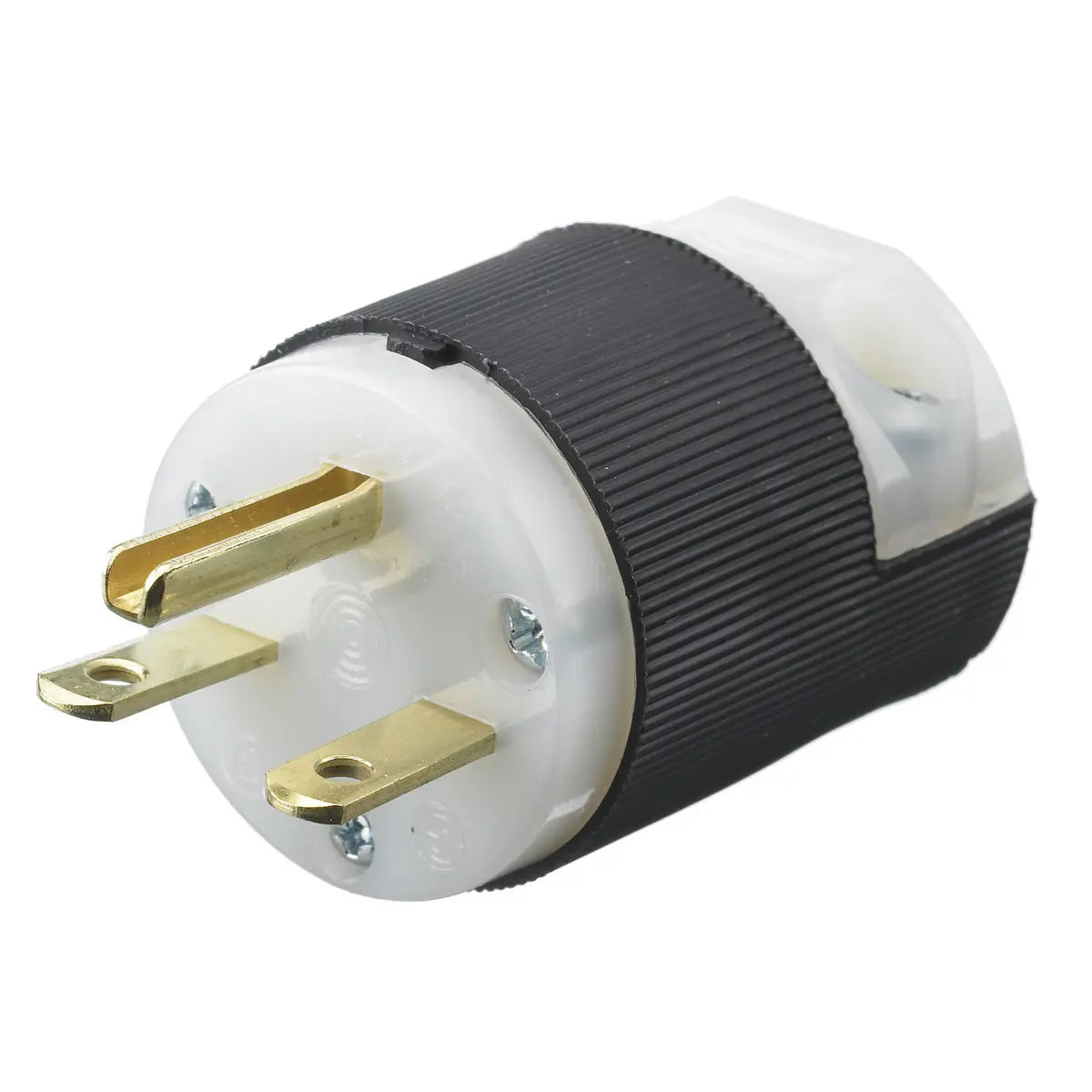

HBL5666C - Hubbell Wiring Device-Kellems 15A 250V 2 Pole 3 Wire Plug Straight Blade Devices
Straight Blade Devices, Male Plug, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 15A 250V, 6-15P, Black and White, Single Pack.
- Ribbed nylon housing is impact and chemical resistant
- VARI-SIZE adjustable cord clamp
- Fast lead assembly screws
- Beveled housing prevents snagging
GENERAL SPECIFICATIONS
| Catalog Number | HBL5666C |
| Color | Black, White |
| Environmental Conditions | Ribbed Nylon Housing Is Impact and Chemical Resistant |
| EU RoHS Indicator | Contact Manufacturer |
| Horsepower - Maximum | 1.5 |
| Item Type | Insulgrip Plug |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
| Series | Insulgrip® |
| Specifications |
|
| Style | Standard |
| Type | Plug |
| UPC | 783585175607 |
Dimensions
| Dimensions | 1.97 in x 1.53 in x 1.53 in |
| Height | 1.53 in |
| Length | 1.97 in |
| Weight | 0.15 lb |
| Width | 1.53 in |
Electrical Ratings
| Amperage Rating | 15 A |
| Current / Amperage Rating | 15 A |
| Current Rating | 15 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Voltage Rating | 250 V |
| Voltage Rating Description | 250 V |
| Wattage | 3750 W |
Conductor Related
| Number Of Poles | 2-Pole |
| Number Of Wires | 3-Wire |
| Wire Size | #18 AWG to #10 AWG |
Operational
| Horsepower - Maximum | 1.5 |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
Logistics
| Carton Quantity | 10 |
| Pallet Quantity | 6600 |
PRODUCT DATASHEET
