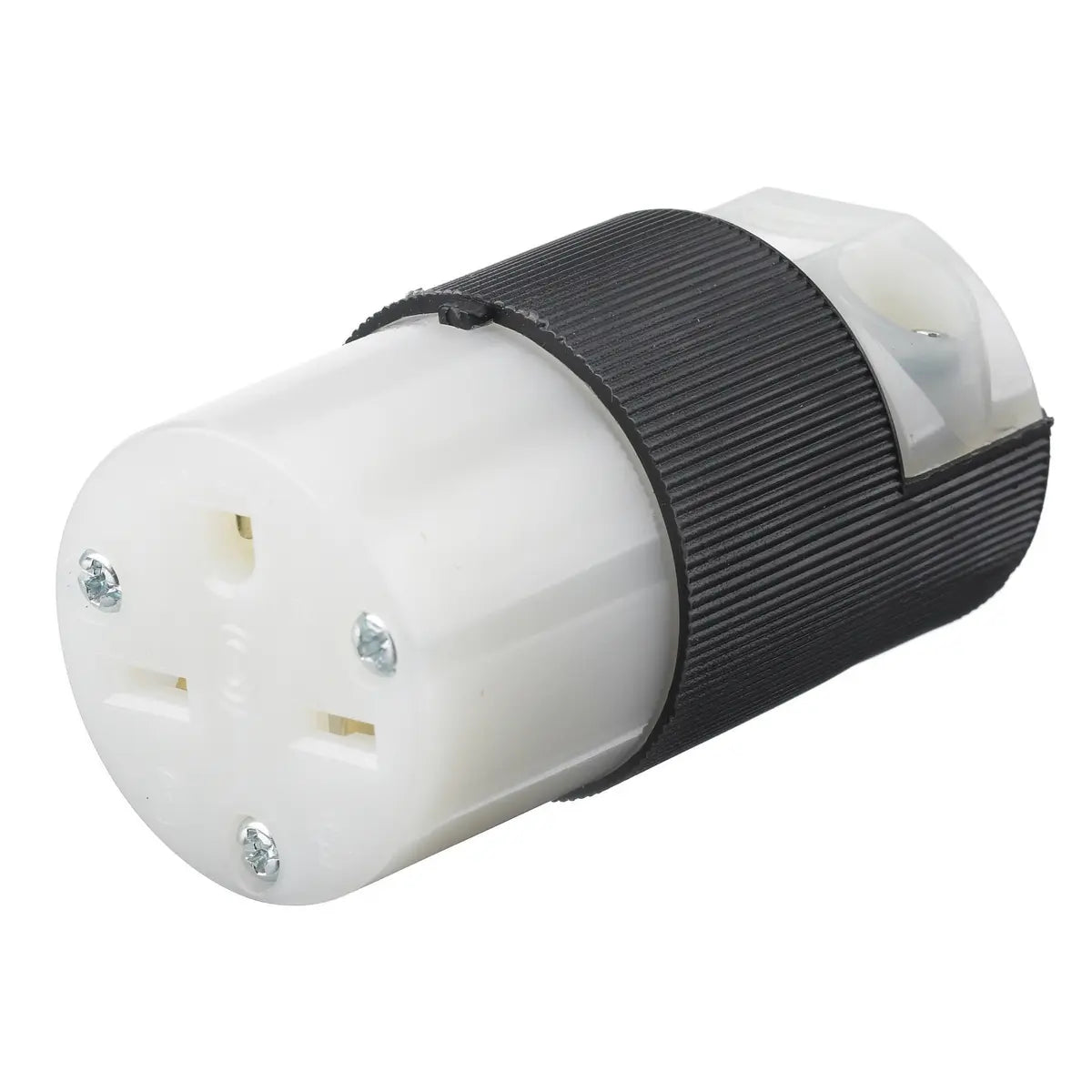

HBL5669C - Hubbell Wiring Device-Kellems 15A 250V 2 Pole 3 Wire Connector Body Straight Blade Devices
Roll over image to zoom in Click on image to zoom
HBL5669C - Hubbell Wiring Device-Kellems 15A 250V 2 Pole 3 Wire Connector Body Straight Blade Devices

HBL5669C - Hubbell Wiring Device-Kellems 15A 250V 2 Pole 3 Wire Connector Body Straight Blade Devices

HubbellSKU: HUBHBL5669C
Price:
$26.19
Stock:
Sold out

Description

HBL5669C - Hubbell Wiring Device-Kellems 15A 250V 2 Pole 3 Wire Connector Body Straight Blade Devices

Straight Blade Devices, Female Connector Body, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2- Pole 3-Wire Grounding, 15A 250V, 6-15R, Black and White, Single Pack.

  • Individual wiring terminals completely enclosed
  • Powerful, offsetting cord grips clamp on individual conductors
  • Fast lead assembly screws
  • Beveled housing prevents snagging

Standard Product

GENERAL SPECIFICATIONS

Application Industrial/Commercial
Catalog Number HBL5669C
Cord Range 0.230"-0.720" (5.8-18.3)
Environmental Conditions Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator Yes
Insulation Insulated Body
Item Type Insulgrip
Material Nylon
Material - Mounting Hardware Cord Mounted
OEM Brand Name Hubbell Wiring Device-Kellems
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 HB or better
  • Environmental - IP Suitability - IP20
  • Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #18-10 AWG copper conductors only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Series Insulgrip®
Specifications
  • Assembly Screws - Nickel plated steel
  • Contact Holder - Nylon
  • Contacts - .040 in. (1.0) Brass
  • Housing/Cord Clamp - Nylon
  • Terminal Clamp - Nickel plated steel
  • Terminal Retainer - Clear Polycarbonate
  • Terminal Screws - #8-32 Brass , multiple drive
Style Standard
Temperature Rating Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Type Connector Body
UPC 783585175805



Dimensions

Dimensions 2.78 in x 1.53 in x 1.53 in
Display Size Standard
Height 1.53 in
Length 2.78 in
Weight 0.15 lb
Width 1.53 in



Electrical Ratings

Amperage Rating 15 A
Connectivity Screw Terminals
Current / Amperage Rating 15 A
Current Rating 15 A
Dielectric Strength Withstands 2,000V minimum
Voltage Rating 250 V
Voltage Rating Description 250 V
Wattage 3750 W



Conductor Related

Conductor Range #14 AWG to #12 AWG
Number of Conductors 3-Wire Grounding
Number Of Poles 2-Pole
Number Of Wires 3-Wire
Wire Size #18 AWG to #10 AWG



Operational

 Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 HB or better
  • Environmental - IP Suitability - IP20
  • Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #18-10 AWG copper conductors only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Temperature Rating Max Continuous- 75 Degrees C, Minimum- -40 Without Impact

Logistics

Carton Quantity 10
Pallet Quantity 4000



PRODUCT DATASHEET

Wiring HBL5669C Specification Sheet
