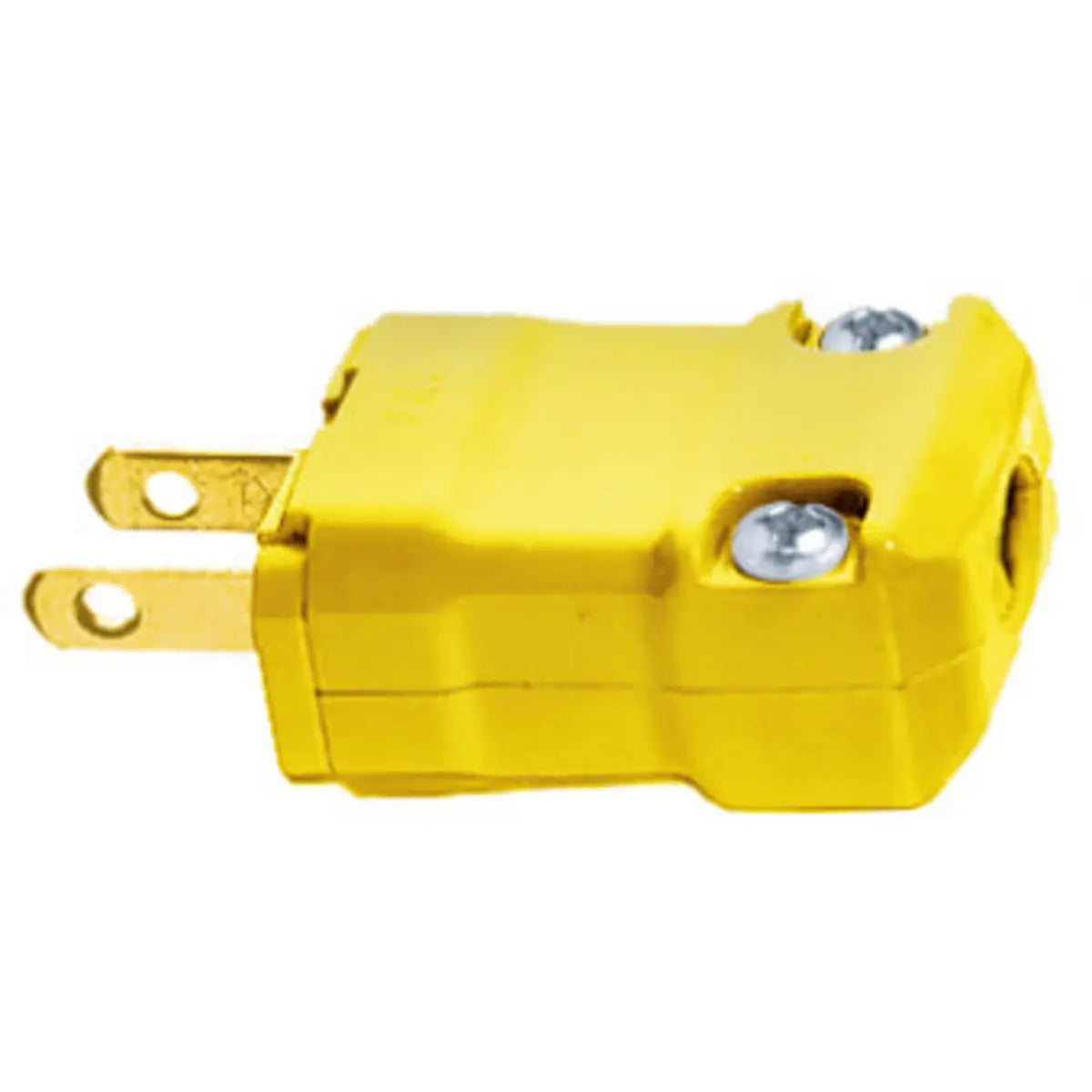

HBL5866VY - Hubbell Wiring Device-Kellems 15A 125V 2 Pole 2 Wire Plug Straight Blade Devices
Straight Blade Devices, Male Plug, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 2-Wire Non- Grounding, 15A 125V, 1-15P , Yellow, Single Pack.
- Hinged one piece body design for easy assembly
- Two captive multiple drive assembly screws
- Powerful cord grips prevent conductor slippage and strain
- Polarized blades
Polarized
GENERAL SPECIFICATIONS
| Catalog Number |
HBL5866VY |
| Color |
Yellow |
| EU RoHS Indicator |
Contact Manufacturer |
| Horsepower - Maximum |
0.5 |
| Item Type |
Valise Plug |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - UL 94 HB
- Environmental - IP Suitability - IP20
- Environmental - Operating Temperatures - Maximum continuous 75 degC minimum -40 degC (w/o impact)
- Mechanical - Product Identification - Molded Rating on Device Face
- Mechanical - Terminal Accommodation - #18-#14 AWG stranded copper wire only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
|
| Series |
Valise(R) |
| Specifications |
- Assembly Screws - Plated Steel
- Assembly Screws - Plated steel
- Blades - Brass
- Cable Inserts - PPO
- Housing - Nylon
- Terminal Clamp - Nickel plated steel
- Terminal Screws - Brass
|
| Style |
Non-Grounding |
| Type |
Plug |
| UPC |
783585013077 |
Dimensions
| Dimensions |
1.68 in x 1.25 in x 0.88 in |
| Height |
0.88 in |
| Length |
1.68 in |
| Weight |
0.1 lb |
| Width |
1.25 in |
Electrical Ratings
| Amperage Rating |
15 A |
| Current / Amperage Rating |
15 A |
| Current Rating |
15 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Voltage Rating |
125 V |
| Voltage Rating Description |
125 V |
| Wattage |
1875 W |
Conductor Related
| Number Of Poles |
2-Pole |
| Number Of Wires |
2-Wire |
| Wire Size |
#18 AWG to #14 AWG |
Operational
| Horsepower - Maximum
|
0.5 |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - UL 94 HB
- Environmental - IP Suitability - IP20
- Environmental - Operating Temperatures - Maximum continuous 75 degC minimum -40 degC (w/o impact)
- Mechanical - Product Identification - Molded Rating on Device Face
- Mechanical - Terminal Accommodation - #18-#14 AWG stranded copper wire only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
|
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
6000 |
PRODUCT DATASHEET
HBL5866VY
