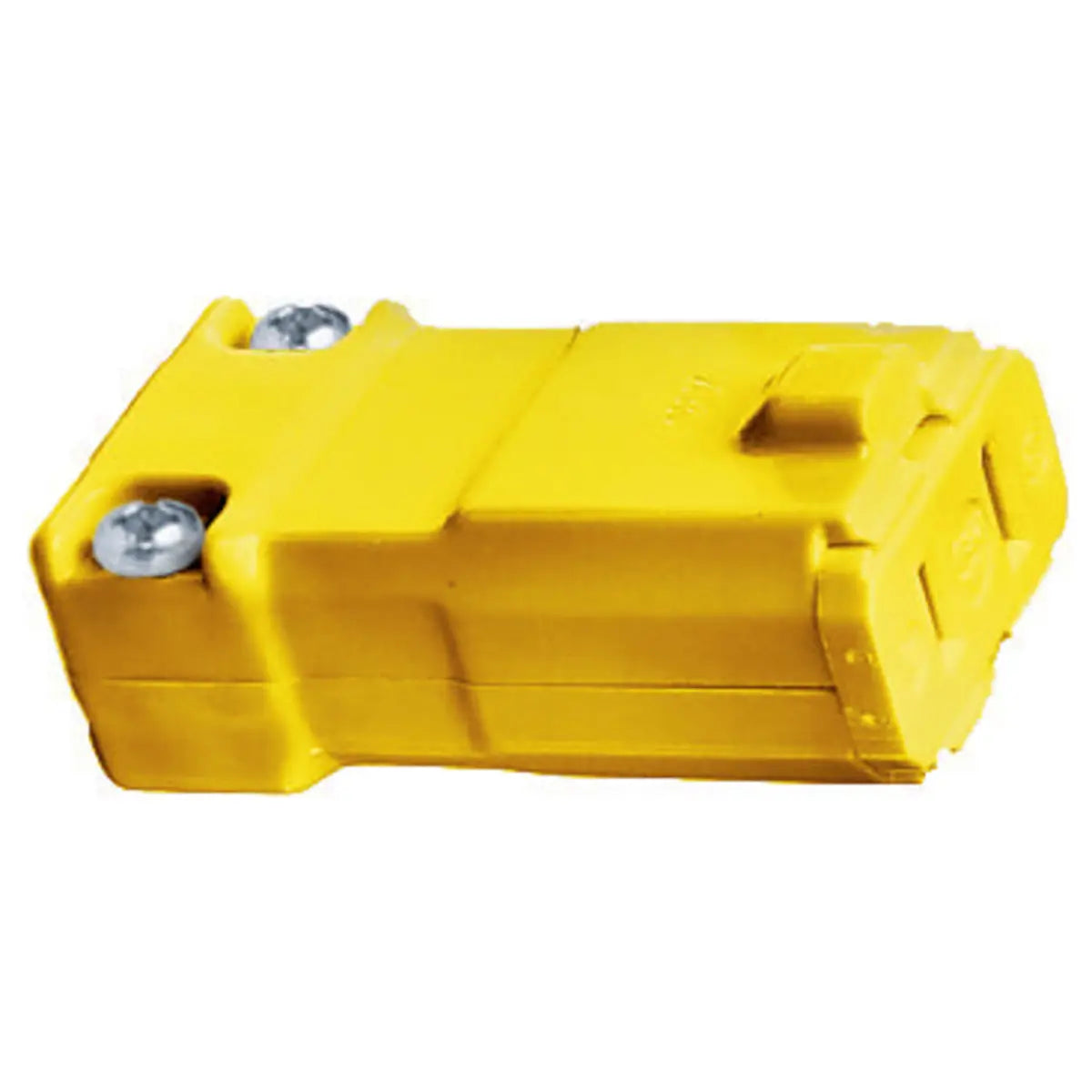

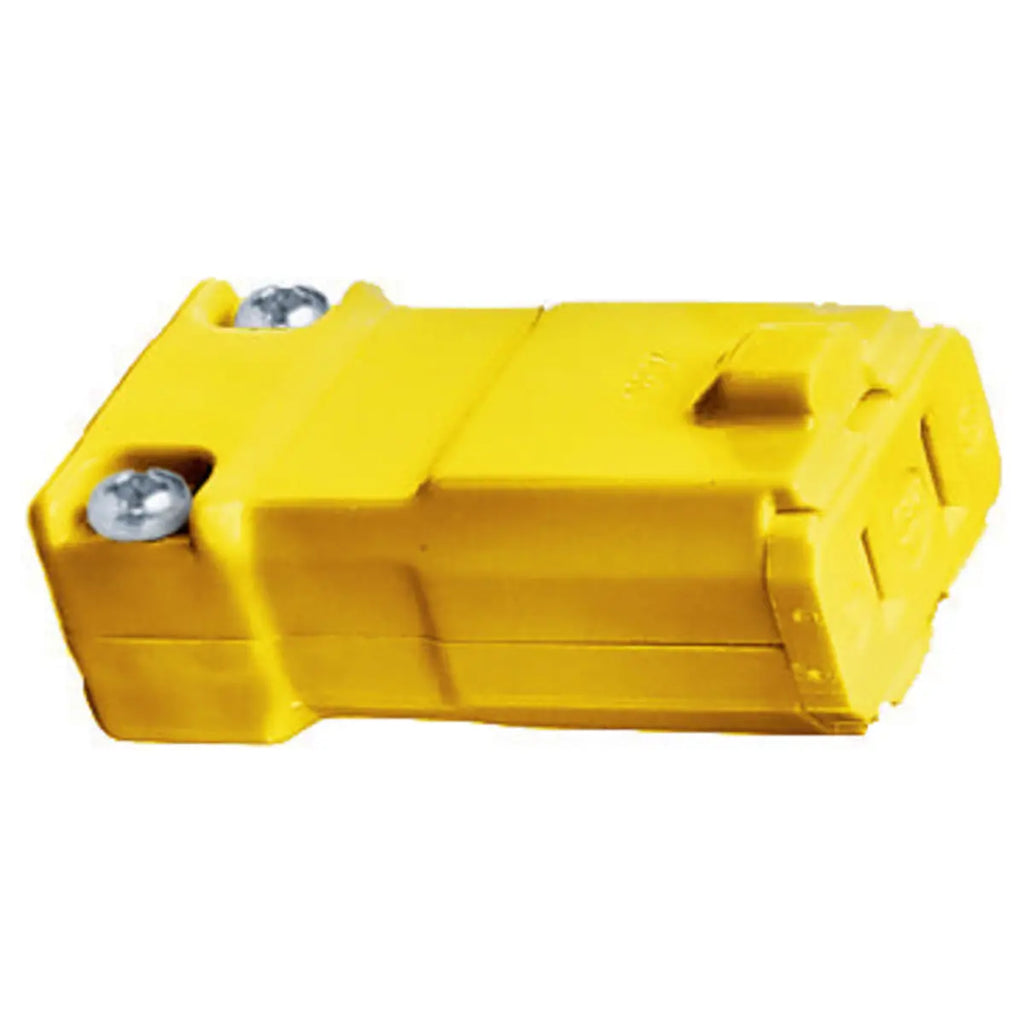

HBL5869VY - Hubbell Wiring Device Kellems - 15A 125V 2 Pole 2 Wire Non-Grounding Female Connector Body Straight Blade Devices
Roll over image to zoom in Click on image to zoom
HBL5869VY - Hubbell Wiring Device Kellems - 15A 125V 2 Pole 2 Wire Non-Grounding Female Connector Body Straight Blade Devices

HBL5869VY - Hubbell Wiring Device Kellems - 15A 125V 2 Pole 2 Wire Non-Grounding Female Connector Body Straight Blade Devices

HubbellSKU: HUBHBL5869VY
Price:
$18.87
Stock:
Sold out

Description

HBL5869VY - Hubbell Wiring Device Kellems - 15A 125V 2 Pole 2 Wire Non-Grounding Female Connector Body Straight Blade Devices

Straight Blade Devices, Female Connector Body, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 2- Wire Non-Grounding, 15A 125V, 1-15R, Yellow, Single Pack.

  • Hinged one piece body design for easy assembly
  • Two captive multiple drive assembly screws
  • Powerful cord grips prevent conductor slippage and strain

Standard Product

GENERAL SPECIFICATIONS

Application Industrial/Commercial
Catalog Number HBL5869VY
Color Yellow
Cord Range 0.218-0.385" (5.5-9.8)
Environmental Conditions Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator Yes
Insulation Insulated Body
Item Type Valise
Material Nylon
Material - Mounting Hardware Cord Mounted
OEM Brand Name Hubbell Wiring Device-Kellems
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 HB
  • Environmental - IP Suitability - IP20
  • Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Molded Rating on Device Face
  • Mechanical - Terminal Accommodation - #18-#14 AWG stranded copper wire only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Series Valise®
Specifications
  • Assembly Screws - Plated Steel
  • Assembly Screws - Plated steel
  • Cable Inserts - PPO
  • Contacts - Brass
  • Housing - Nylon
  • Terminal Clamp - Nickel plated steel
  • Terminal Screws - Brass
Style Standard
Temperature Rating Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Type Connector Body
UPC 783585013237

Dimensions

Dimensions 2.38 in x 1.25 in x 0.88 in
Display Size Standard
Height 0.88 in
Length 2.38 in
Weight 0.05 lb
Width 1.25 in



Electrical Ratings

Amperage Rating 15 A
Connectivity Screw Terminals
Current / Amperage Rating 15 A
Current Rating 15 A
Dielectric Strength Withstands 2,000V minimum
Voltage Rating 125 V
Voltage Rating Description 125 V
Wattage 1875 W



Conductor Related

Conductor Range #14 AWG to #12 AWG
Number of Conductors 2-Wire Non-Grounding
Number Of Poles 2-Pole
Number Of Wires 2-Wire
Wire Size #18 AWG to #14 AWG



Operational

 Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 HB
  • Environmental - IP Suitability - IP20
  • Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Molded Rating on Device Face
  • Mechanical - Terminal Accommodation - #18-#14 AWG stranded copper wire only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Temperature Rating Max Continuous- 75 Degrees C, Minimum- -40 Without Impact



Logistics

Carton Quantity 10



PRODUCT DATASHEET

Wiring HBL5869VY Specification Sheet
