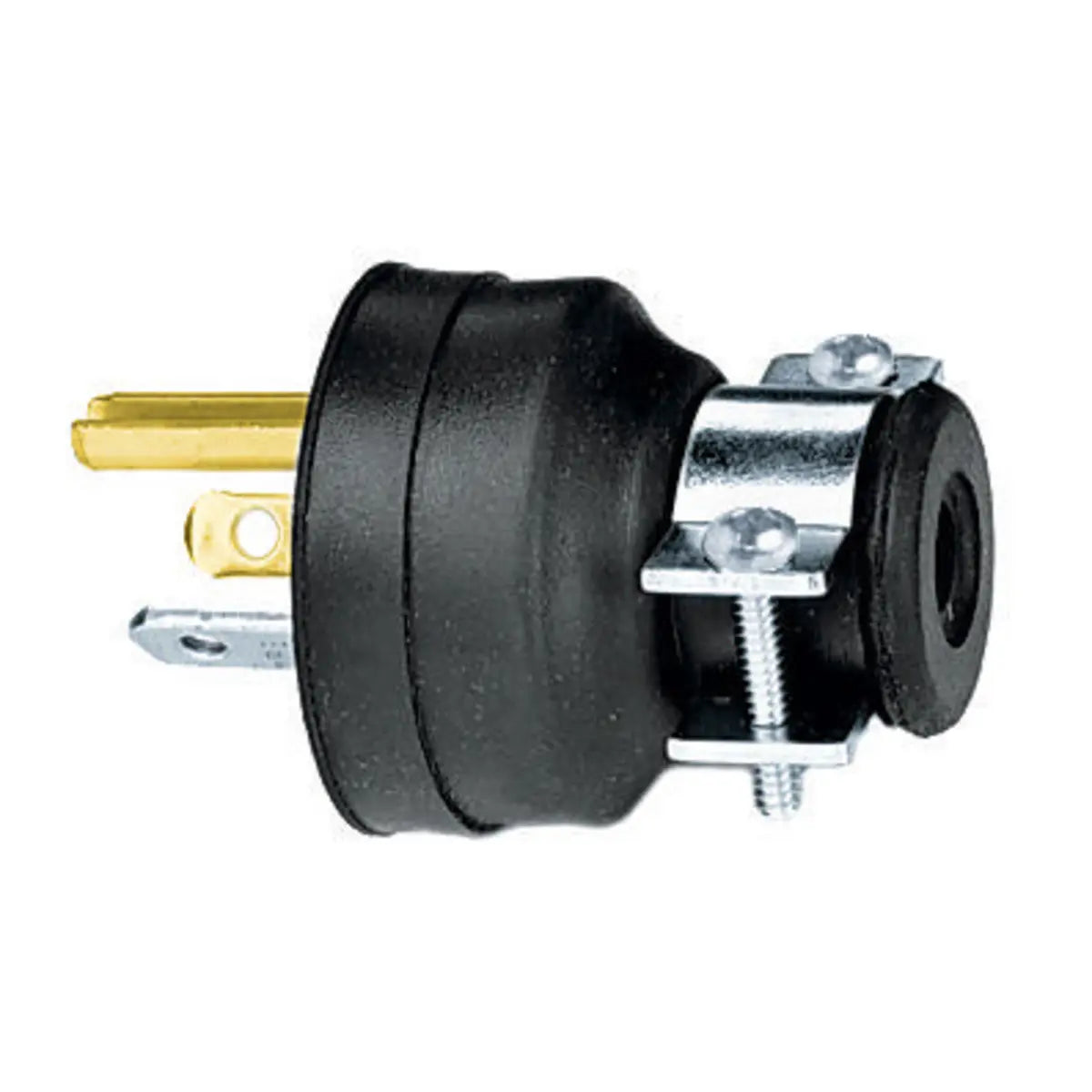

HBL5929 - Hubbell Wiring Device Kellems - 15A 277V 2 Pole 3 Wire Grounding Male Plug Straight Blade Devices
Straight Blade Devices, Male Plug, Heavy Duty, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 15A 277V AC, 7-15P, Black, Single Pack.
- Insulprene body
- External cord clamp
- Dead front construction
GENERAL SPECIFICATIONS
| Catalog Number |
HBL5929 |
| Color |
Black |
| EU RoHS Indicator |
Contact Manufacturer |
| Horsepower - Maximum |
2 |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - UL 94 HB or better
- Environmental - IP Suitability - IP20
- Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
- Mechanical - Cord Accomodation - .310"-.430"(7.9-11.9)
- Mechanical - Terminal Accommodation - #18-12 AWG. Standed copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
|
| Series |
Insulprene |
| Specifications |
- Assembly Screws - Nickel plated steel
- Blade Holder - Nylon
- Blades - .060 in. (1.5) Brass
- Cord Clamp - Plated Steel
- Housing - Insulprene
- Terminal Clamp - Nickel plated steel
- Terminal Screws - #8-32 Brass , multiple drive
|
| Style |
Finger Grip |
| Type |
Plug |
| UPC |
783585013251 |
Dimensions
| Dimensions |
1.63 in x 1.5 in x 1.5 in |
| Height |
1.5 in |
| Length |
1.63 in |
| Weight |
0.15 lb |
| Width |
1.5 in |
Electrical Ratings
| Amperage Rating |
15 A |
| Current / Amperage Rating |
15 A |
| Current Rating |
15 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Voltage Rating |
277 VAC |
| Voltage Rating Description |
277 V |
| Wattage |
4155 W |
Conductor Related
| Number of Poles |
2-Pole |
| Number Of Wires |
3-Wire |
| Wire Size |
#18 AWG to #12 AWG |
Operational
| Horsepower - Maximum
|
2 |
| Operating Temperature |
Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - UL 94 HB or better
- Environmental - IP Suitability - IP20
- Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
- Mechanical - Cord Accomodation - .310"-.430"(7.9-11.9)
- Mechanical - Terminal Accommodation - #18-12 AWG. Standed copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
|
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
4050 |
