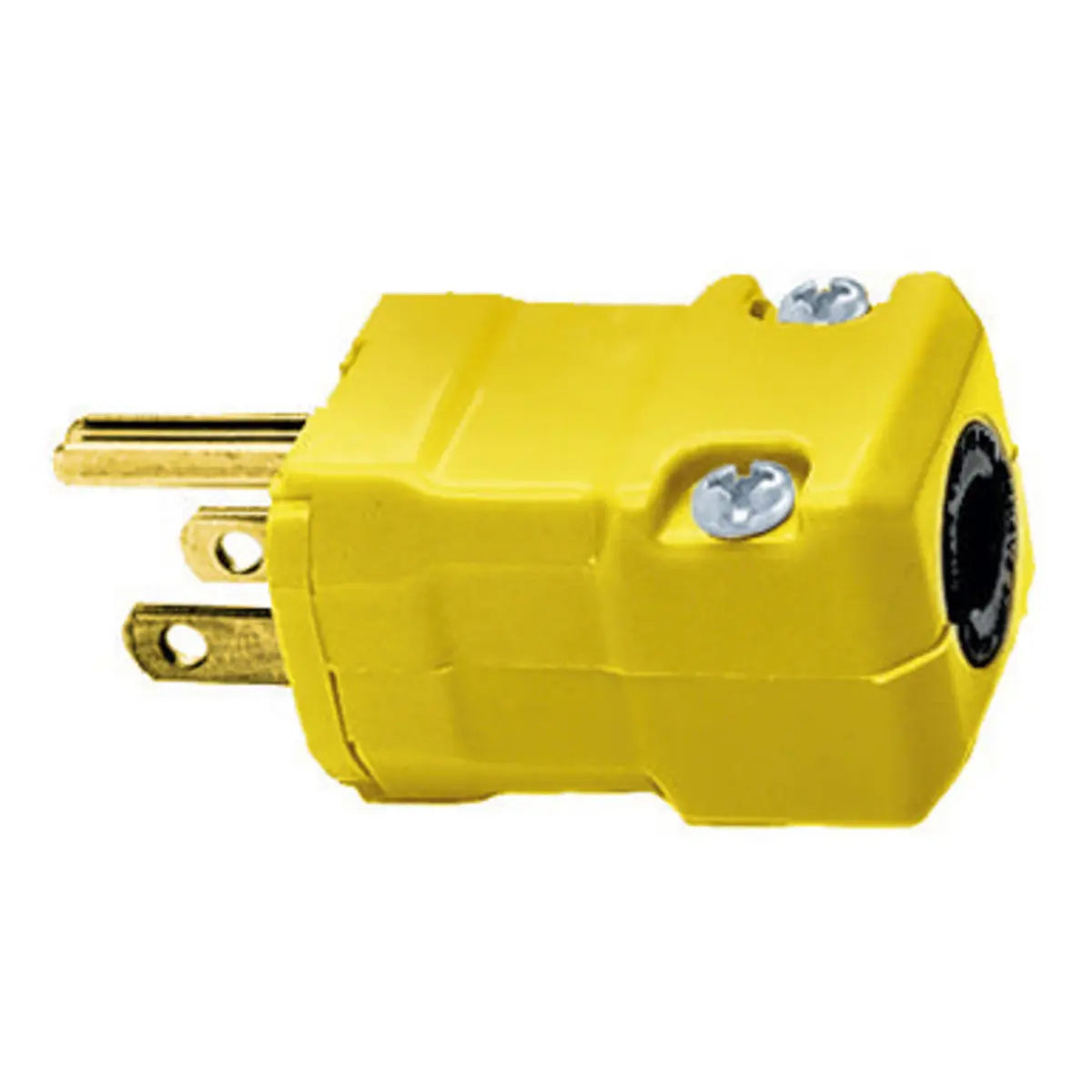

HBL5965VY - Hubbell Wiring Device Kellems - 15A 125V 2 Pole 3 Wire Grounding Male Plug Straight Blade Devices
Straight Blade Devices, Male Plug, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 15A 125V, 5-15P, Yellow, Single Pack.
- Hinged one piece body design for easy assembly
- Powerful, offsetting cord grips clamp on individual conductors
- Assembly screws are captive and will not fall out while wiring
GENERAL SPECIFICATIONS
| Application |
Industrial/Commercial Grade |
| Catalog Number |
HBL5965VY |
| EU RoHS Indicator |
Contact Manufacturer |
| Horsepower - Maximum |
2 |
| Item Type |
Valise |
| Material |
Polycarbonate |
| Material - Mounting Hardware |
Cord Mounted |
| Number Of Poles |
2-Pole |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - UL 94 HB or better
- Environmental - IP Suitability - IP20
- Environmental - Operating Temperatures - Maximum continuous 75 degC minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #18-12 AWG. Standed copper wire only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
|
| Series |
Valise(R) |
| Specifications |
- Assembly Screws - Plated Steel
- Assembly Screws - Plated steel
- Blades - Brass
- Cable Inserts - PPO
- Housing - Nylon
- Terminal Clamp - Nickel plated steel
- Terminal Screws - #8-32 Brass , multiple drive
|
| Style |
Standard |
| Type |
Plug |
| UPC |
783585013091 |
Dimensions
| Dimensions |
1.88 in x 1.88 in x 2.55 in |
| Height |
2.55 in |
| Length |
1.88 in |
| Weight |
0.1 lb |
| Width |
1.88 in |
Electrical Ratings
| Amperage Rating |
15 A |
| Connectivity |
Screw Terminals |
| Current / Amperage Rating |
15 A |
| Current Rating |
15 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Single Phase |
| Voltage Rating |
125 VAC |
| Voltage Rating Description |
125 V |
Conductor Related
| Number Of Wires |
3-Wire |
| Wire Size |
#18 AWG to #12 AWG |
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
3600 |
