HBL5969VY - Hubbell Wiring Device Kellems - 15A 125V 2 Pole 3 Wire Grounding Female Connector Body Straight Blade Devices

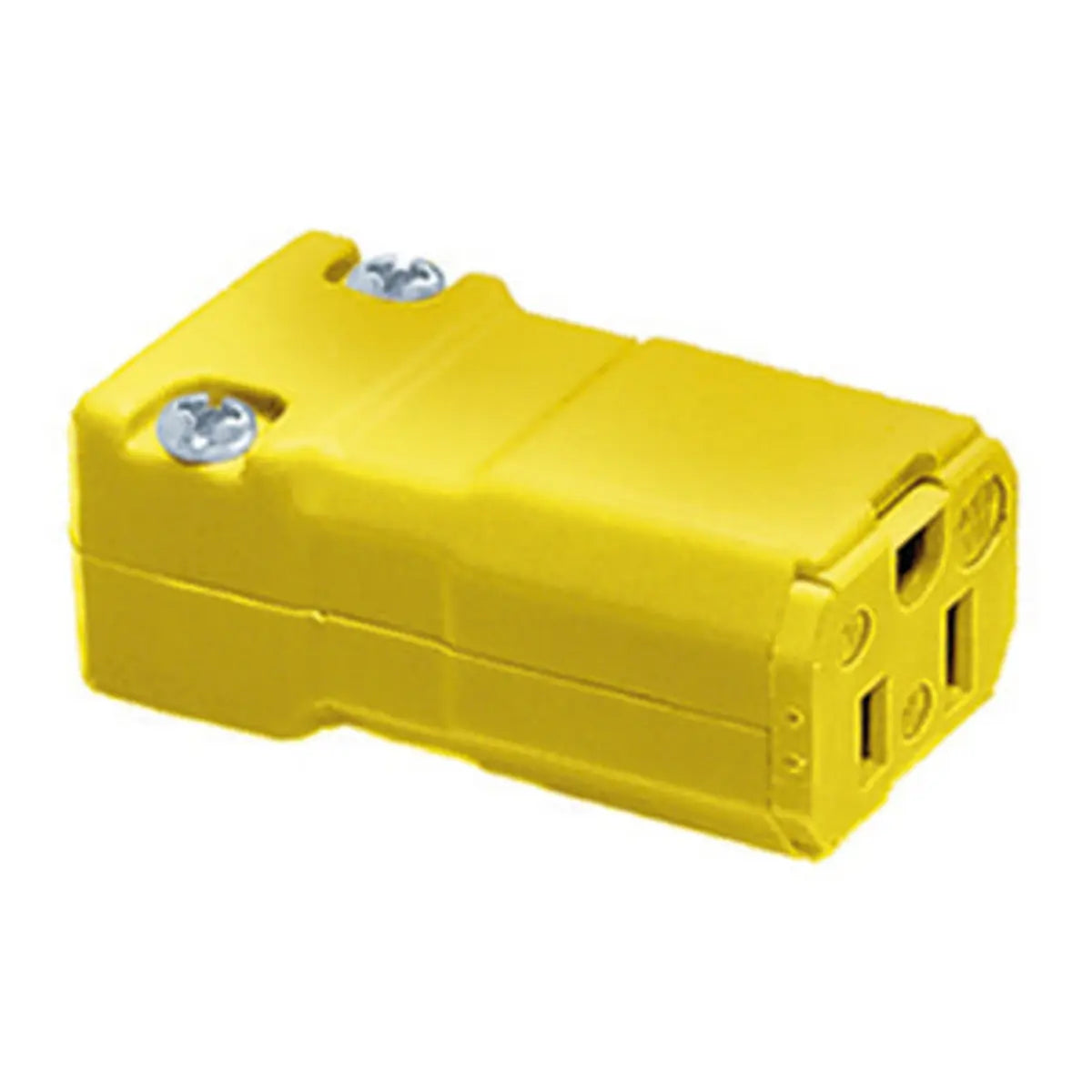

Straight Blade Devices, Female Connector Body, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 15A 125V, 5-15R, Yellow, Single Pack.
- Hinged one piece body design for easy assembly
- Powerful, offsetting cord grips clamp on individual conductors
- Assembly screws are captive and will not fall out while wiring
GENERAL SPECIFICATIONS
| Application |
Industrial/Commercial |
| Catalog Number |
HBL5969VY |
| Color |
Yellow |
| Cord Range |
0.230"-0.720" (5.8-18.3) |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Horsepower - Maximum |
0.5 |
| Insulation |
Insulated Body |
| Item Type |
Valise |
| Material |
Nylon |
| Material - Mounting Hardware |
Cord Mounted |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - UL 94 HB or better
- Environmental - IP Suitability - IP20
- Environmental - Operating Temperatures - Maximum continuous 75 degC minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #18-12 AWG. Standed copper wire only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
|
| Series |
Valise(R) |
| Specifications |
- Assembly Screws - Plated Steel
- Assembly Screws - Plated steel
- Cable Inserts - PPO
- Contacts - Brass
- Housing - Nylon
- Terminal Clamp - Nickel plated steel
- Terminal Screws - #8-32 Brass , multiple drive
|
| Style |
Standard |
| Temperature Rating |
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Type |
Connector Body |
| UPC |
783585013107 |
Dimensions
| Dimensions |
2.68 in x 1.32 in x 2.68 in |
| Display Size |
Standard |
| Height |
2.68 in |
| Length |
2.68 in |
| Weight |
0.1 lb |
| Width |
1.32 in |
Electrical Ratings
| Amperage Rating |
15 A |
| Connectivity |
Screw Terminals |
| Current / Amperage Rating |
15 A |
| Current Rating |
15 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Single Phase |
| Voltage Rating |
125 VAC |
| Voltage Rating Description |
125 V |
Conductor Related
| Conductor Range |
#14 AWG to #12 AWG |
| Number Of Poles |
2-Pole |
| Number Of Wires |
3-Wire |
| Wire Size |
#18 AWG to #12 AWG |
Operational
| Horsepower - Maximum
|
0.5 |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - UL 94 HB or better
- Environmental - IP Suitability - IP20
- Environmental - Operating Temperatures - Maximum continuous 75 degC minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #18-12 AWG. Standed copper wire only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
|
| Temperature Rating |
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
8400 |
PRODUCT DATASHEET
Wiring HBL5969VYSpecification Sheet
