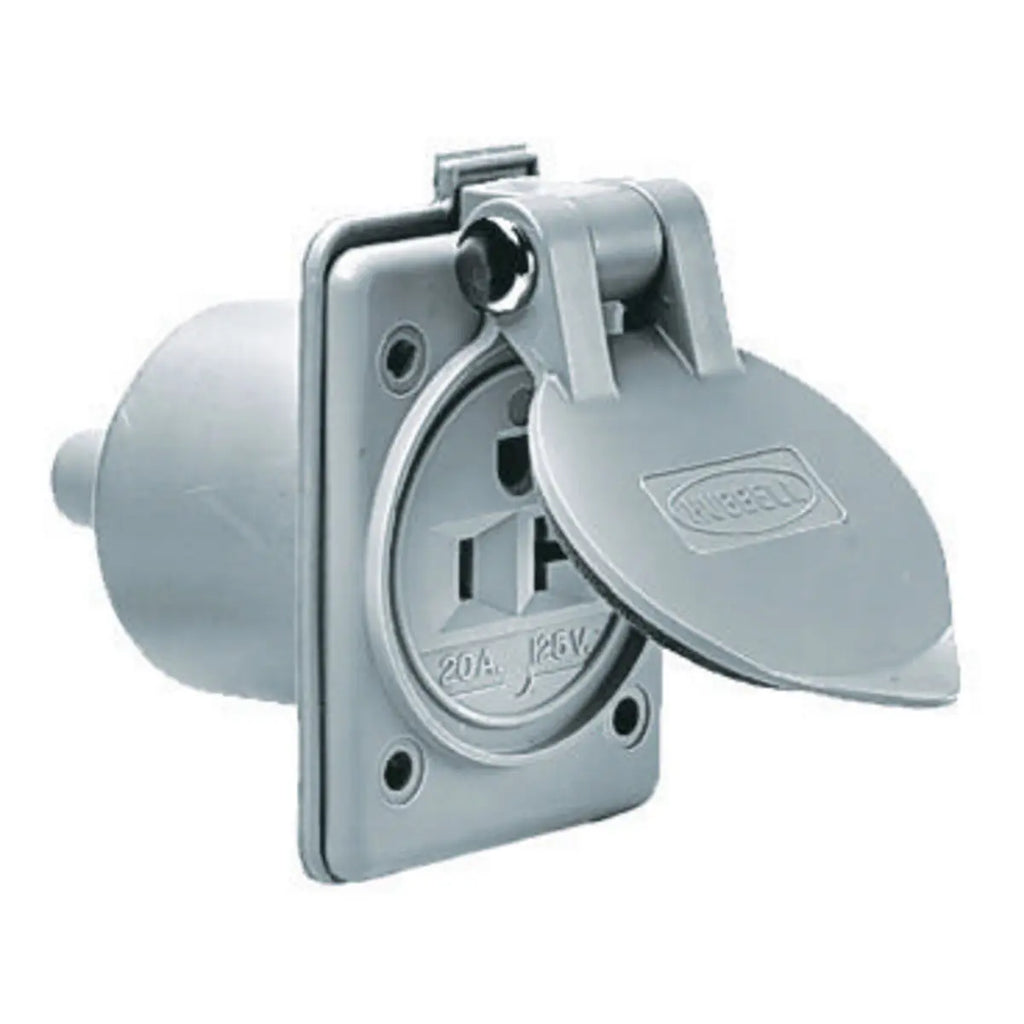

HBL61CM65 - Hubbell Wiring Device-Kellems - 20A/125V 2-Pole 3-Wire Grounding Flanged Outlet Marine Weatherproof Straight Blade Devices
Straight Blade Devices, Outlet, Flanged, Marine, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Gray, Single Pack.
- Weatherproof flip lid
- Weatherproof boot covers terminals
- Multiple drive screws
- Nickel plated brass contacts
Corrosion Resistant
GENERAL SPECIFICATIONS
| Application |
Heavy Duty |
| Catalog Number |
HBL61CM65 |
| Color |
Yellow |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Horsepower - Maximum |
0.5 |
| Item Type |
Flanged Single |
| Material - Mounting Hardware |
Screw Mounting |
| Number Of Poles |
2-Pole |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - UL 94 V-2
- Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
- Mechanical - Product Identification - Ratings are a permanent part of the device
- Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
|
| Series |
Heavy Duty Specification Grade |
| Specifications |
- Face - Nylon
- Mounting Screw - Stainless steel
- Power Contacts - .040" (1.0) Brass
- Terminal Screws - #8-32 Brass, Multiple Drive
|
| Style |
Weather Proof and Corrosion Resistant |
| Type |
Flanged Receptacle |
| UPC |
783585808673 |
Dimensions
| Dimensions |
2.68 in x 2.25 in x 2.68 in |
| Display Size |
Standard Sized Product |
| Height |
2.68 in |
| Length |
2.68 in |
| Weight |
0.25 lb |
| Width |
2.25 in
|
Electrical Ratings
| Amperage Rating |
20 A |
| Connectivity |
Side Wired Only |
| Current / Amperage Rating |
20 A |
| Current Rating |
20 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Single Phase |
| Voltage Rating |
125 VAC |
| Voltage Rating Description |
125 V |
| Wattage |
2500 W |
Conductor Related
| Number Of Poles |
2-Pole |
| Number Of Wires |
3-Wire |
| Wire Size |
#14 AWG to #10 AWG |
Operational
| Horsepower - Maximum
|
0.5 |
| Operating Temperature |
Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - UL 94 V-2
- Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
- Mechanical - Product Identification - Ratings are a permanent part of the device
- Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
|
Logistics
