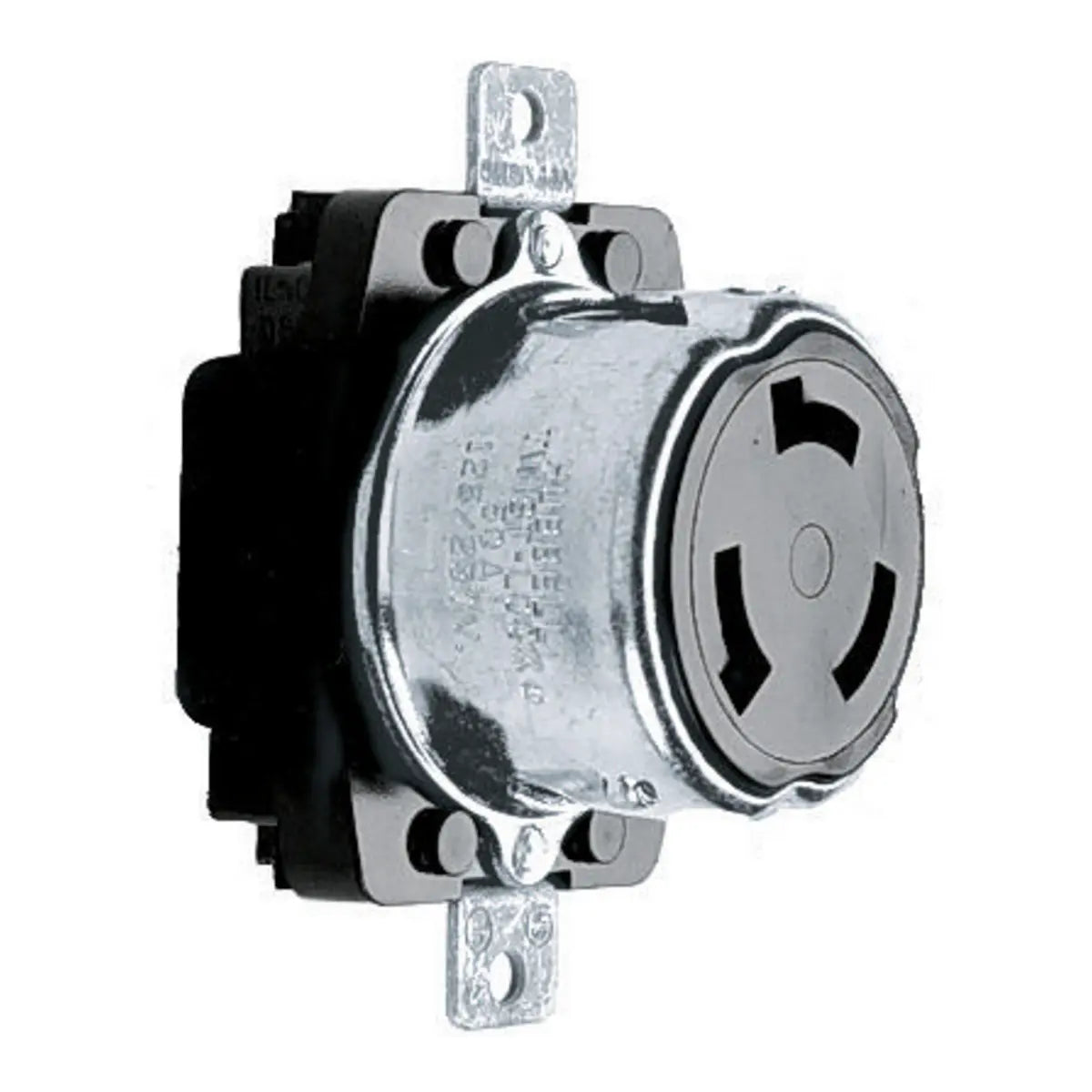

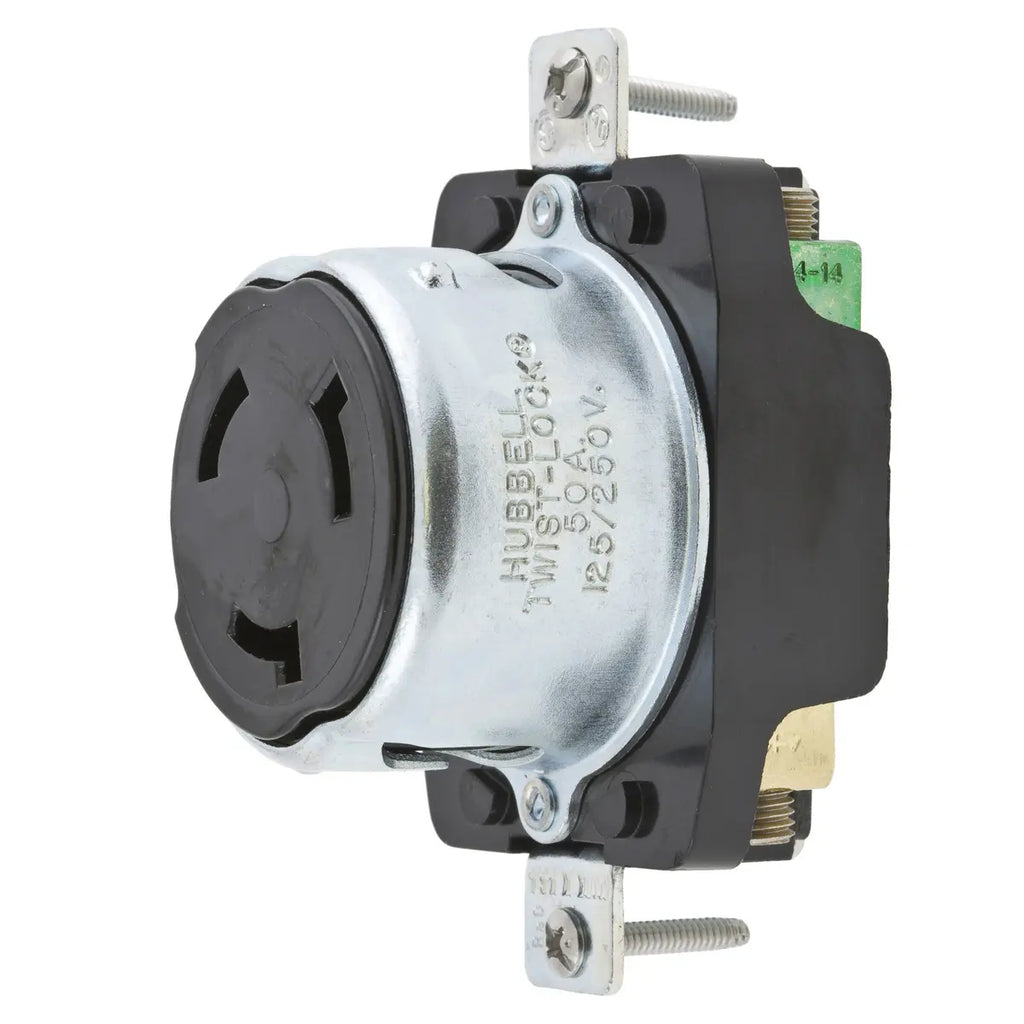

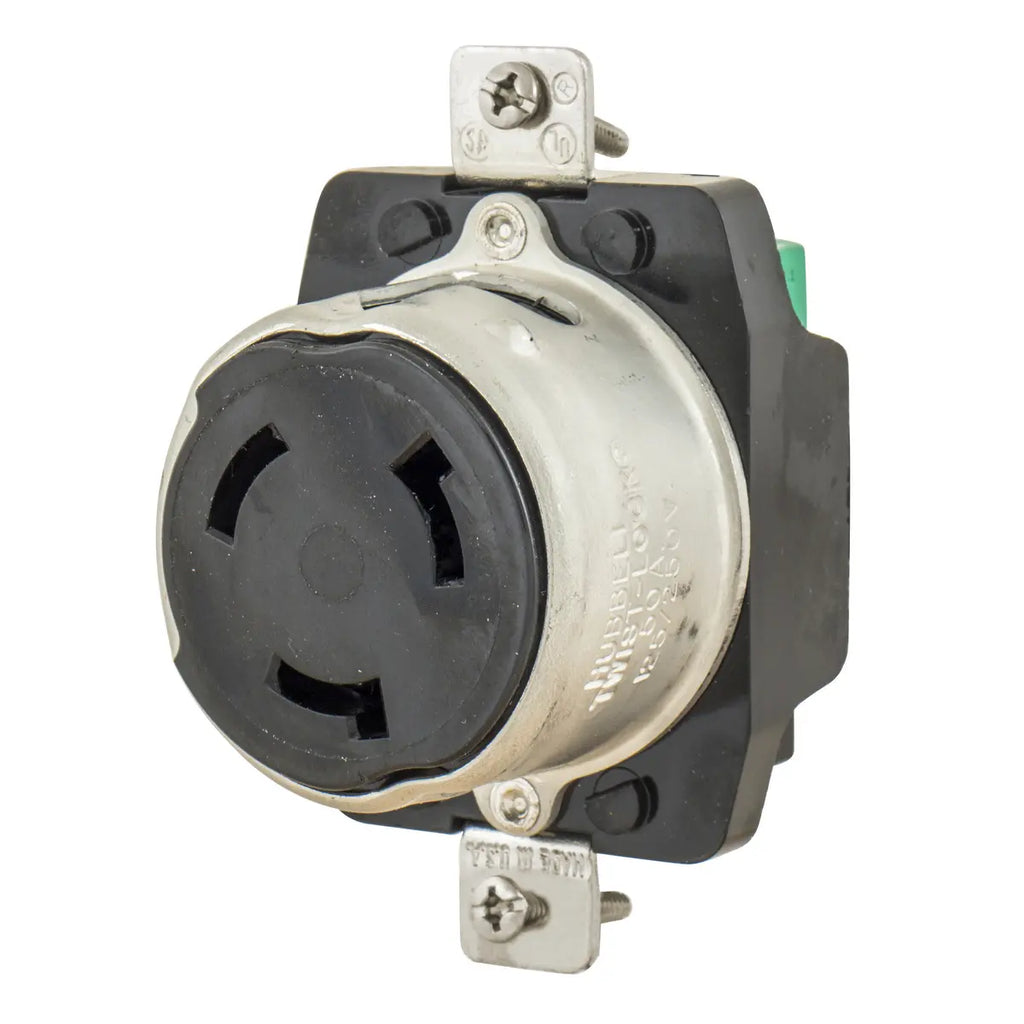

HBL63CM69 - Hubbell Wiring Device-Kellems - 50A/125/250V 3-Pole 4-Wire Grounding Receptacle Marine Twist-Lock Locking Devices
Locking Devices, Twist-Lock(R), Marine Grade, Receptacle, 50A 125/250V, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Galvanized
- Marine Grade
- Receptacle
- 50A 125/250V
Corrosion Resistant
GENERAL SPECIFICATIONS
| Application |
Marine Wiring Devices |
| Catalog Number |
HBL63CM69 |
| Color |
Yellow |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
No |
| Item Type |
Single |
| Material |
Thermoplastic |
| Material - Mounting Hardware |
Screw Mounting |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Performance |
Environmental - Moisture Resistance - IP20 Suitability |
| Specifications |
- Blade Type - Locking
- Blade Type - Locking
- Product Type - Twist-Lock(R) Receptacles
|
| UPC |
783585808741 |
Dimensions
| Display Size |
Standard Sized Product |
Electrical Ratings
| Amperage Rating |
50 A |
| Connectivity |
Screw Terminals |
| Current / Amperage Rating |
50 A |
| Current Rating |
50 A |
| Phase |
Single Phase |
| Voltage Rating |
125/250 VAC |
| Voltage Rating Description |
125/250 VAC
|
| Wattage |
12500 |
Conductor Related
| Number Of Poles |
3-Pole |
| Number Of Wires |
4-Wire Grounding |
Operational
| Performance
|
Environmental - Moisture Resistance - IP20 Suitability |
