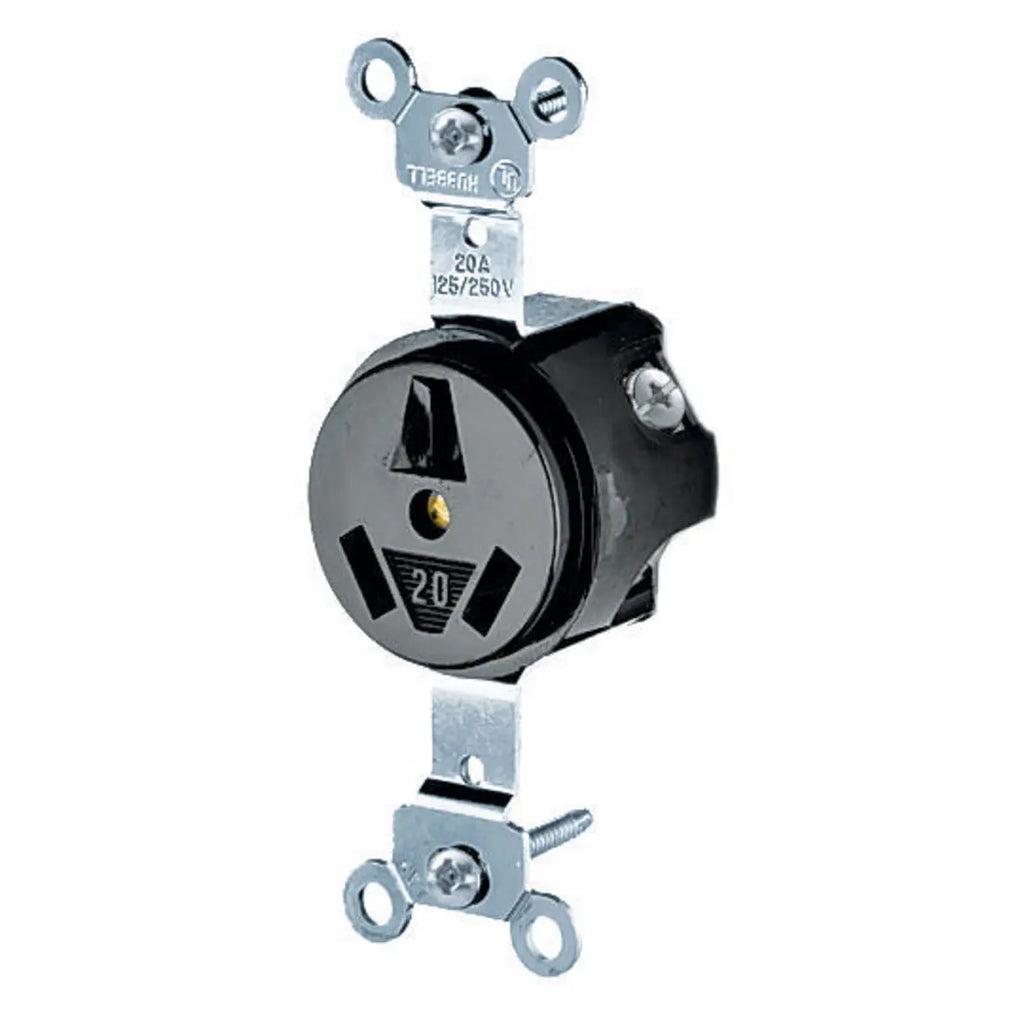

HBL6810 - Hubbell Wiring Device-Kellems - 20A/125/250V 3-Pole 3-Wire Non-Grounding Single Receptacle Industrial Straight Blade Devices
Straight Blade Devices, Receptacles, Single, Industrial Grade, 3-Pole 3-Wire Non-Grounding, 20A 125/250V, 10- 20R, Black, Single Pack.
Classic design
Standard
GENERAL SPECIFICATIONS
| Application |
Heavy Duty |
| Catalog Number |
HBL6810 |
| Color |
Black |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Horsepower - Maximum |
2 (1) |
| Item Type |
Single |
| Material - Mounting Hardware |
Screw Mounting |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - UL 94 V-1 or better
- Environmental - IP Suitability - IP20
- Environmental - Operating Temperatures - Maximum continuous 75 degC minimum -40 degC (w/o impact)
- Mechanical - Cord Accomodation - .310"-.430"(7.9-11.9)
- Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
|
| Series |
Extra Heavy Duty |
| Specifications |
- Body - Phenolic
- Contacts - Brass
- Grounding Clip - Stainless steel
- Mounting Screws - Galvalized steel
- Mounting Strap - Cold rolled steel
- Terminal Screws - Brass
|
| Type |
Single Receptacle |
| UPC |
783585014401 |
Dimensions
| Dimensions |
3.28 in x 1.39 in x 0.97 in |
| Display Size |
Standard Sized Product |
| Height |
0.97 in |
| Length |
3.28 in |
| Weight |
0.2 lb |
| Width |
1.39 in |
Electrical Ratings
| Amperage Rating |
20 A |
| Connectivity |
Back and Side Wired |
| Current / Amperage Rating |
20 A |
| Current Rating |
20 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Single Phase |
| Voltage Rating |
125/250 V |
| Voltage Rating Description |
125/250 V |
| Wattage |
5000 W |
Conductor Related
| Number Of Poles |
3-Pole |
| Number Of Wires |
3-Wire |
| Wire Size |
#14 AWG to #10 AWG |
Operational
| Horsepower - Maximum
|
2(1) |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - UL 94 V-1 or better
- Environmental - IP Suitability - IP20
- Environmental - Operating Temperatures - Maximum continuous 75 degC minimum -40 degC (w/o impact)
- Mechanical - Cord Accomodation - .310"-.430"(7.9-11.9)
- Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
|
Logistics
PRODUCT DATASHEET
Wiring HBL6810 Specification Sheet
