HBL7101C - Hubbell Wiring Device-Kellems - 20A/250V 2-Pole 2-Wire Non-Grounding Female Connector Body Twist-Lock Locking Devices

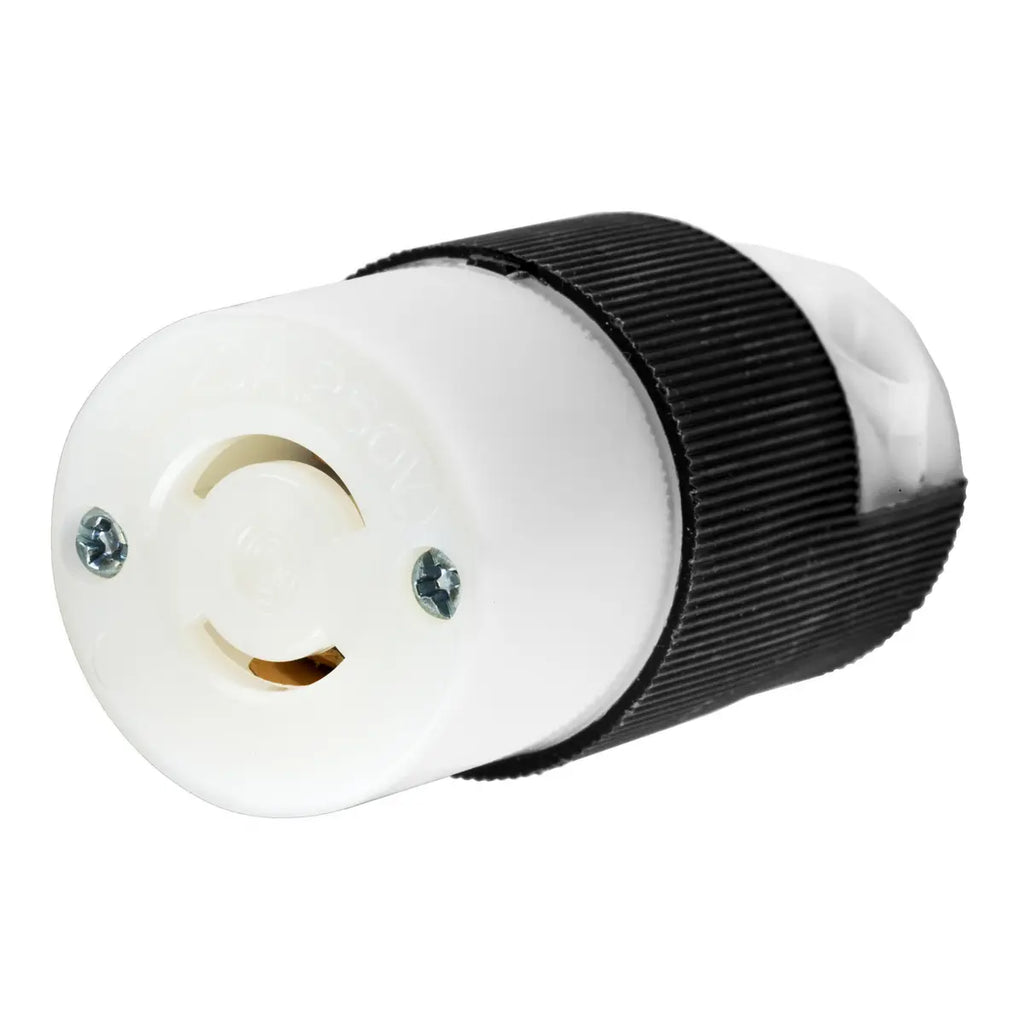

Locking Devices, Twist-Lock(R), Industrial, Female Insulgrip(R) Connector Body, 20A 250V AC, 2-Pole 2-Wire Non Grounding, NEMA L2-20R, Screw Terminal, Black and White Nylon.
- Insulated nylon construction to keep non-current carrying parts from becoming energized
- Tough ribbed nylon housing for secure gripping
- Two-part cord grip tightens with two screws for maximum retention force.
Standard Product
GENERAL SPECIFICATIONS
| Catalog Number |
HBL7101C |
| Color |
Black, White |
| Cord Range |
0.220"-0.720" (5.6-18.3 mm) |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Insulation |
Insulated Body |
| Item Type |
20A Insulgrip(R) Connector |
| Material |
Nylon |
| Material - Mounting Hardware |
Cord Mounted |
| Number Of Poles |
2-Pole |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Max 75 degC, Min -40 degC (without impact) |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75 degC, Minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #18 AWG - #10 AWG stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
| Specifications |
- Assembly Screws - Steel - zinc plated
- Body - Nylon
- Contacts - Bronze
- Terminal Clamp - Cold rolled steel - nickel plated
- Terminal Retainer - Clear polycarbonate
- Terminal Screw - Brass
|
| Temperature Rating |
Max 75 degC; Min -40 degC (w/o impact), -25 degC (with impact) |
| Type |
Connector Body |
| UPC |
783585177007 |
Dimensions
| Dimensions |
1.53 in x 1.53 in x 2.78 in |
| Display Size |
Standard |
| Height |
2.78 in |
| Length |
1.53 in |
| Weight |
0.15 lb |
| Width |
1.53 in |
Electrical Ratings
| Amperage Rating |
20 A |
| Connectivity |
Pressure Terminal Screws |
| Current / Amperage Rating |
20 A |
| Current Rating |
20 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Voltage Rating |
250 VAC |
| Voltage Rating Description |
250 VAC |
Conductor Related
| Cable Range |
0.230 - 0.720 in |
| Number Of Poles |
2-Pole |
| Number Of Wires |
2-Wire |
| Wire Size |
#18 AWG to #10 AWG |
Operational
| Operating Temperature
|
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75 degC, Minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #18 AWG - #10 AWG stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
| Temperature Rating |
Maximum Continuous: 75 deg C; Minimum Continuous: -40 deg C w/o impact, -25 deg with impact. |
