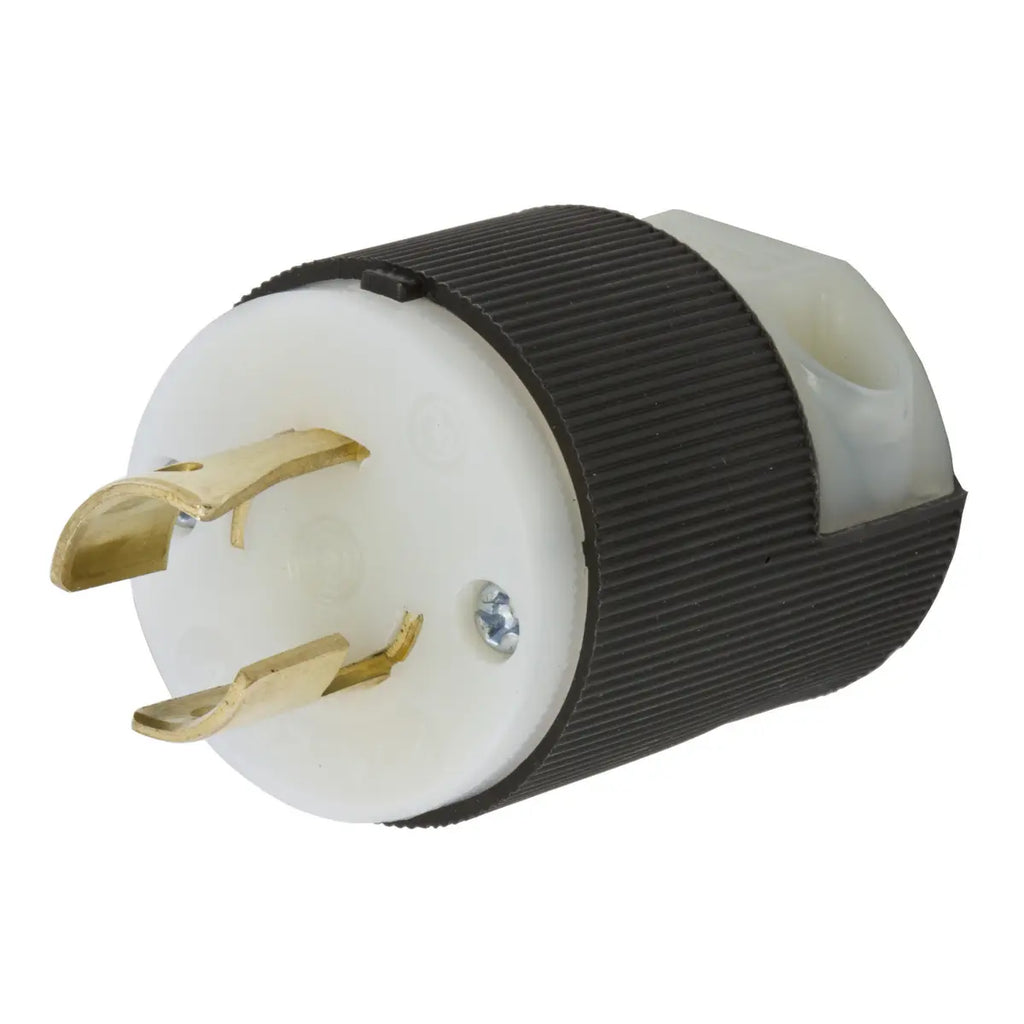

HBL7102C - Hubbell Wiring Device-Kellems - 20A/250V 2-Pole 2-Wire Non-Grounding Male Plug Twist-Lock Locking Devices
Locking Devices, Twist-Lock(R), Industrial, Male Insulgrip(R) Plug, 20A 250V, 2-Pole 2-Wire Non-Grounding, NEMA L2-20P, Screw Terminal, Black and White Nylon, Polarized.
- Integral dust shield protects wiring chamber from dust or contaminants.
- Self-threading screws specially designed for secure assembly
- Wiring chambers separate and positively insulate conductors and promote easy inspection
GENERAL SPECIFICATIONS
| Catalog Number |
HBL7102C |
| Color |
Black, White |
| Cord Range |
0.230"-0.720" (5.6-18.3 mm) |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Item Type |
20A Male Non-Grounding Insulgrip(R) Plug |
| Material |
Nylon |
| Mounting Hardware |
Cord Mounted |
| Number of Poles |
2-Pole |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Max 75 degC / Min -40 degC (without Impact) |
| Specifications |
- Assembly Screws - Steel - zinc plated
- Body - Nylon
- Contacts - Bronze
- Terminal Clamp - Cold rolled steel - nickel plated
- Terminal Retainer - Clear polycarbonate
- Terminal Screw - Brass
|
| Type |
Plugs |
| UPC |
783585177052 |
Dimensions
| Dimensions |
1.53 in x 1.53 in x 1.97 in |
| Height |
1.97 in |
| Length |
1.53 in |
| Weight |
0.15 lb |
| Width |
1.53 in |
Electrical Ratings
| Amperage Rating |
20 A |
| Connectivity |
Pressure Terminal Screws |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Single Phase |
| Voltage Rating |
250 VAC |
Conductor Related
| Cable Range |
0.220 - 0.720 in |
| Cord Type |
All Listed Portables |
| Number Of Wires |
2-Wire |
| Wire Size |
#16 AWG to #8 AWG |
