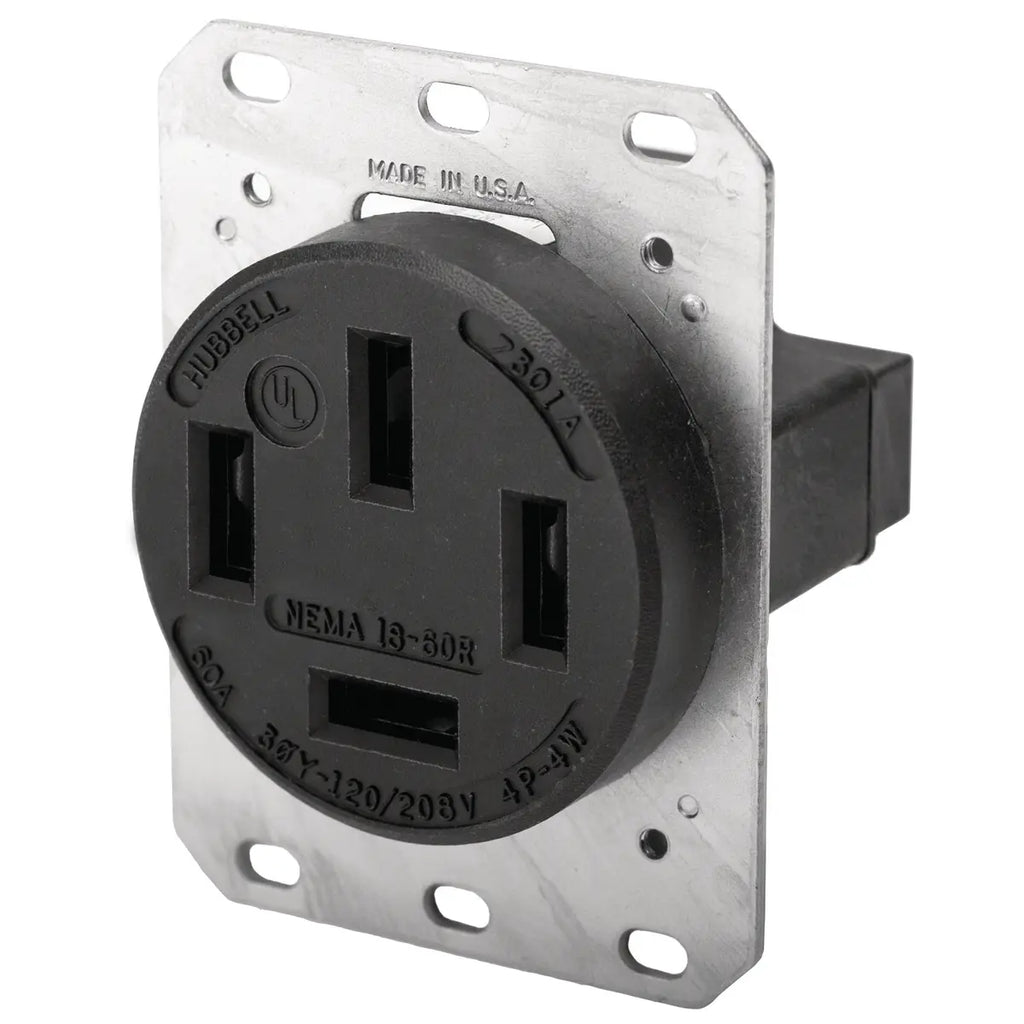

HBL7301A - Hubbell Wiring Device-Kellems - 60A/120/208V 3-Phase 4-Pole 4-Wire Non-Grounding Single Receptacle Industrial Straight Blade Devices
Straight Blade Devices, Receptacles, Single, Industrial Grade, 4- Pole 4-Wire Non-Grounding, 60A 3 Phase 120/208V AC, 18-60R, Black, Single Pack.
- Catalog number, ratings and certifications molded in face
- Sequenced contacts assure protection
- One piece design power and ground contacts
Standard
GENERAL SPECIFICATIONS
| Application |
Heavy Duty |
| Catalog Number |
HBL7301A |
| Color |
Black |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Horsepower - Maximum |
7.5 |
| Item Type |
Single |
| Material |
Thermoplastic |
| Material - Mounting Hardware |
Screw Mounting |
| Number Of Poles |
4-Pole |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - UL 94 HB
- Environmental - IP Suitability - IP20
- Environmental - Operating Temperatures - Maximum continuous 75 degC, minimum -40 degC (w/o impact)
- Mechanical - Product Identification - Ratings are a permanent part of the device
- Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
|
| Specifications |
- Box Terminals - Copper
- Contacts - Brass
- Ground Shunt - Brass
- Housing - Reinforced Thermoplastic Polyester
- Mounting Plate - .062 in. (1.5) Pre-Plated Steel
|
| UPC |
783585015095 |
Dimensions
| Display Size |
Standard Sized Product |
| Length |
3.28 in |
| Weight |
0.55 lb |
| Width |
1.81 in |
Electrical Ratings
| Amperage Rating |
60 A |
| Connectivity |
Back and Side Wired Screw Terminals |
| Current / Amperage Rating |
60 A |
| Current Rating |
60 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Three Phase |
| Voltage Rating |
120/208 VAC |
| Voltage Rating Description |
120/208 VAC |
| Wattage |
12480W |
Conductor Related
| Number Of Poles |
4-Pole |
| Number Of Wires |
4-Wire |
| Wire Size |
#12 AWG to #4 AWG |
Operational
|
Horsepower - Maximum |
7.5 |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - UL 94 HB
- Environmental - IP Suitability - IP20
- Environmental - Operating Temperatures - Maximum continuous 75 degC, minimum -40 degC (w/o impact)
- Mechanical - Product Identification - Ratings are a permanent part of the device
- Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
|
Logistics
| Carton Quantity |
5 |
| Pallet Quantity |
1860 |
PRODUCT DATASHEET
Wiring HBL7301A Specification Sheet
